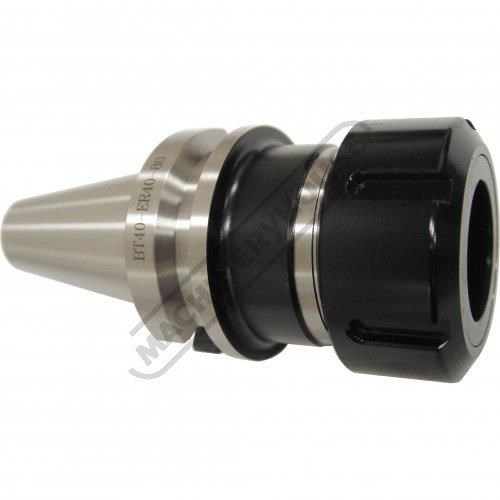

TOOLMASTER BT40 X ER40-80

BT40 x ER40-80 Collet Chuck Ø3-Ø26mm Range 15,000rpm Speed Rating

TOOLMASTER BT40 x ER40-80 Collet Chuck Ø3-Ø26mm Range 15,000rpm Speed Rating
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T226

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features:
Precision ground
All ER40 collet chucks are fitted with ball bearing nuts
Manufactured to MAS403BT40 standard
M16 Pull Stud thread
80mm extension from the gauge line
Locking spanner not included


Specifications:
ORDER CODE: T226
MODEL: BT40 x ER40-80
Speed Rating (rpm): 15,000
Taper (BT): BT40
Capacity (mm): 3 - 26
L (mm): 80
D (mm): 63
Collet Type (ER): ER40
Nett Weight (kg): 1.8


To Purchase Online Please Visit The Machineryhouse Website & Search For 'T226'
