TOOLMASTER BT40 X ER20-100

BT40 x ER20-100 Collet Chuck Ø2-Ø13mm Range 15,000rpm Speed Rating

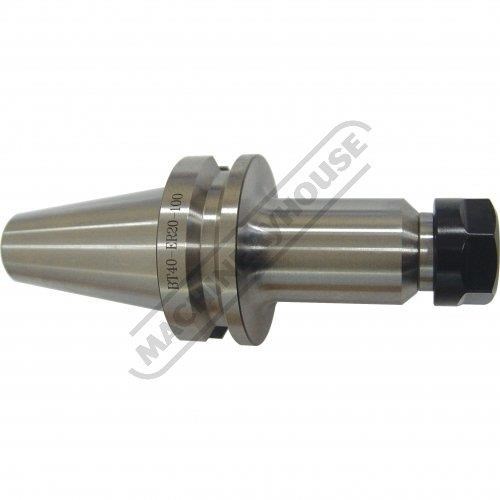

TOOLMASTER BT40 x ER20-100 Collet Chuck Ø2-Ø13mm Range 15,000rpm Speed Rating
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T209

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features:
Precision ground
Manufactured to MAS403BT40 standard
M16 Pull Stud thread
100mm extension from the gauge line
Locking spanner not included


Specifications:
ORDER CODE: T209
MODEL: BT40 x ER20-100
Speed Rating (rpm): 15,000
Taper (BT): BT40
Capacity (mm): 2 - 13
L (mm): 100
D (mm): 34
Collet Type (ER): ER20
Nett Weight (kg): 1.7


To Purchase Online Please Visit The Machineryhouse Website & Search For 'T209'
