2024 STEELMASTER INDUSTRIAL SM-HBS620SAM - SEMI AUTO HYDRAULIC VICE 0~60 DEGREE DOUBLE MITRE CUTTING
Features
Title | 2024 STEELMASTER INDUSTRIAL SM-HBS620SAM - SEMI AUTO HYDRAULIC VICE 0~60 DEGREE DOUBLE MITRE CUTTING |
Type | Engineering - Fabrication |
Sub Type | Cutting Equipment |
Class | Band Saw |
Make | STEELMASTER INDUSTRIAL |
Model | SM-HBS620SAM - SEMI AUTO HYDRAULIC VICE |
Series | 0~60 DEGREE DOUBLE MITRE CUTTING |
Year | 2024 |
Sale Price | 24850 $27,335 |
Listing Type | New |
Stock Number | 15-0344 |
RefCode | TA964410 |
Description
Description.

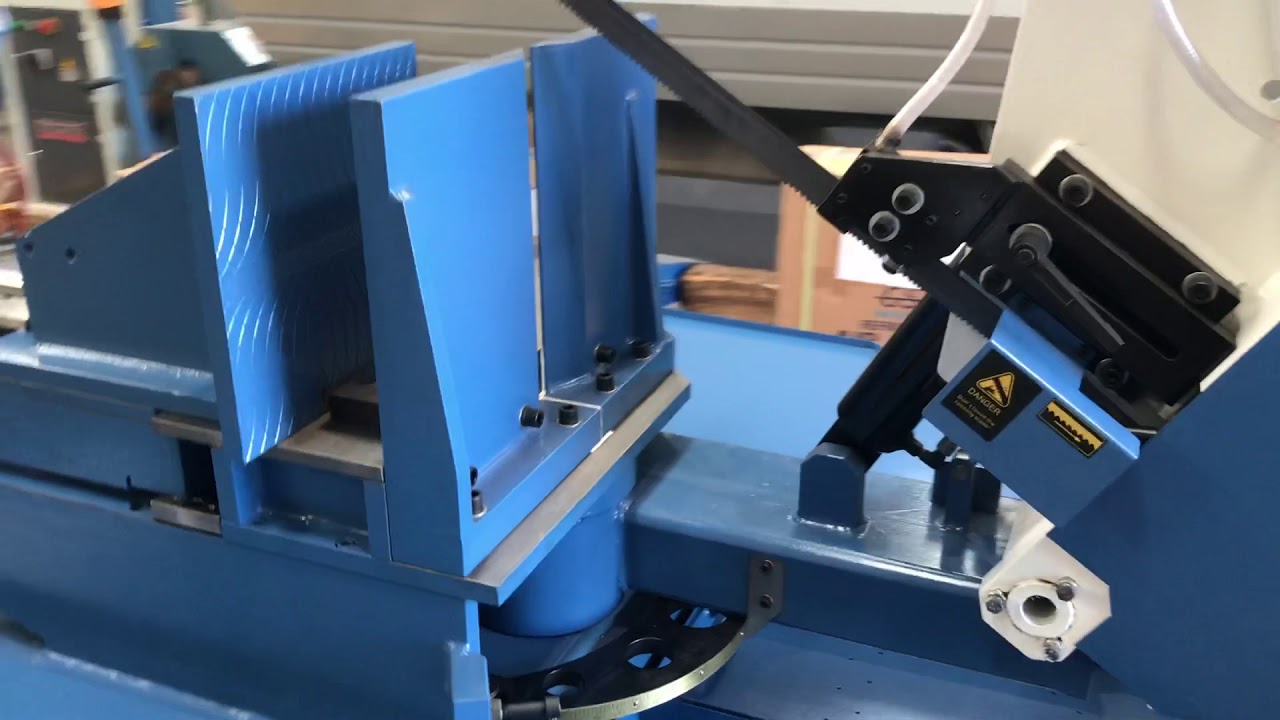

This large capacity semi automatic full featured Metal-Cutting Bandsaw includes a swivel head to cut miters from -45 degrees to +60 degrees, hydraulic clamping, variable speed control, hydraulic feed control and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else. If your a Metalworking jobbing or a production shop you should take a good look at this!
Features.
large 620 mm x 440 mm capacity.
large 450 mm round capacity
durable 34 mm wide blade
heavy duty 3 phase motor
strong construction design
tungsten carbide blade guides
coolant system and twin swarf brushes for increased efficiency
auto cut-off switch
variable hydraulic down feed & auto return
centralised control panel
work light fitted standard
blade break detection system
digital angle display setting
laser line cutting feature
twin support arms
3.75 kw 415 Volt operation
variable speed 20-90 MPM
CE compliant
Technical Data
450mm round capacity
620mm x 450mm rectangular capacity.
mitre cutting range - 0 ~ 60 degrees
blade size: 5200mm x 34mm x 1.1mm
table work height - 800mm
dimensions: 2500mm x 1100mm x 1500mm
weight: 1450Kg
power: 1450Kw 415V
Optional Accessories
Heavy Duty Industrial Built Conveyors as follows
620mm x Wide x 500mm Long With Side Material Safety Guides - Quote 15+0274 (Conveyor Roller Height 790mm)
620mm x Wide x 1500mm Long With Side Material Safety Guides - Quote 15+0198
620mm x Wide x 2000mm Long With Side Material Safety Guides - Quote 15+0160
Blades to suit this machine are as follows:
5200 x 34 5-8 tpi Bandsaw Blade Bi Metal.
5200 x 34 6-10 tpi Bandsaw Blade Bi Metal.
5200 x 34 8-12 tpi Bandsaw Blade Bi Metal.
Offering the widest range of quality metal cutting bandsaws under one roof for delivery Australia wide
Cold Saws, Mitre cutting bandsaws, semi hydraulic bandsaws, twin column bandsaws, auto feed bandsaws, large capacity bandsaws we have them all including spare parts, quality cutting blades, coolants and more
If you cant find what youre looking for call us on or look online www.steelmastermachinery.com.au
Servicing the Industrial Metalworking Industry since 1997
We have many more items available than listed here.
Asset offer a wide variety of metalworking machinery, spare parts and accessories to suit our range
Industries service range from Engineering, Metalworking Fabrication & Sheetmetal Shops Australia Wide.
Also offering national delivery on metalworking bandsaw & cold saw blades, Punch & Shear Tooling, Pressbrake Tooling, Industrial Conveyors and much more.
We can also offer experienced service technicians in house or onsite to assist Please contact us for further information.
Visit our website, or call us with your requirements
Tell us what you are after, chances are we have it already.
For More information on our machine, go to or contact a Steelmaster industrial Rep
MAKE YOUR NEXT PURCHASE AN "ASSET" TO YOUR COMPANY!
Please contact us for more information.
## STEELMASTER INDUSTRIAL OFFER A COMPLETE RANGE OF NEW & USED METALWORKING MACHINERY FOR SALE AUSTRALIA WIDE ##
PRE-COMMISSIONED & SHIPPED AUSTRALIA WIDE
