SNORKEL S9033RT

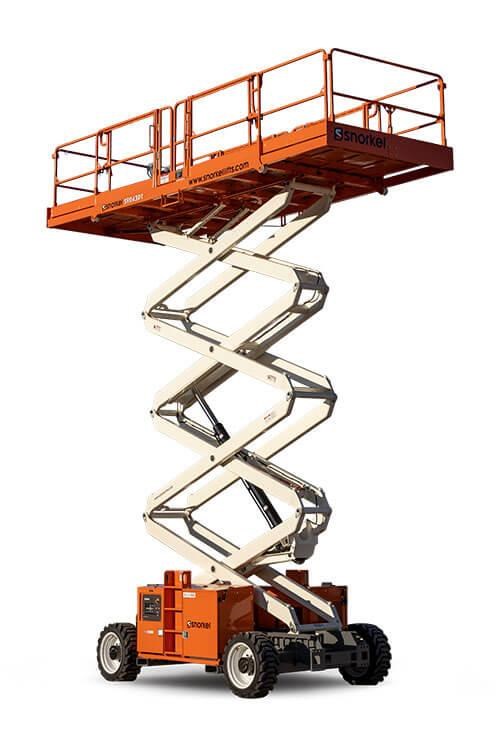

Snorkel S9033RT Rough Terrain Scissor Lift Max. Working Height: 11.8m Overall Width: 2.28m Platform Capacity: 1,134kg Weight (without outriggers): 6,759kg The new Snorkel S9033RT high capacity rough terrain scissor lift measures up. A spacious roll-out deck extension with superb lift capacity makes it easy to work at height. Excellent ground clearance, a tight inside turning radius and powerful 4-wheel drive tackle rough terrain with ease. STANDARD FEATURES 4 wheel drive Single powered deck extension Foam filled tires Proportional controls Power line to platform Platform overload system Drive motion alarm Descent alarm Fold-down guardrails Flashing amber light (x2) Locking, oscillating axle Hour meter & on-board diagnostics display Manual lowering valve Flashing amber light (x2) Dual lanyard attachment points 2 years parts & labor, 5 year structural warranty *whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling. Specifications: Max Working Height: 11.8m Max Platform Height: 9.8m Platform Size (stowed): 3.58m x 2.28m Platform Size (single deck extended): 4.95m x 2.28m Platform Size (dual deck extended): 6.7m x 2.28m Extension Deck Length: 1.44m Overall Width: 2.28m Overall Length (without outriggers): 4.08m Overall Length (with outriggers): 4.77m Stowed Height: 2.97m Min Height (guardrails folded): 1.98m Ground Clearance: 274mm Platform Capacity (SWL): 1,134kg Max Drive Height: 9.75m Max Wind Speed: 12.5m/s Max Drive Speed (stowed): 6.7km/h Max Drive Speed (elevated): 0.8km/h Raise/Lower Time: 45/30 seconds Gradeability: 50% Max Stabilizer Leveling (front to rear): 7° Max Stabilizer Leveling (side to side): 12° Inside Turning Radius: 2.03m Outside Turning Radius: 5.28m Tyres: 12 x 33 foam filled Controls: Proportional joystick Drive System: 4 wheel drive Power Source: Kubota diesel Weight (without outriggers): 6,759kg Weight (with outriggers): 7,401kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
