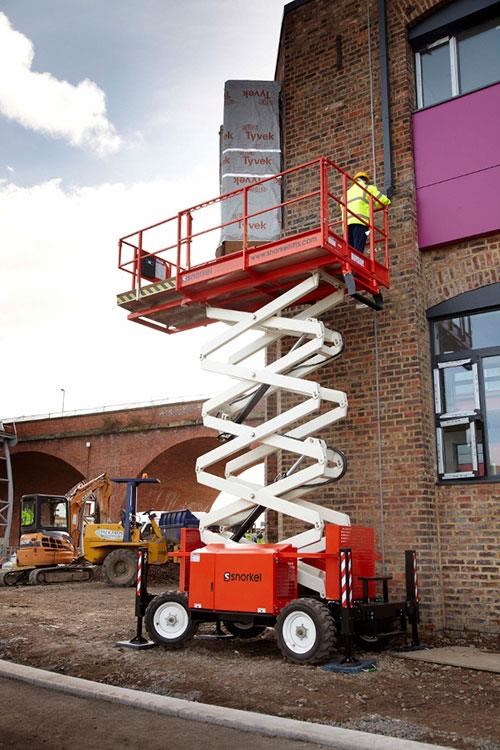

SNORKEL S3370RT

Snorkel S3370RT Compact Rough Terrain Scissor Lift, Excellent 4WD Performance! Max. Working Height: 12.0m Overall Width: 1.8m Platform Capacity: 454kg Weight: 3,620kg The Snorkel S3370RT is a compact rough terrain scissor lift which delivers excellent 4 wheel drive performance from compact dimensions. Features a roll-out deck extension, high grip types and auto-level outriggers as standard. STANDARD FEATURES 4 wheel drive Roll-out deck extension 4 hydraulic stabilizers with automatic leveling Non-marking foam filled tires Proportional controls Power line to platform Platform overload system Drive motion alarm Descent alarm Fold-down guardrails Flashing amber light (x2) Oscillating axle Hour meter & on-board diagnostics display Manual lowering valve Dual lanyard attachment points 2 years parts & labor, 5 year structural warranty Specifications Max Working Height: 12.0m Max Platform Height: 10.0m Platform Size (Stowed): 1.6m x 2.8m Platform Size (Extended): 1.6m x 4.0m Extension Deck Length: 1.2m Overall Width: 1.8m Overall Length: 3.4m Stowed Height: 2.7m Min Height (Guardrails Folded): 2.0m Ground Clearance: 330mm Platform Capacity (SWL): 454kg Max Drive Height: 10.0m Max Wind Speed: 12.5m/s Max Drive Speed (Stowed): 4.5 km/h Max Drive Speed (Elevated): 0.3 km/h Raise/Lower Time: 50/60 seconds Gradeability: 35% Max Outrigger Levelling (Front to Rear): 6° Max Outrigger Levelling (Side to Side): 10° Inside Turning Radius: 2.7m Outside Turning Radius: 5.0m Tyres: 27 x 10.5 - 15 non-marking Controls: Proportional joystick Drive System: 4 wheel drive Power Source: Kubota D-902 water-cooled diesel 22.5hp Tier 4 Final Weight: 3,620kg With 20+ years of experience, Equipment Sales Australia offers top-quality construction equipment at competitive prices. We provide expert advice, reliable brands, and a network of service providers to ensure long-term performance. Contact us today for the best solutions!
