Contact Seller
Features
| Title | SICAR S630A THICKNESSER |
| Type | Engineering - Fabrication |
| Sub Type | Planer - Thicknessers |
| Make | SICAR |
| Model | S630A THICKNESSER |
| Sale Price | $10,000 +GST |
| Listing Type | Used |
| Stock Number | P&E 4244 |
| RefCode | TA1286284 |
Description

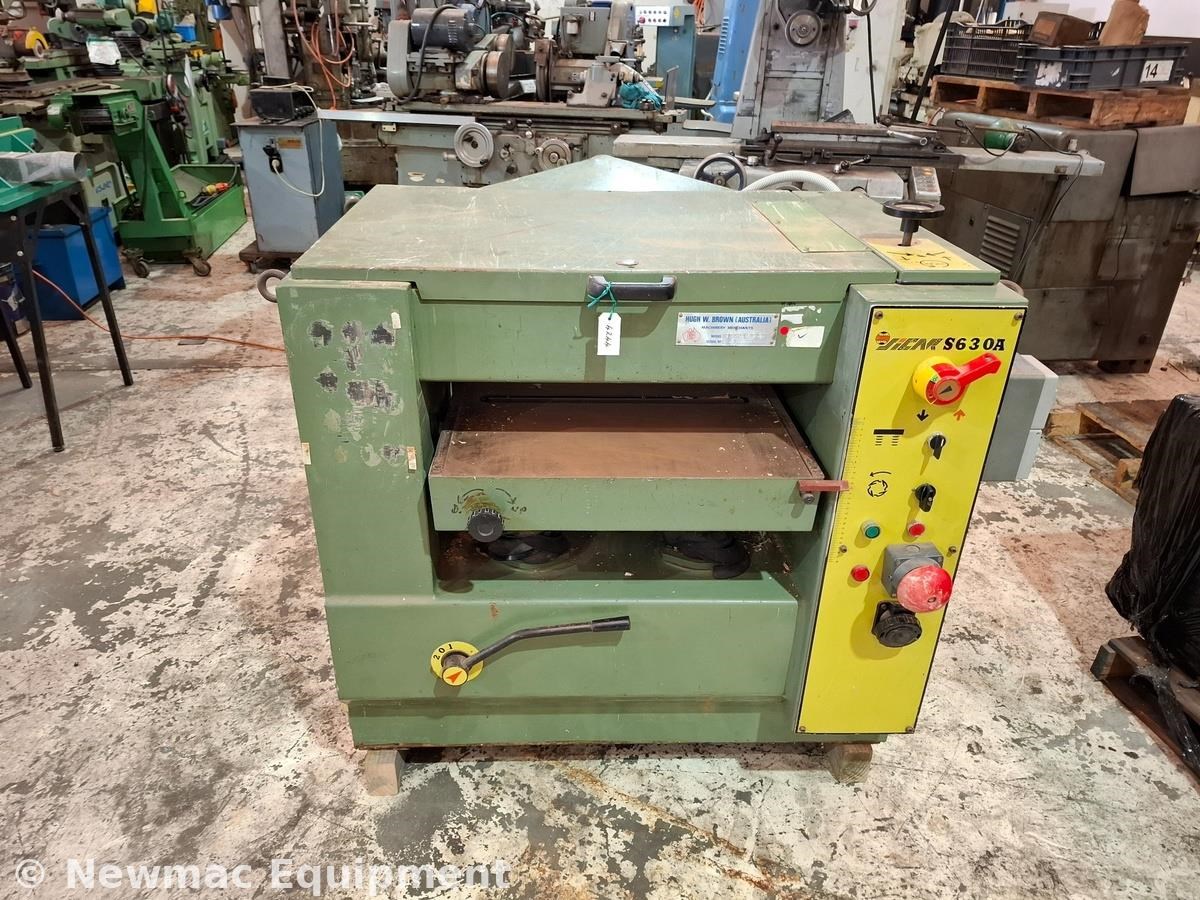

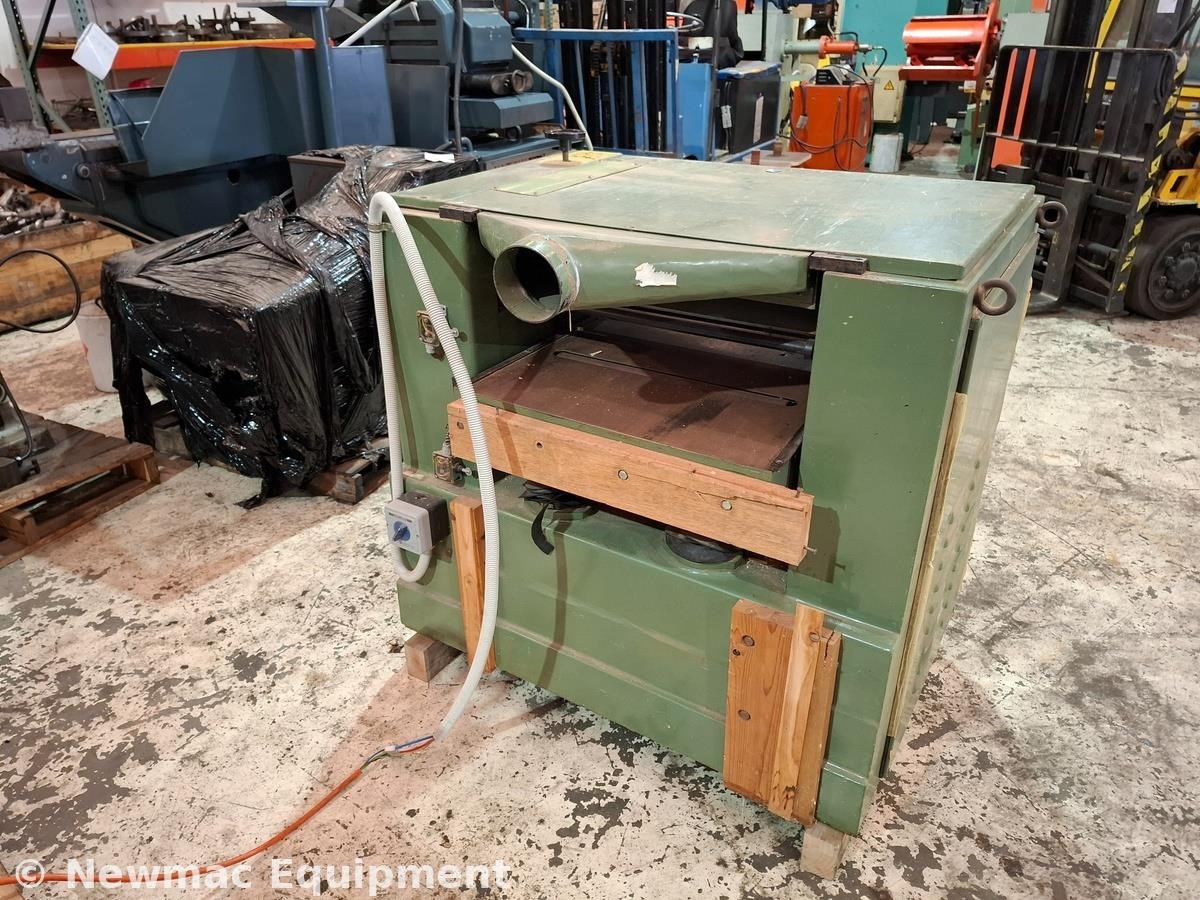

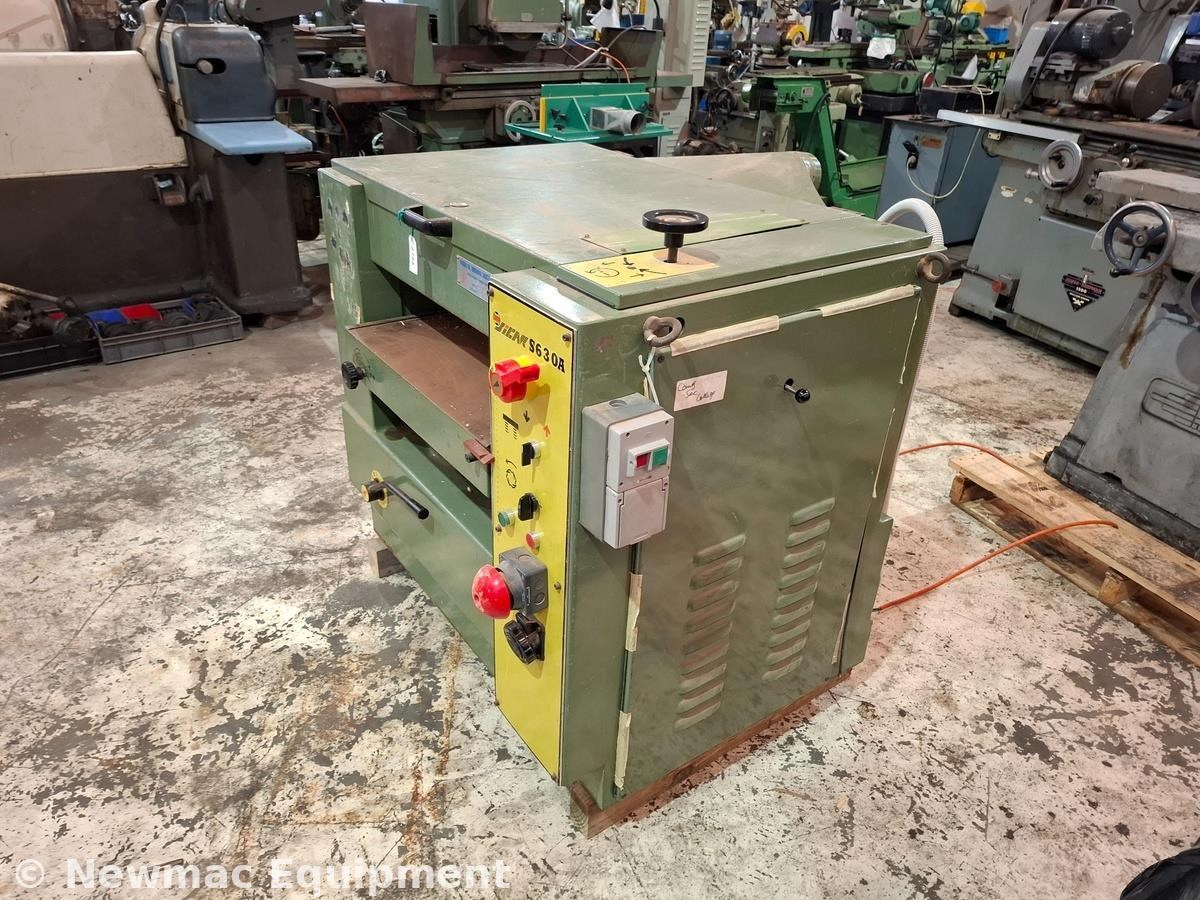

We have a high-quality, used Italian-made Sicar S630A Thicknesser in good condition for sale.
Designed for accurate planing of wide boards and production work, this machine features cast-iron tables and a robust feed system ideal for cabinet shops, joineries, and schools needing a consistent finish and easy setup.

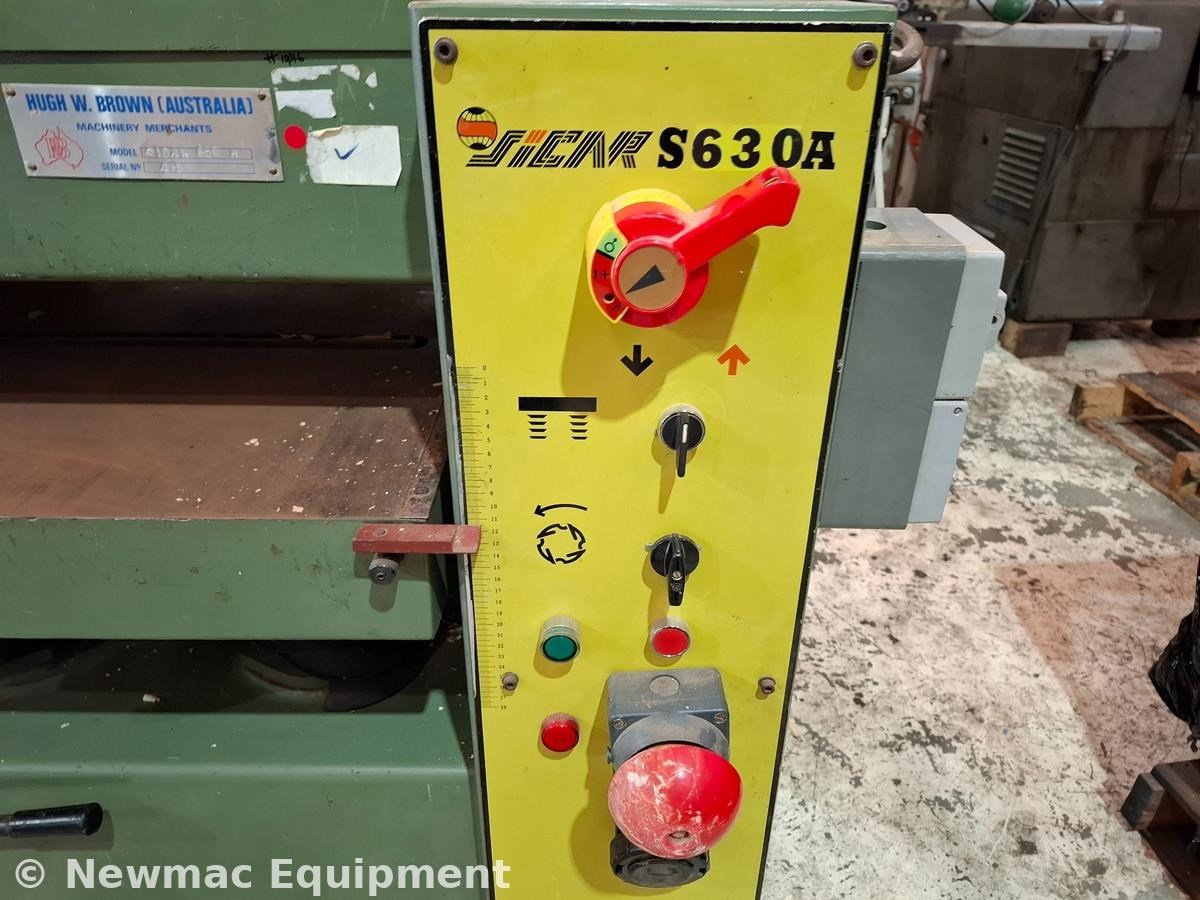

Control Overview What Does What
Feed speed selector (lever, lower left side panel): two-speed mechanical gearbox
Slow: for finer finish and difficult grain
Fast: for higher throughput on softwoods/straight grain
(Always change speeds with the machine stopped)
Thickness scale (left of mouth): shows the table-to-cutter distance (finished thickness), with red pointer

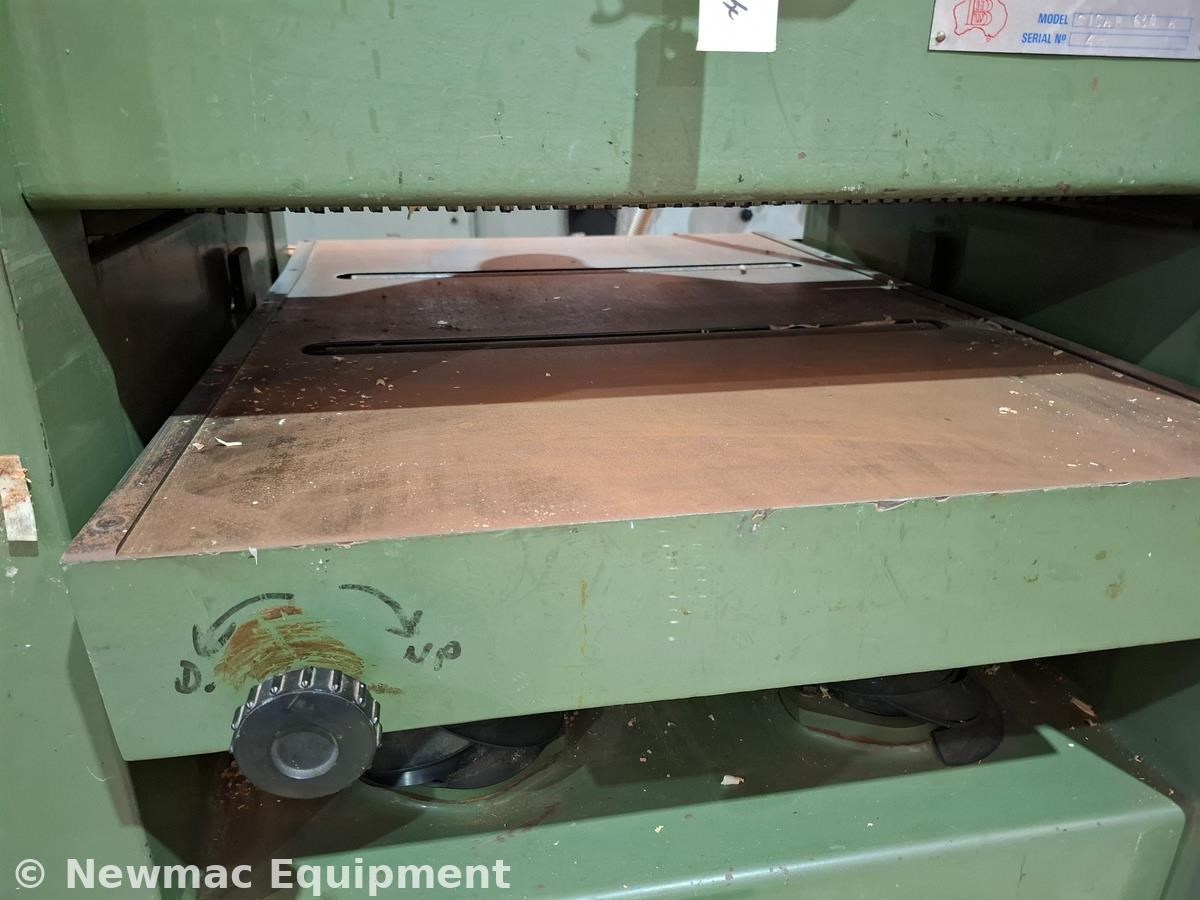

Table raise/lower (rocker switch ? / ? on front panel): powered rise/fall of the thicknessing table for fine setting
Indexed red selector (top of panel): quick reference dial to repeat common settings. Works with the raise/lower switch as a guide not a digital readout
Main motor controls:
Green = Start
Red = Stop
Emergency stop (red mushroom, lower front panel): latches power off; twist to release before restarting
Main isolator (black rotary switch, lower front panel): master on/off for the whole machine
Specifications
Make/Model: Sicar S630A Thicknesser (Italy)
Maximum planing width: 630 mm
Maximum workpiece height: up to ~300 mm (typical for this class)
Table length: ~1,0001,100 mm (cast iron)

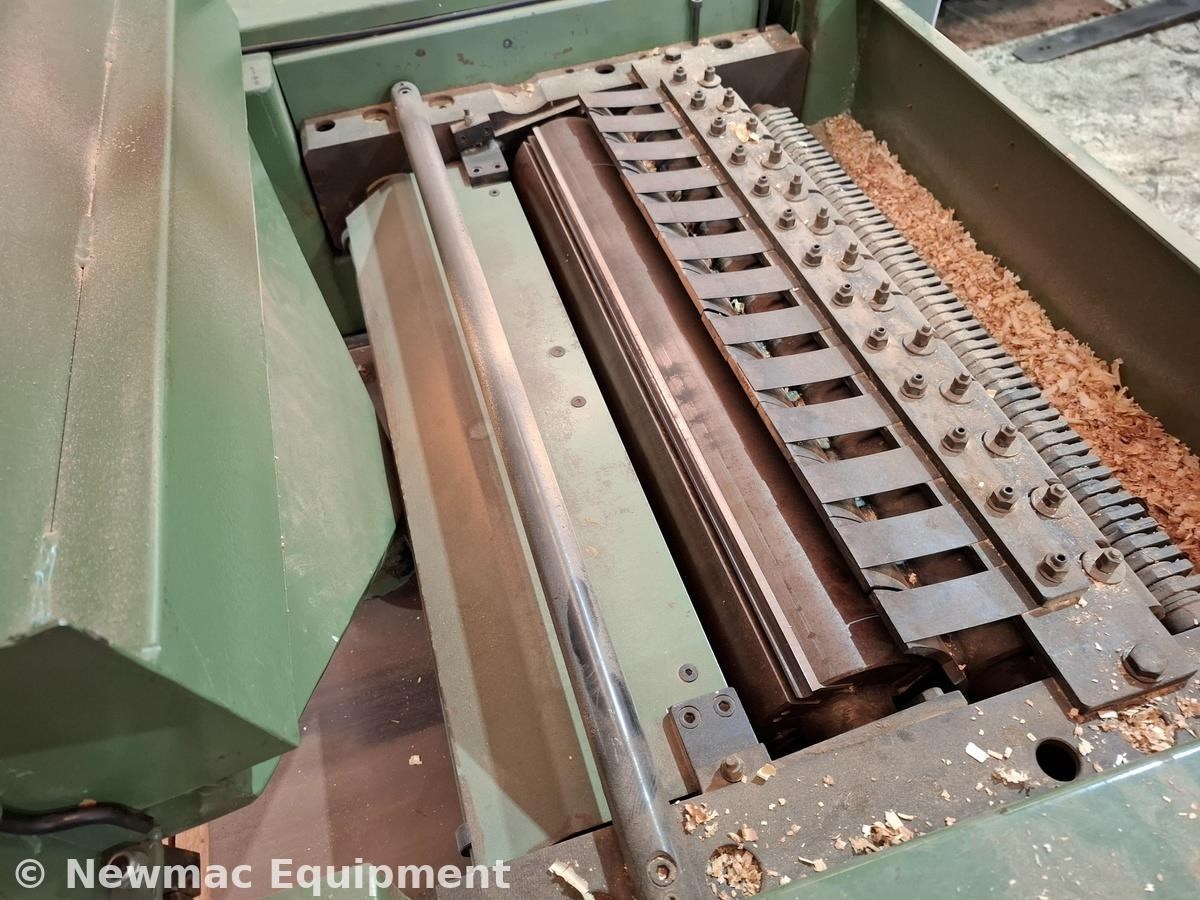

Cutterblock: 4-knife, HSS (straight)
Feed speeds: two mechanical speeds (approx. 6 & 12 m/min, model-dependent)
Main motor: approx. 7.59 kW (1012 HP), 415 V three-phase
Feed/raise motors: separate drives for feed rollers and powered table lift
Construction: cast-iron tables, heavy steel cabinet
Overall Dimensions: 1250mm x 1100mm x 1150mm high
Approx. weight: 1,200 kg
Controls: purely manual / electro-mechanical (no PLC)
Note: Specs are typical for the S630A series and may vary by year/options. Figures can be confirmed on request.
Inspection & Availability
Youre welcome to inspect this thicknesser at our Bayswater North premises during business hours. A run-up and thicknessing demonstration can be provided on request.
Business hours:
MonThu 8:30 am 4:45 pm
Fri 8:30 am 3:00 pm
Closed weekends & public holidays
We recommend customers pay us a visit to inspect machinery, where we are happy to test run machinery in our warehouse, that way it gives you peace of mind that the machine will do your job before purchase.
This milling machine is in our warehouse so please feel free to call us for more information & price or pop in to inspect the machine at your convenience.
We are always interested in purchasing metalworking machinery & surplus equipment. Should you be looking at Downsizing, Relocating, Closing Down or having machinery surplus to requirements, we would appreciate the opportunity to assist in any way we can.
We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.
