Contact Seller
Features
| Title | SEIWA SHG-16 HOB BLADE GROOVE GRINDING MACHINE |
| Type | Engineering - Fabrication |
| Sub Type | Grinders |
| Make | SEIWA |
| Model | SHG-16 HOB BLADE GROOVE GRINDING MACHINE |
| Sale Price | $6,000 +GST |
| Listing Type | Used |
| Stock Number | P&E 4233 |
| RefCode | TA1284164 |
Description

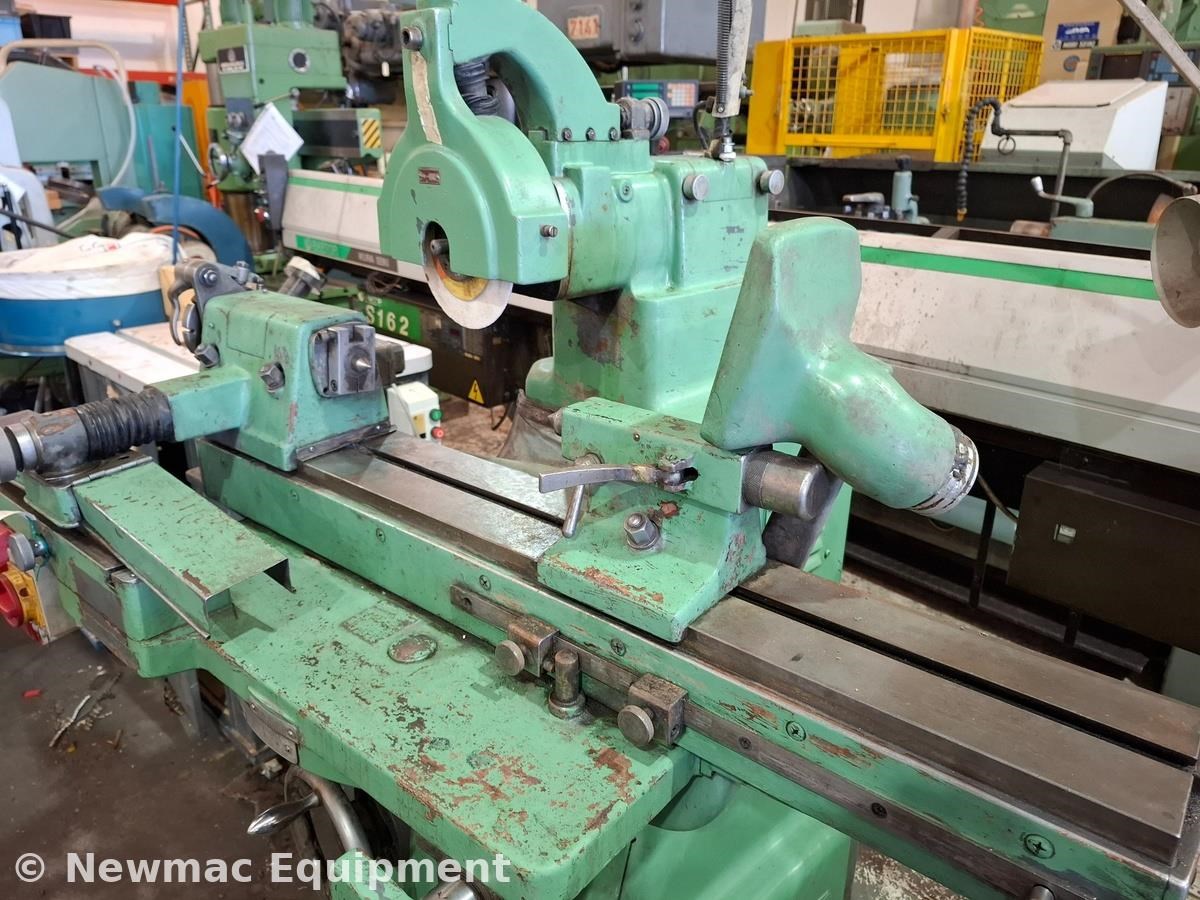

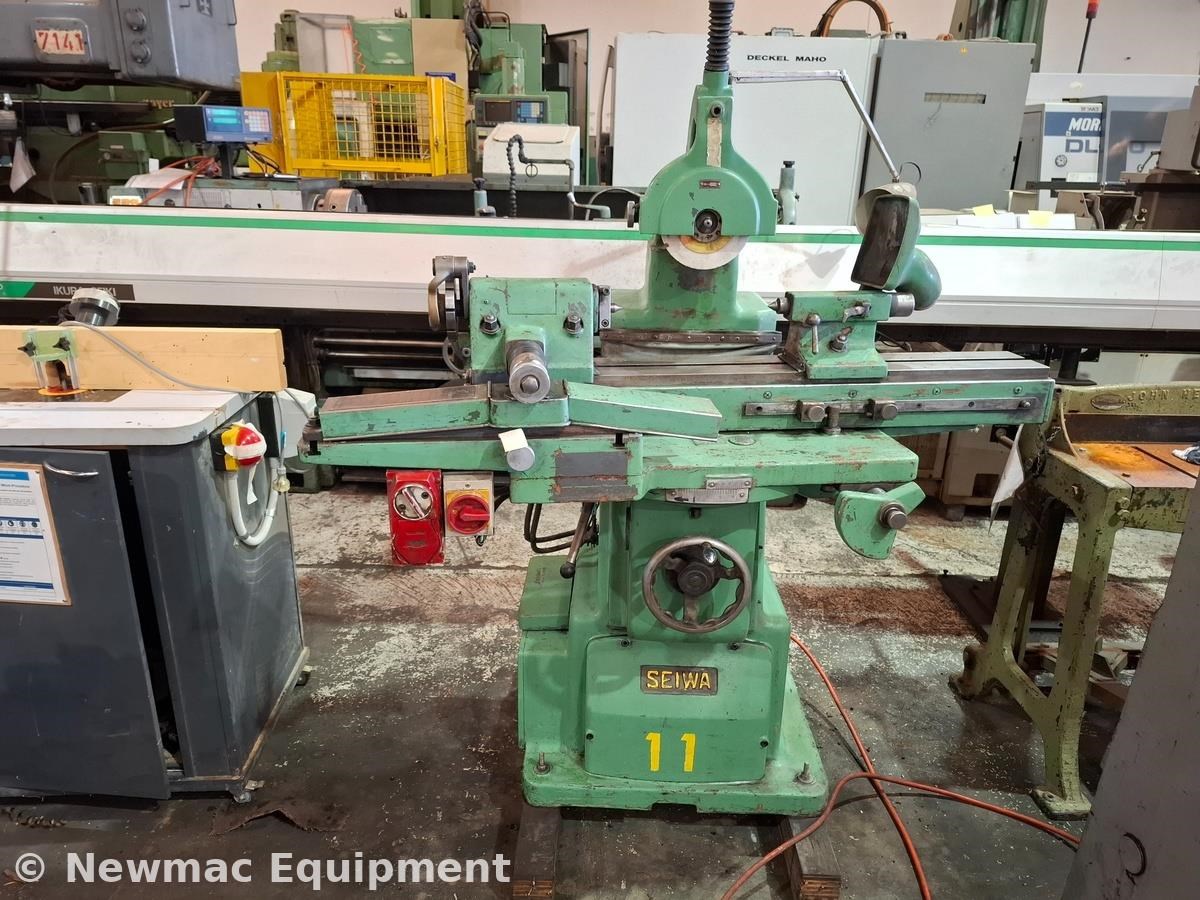

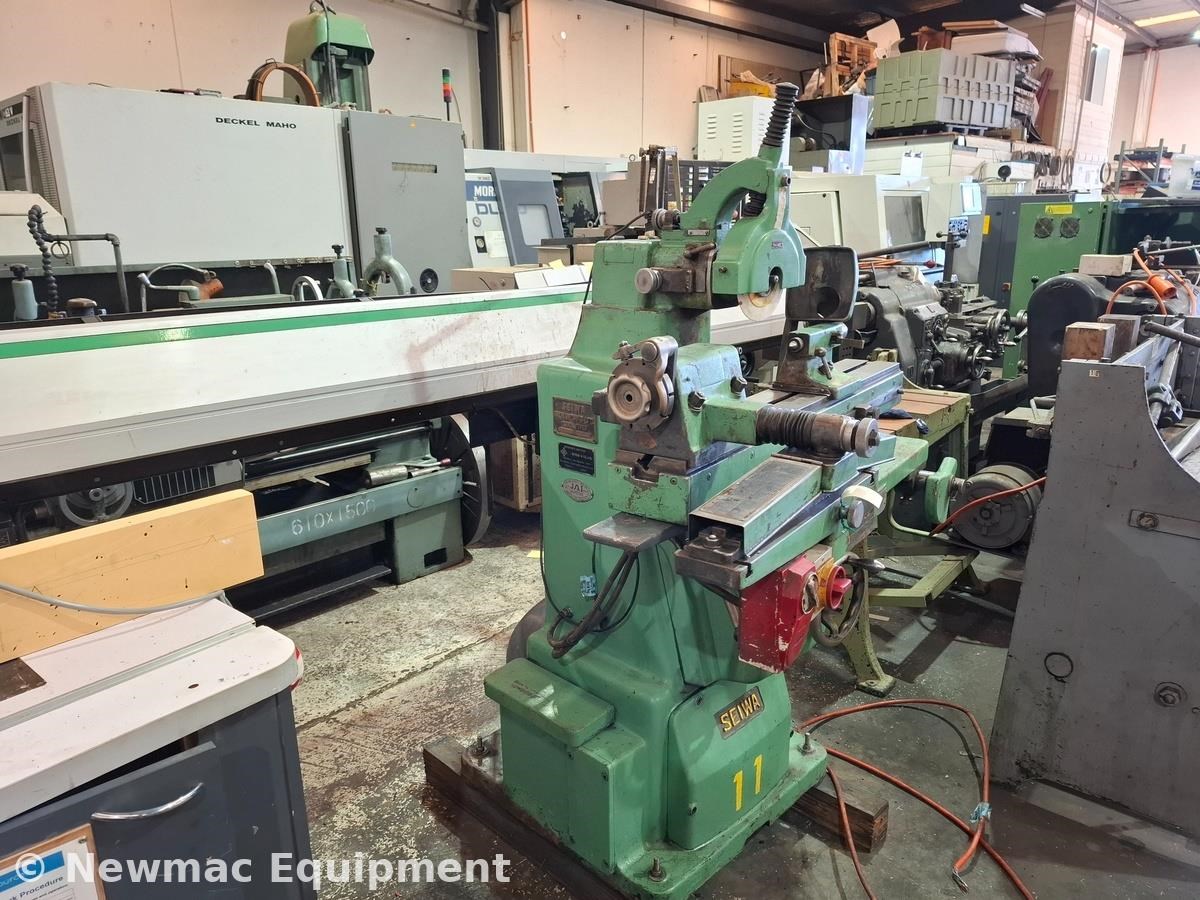

Seiwa SHG-16 Hob Blade Groove Grinding Machine for sale

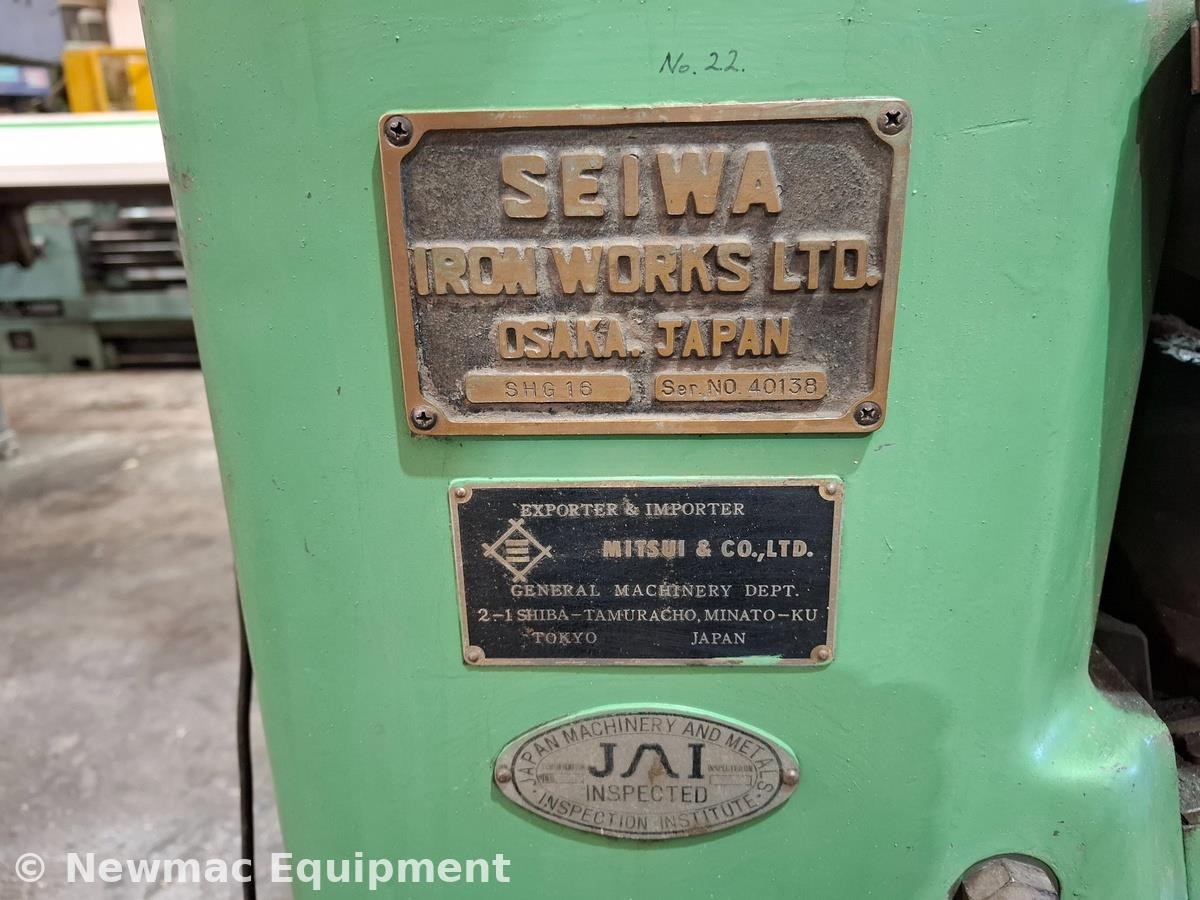

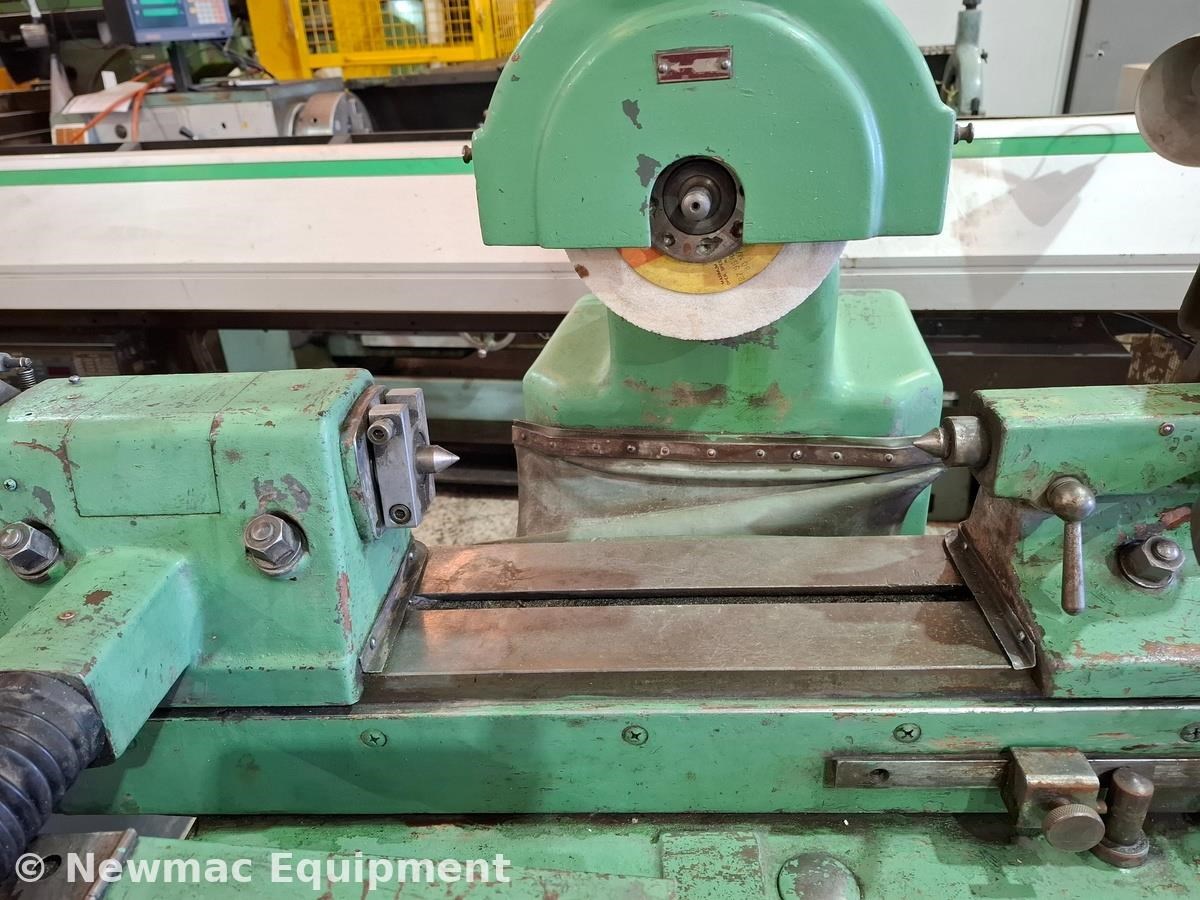

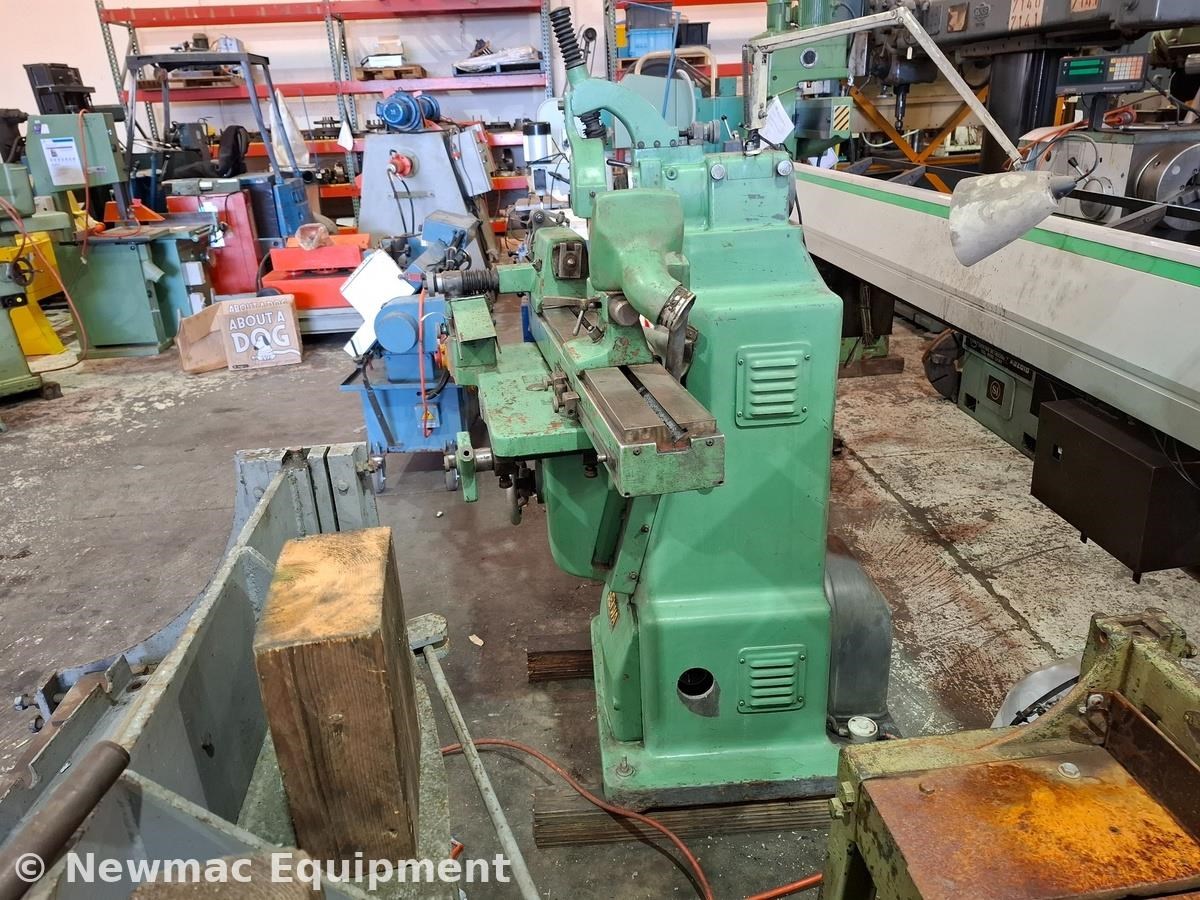

The Seiwa SHG-16 is a specialised machine designed for precision grinding of hob flutes, ensuring gear cutting tools remain sharp and accurate for continued use in production. Built in Japan, this model reflects the robust engineering quality that Seiwa is known for in the gear-manufacturing industry.
Key Specifications:
Maximum hob diameter: 200 mm (8?)
Maximum hob length: 250 mm (10?)
Maximum module: m16 (DP 1½)

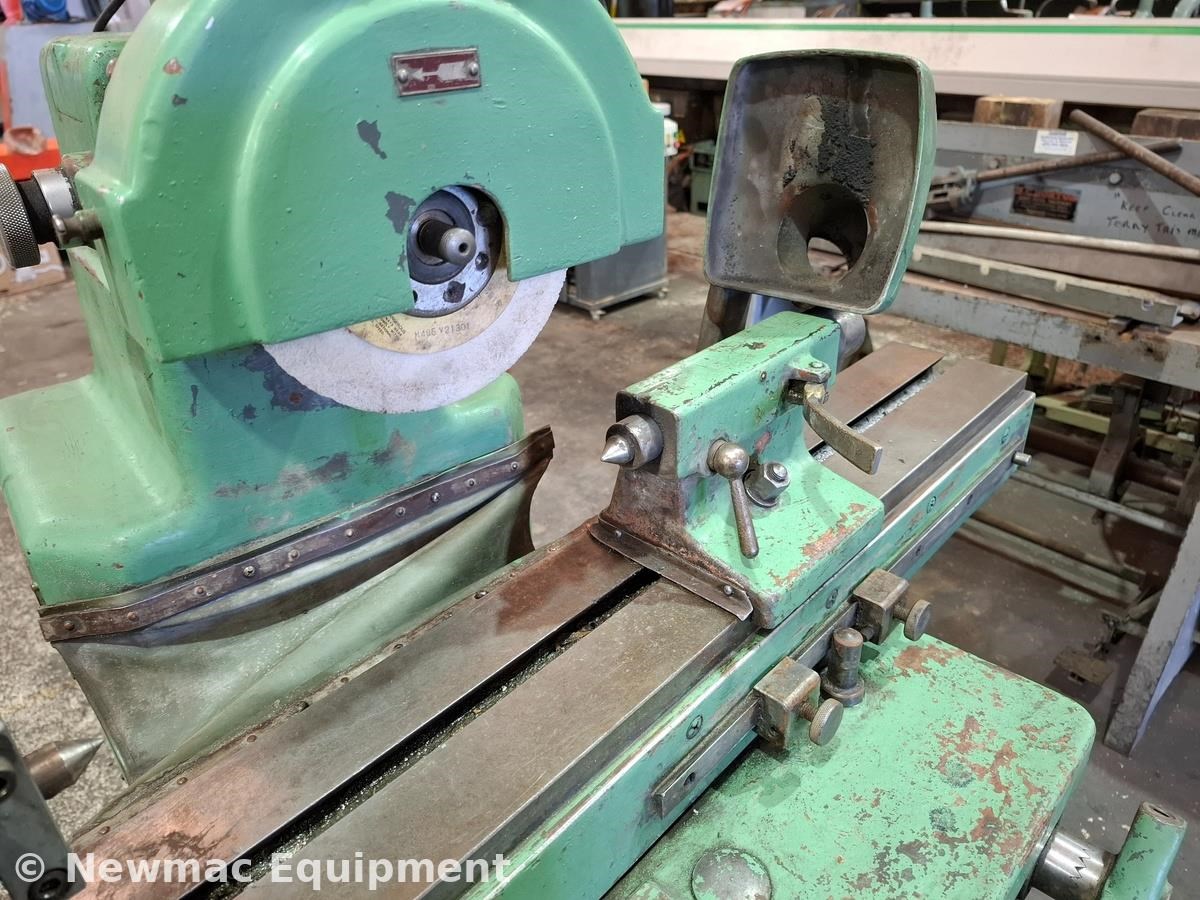

Grinding wheel diameter: 200 mm (8?)
Wheel spindle speed (2 steps): 2,100 & 2,600 rpm
Maximum longitudinal travel of work table: 380 mm (15?)
Maximum vertical travel of work table: 120 mm (4¾)
Distance between centres: 550 mm (21?)

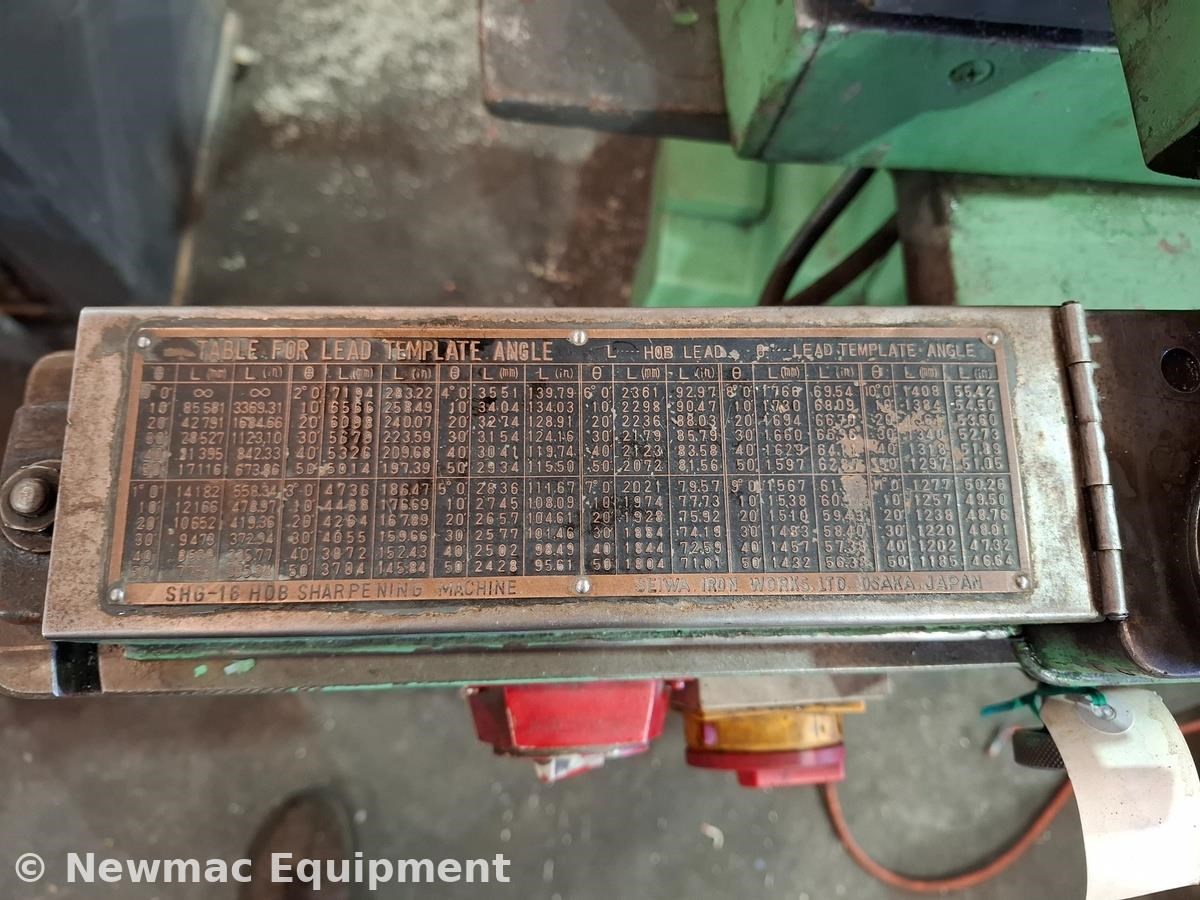

Range of lead template angle (either side): 10°4233
Minimum hob lead: 1,408 mm (55½)
Working surface of work table: 1,060 × 140 mm (41½ × 5½)
Motors:
Main: 0.75 kW (1 HP)
Dust collector: 0.2 kW (¼ HP)
Floor space (L × W × H): 1,700 × 1,060 × 1,620 mm (66? × 41½ × 63?)
Net weight: 750 kg (2,640 lbs)
Click here for additional information & price (will open a pdf in a new tab)
Features & Benefits:
Purpose-built for regrinding hob grooves with accuracy.
Extends the service life of expensive hobs, reducing tooling costs.
Maintains the precision needed for high-quality gear production.
Compact, heavy-duty construction for long-term reliability.

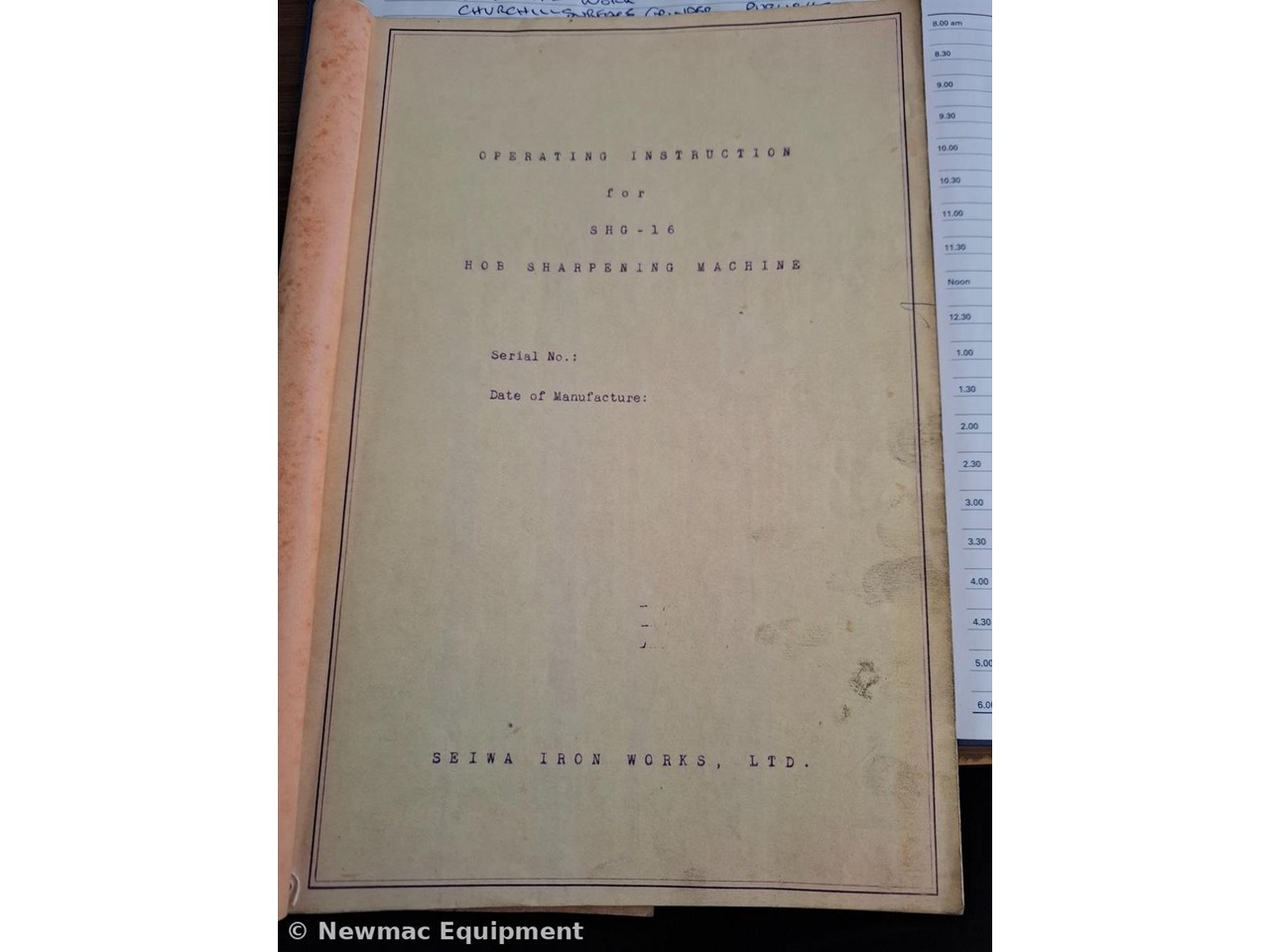

Comes with manual
We recommend customers visit our warehouse to inspect the machinery in person. Our team is more than happy to offer to test run the equipment to give you the peace of mind that it will perform to your requirements before making a purchase. That way, you can make an informed decision and feel confident in your investment, knowing youre making a smart choice for your business.
Are you considering selling your machinery? We buy as well as sell machinery. Downsizing? relocating? closing down? or having surplus equipment. We are always on the lookout for quality machinery to buy. Please do not hesitate to contact us to discuss your machinery needs and how we can help you. Your success is our priority.
We want to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise customers to take out transport insurance with their usual insurance company. Your peace of mind is essential to us, and were here to support you every step of the way.
The Seiwa SHG-16 is a specialised machine designed for precision grinding of hob flutes, ensuring gear cutting tools remain sharp and accurate for continued use in production. Built in Japan, this model reflects the robust engineering quality that Seiwa is known for in the gear-manufacturing industry.
Key Specifications:
Maximum hob diameter: 200 mm (8?)
Maximum hob length: 250 mm (10?)
Maximum module: m16 (DP 1½)
Grinding wheel diameter: 200 mm (8?)
Wheel spindle speed (2 steps): 2,100 & 2,600 rpm
Maximum longitudinal travel of work table: 380 mm (15?)
Maximum vertical travel of work table: 120 mm (4¾)
Distance between centres: 550 mm (21?)
Range of lead template angle (either side): 10°4233
Minimum hob lead: 1,408 mm (55½)
Working surface of work table: 1,060 × 140 mm (41½ × 5½)
Motors:
Main: 0.75 kW (1 HP)
Dust collector: 0.2 kW (¼ HP)
Floor space (L × W × H): 1,700 × 1,060 × 1,620 mm (66? × 41½ × 63?)
Net weight: 750 kg (2,640 lbs)
Click here for additional information & price (will open a pdf in a new tab)
Features & Benefits:
Purpose-built for regrinding hob grooves with accuracy.
Extends the service life of expensive hobs, reducing tooling costs.
Maintains the precision needed for high-quality gear production.
Compact, heavy-duty construction for long-term reliability.
Comes with manual
