Contact Seller
Features
| Title | OPTIMUM BF-20AV |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | OPTIMUM |
| Model | BF-20AV |
| Sale Price | $850 GST Exclusive |
| Listing Type | New |
| Stock Number | 206988 |
| RefCode | TA1269474 |
Description
BF-20AV Opti-Mill Head Attachment - Geared & Tilting Head Electronic Variable Speeds & Dovetail Col

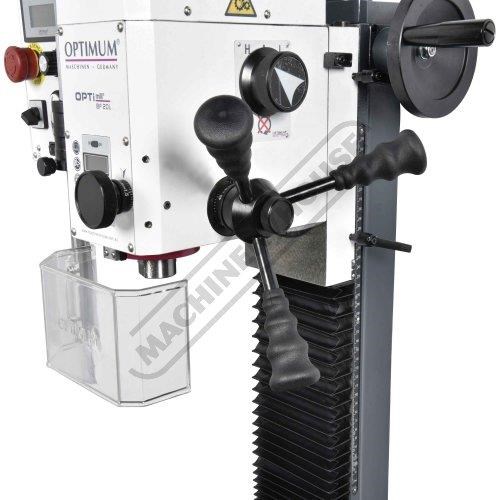

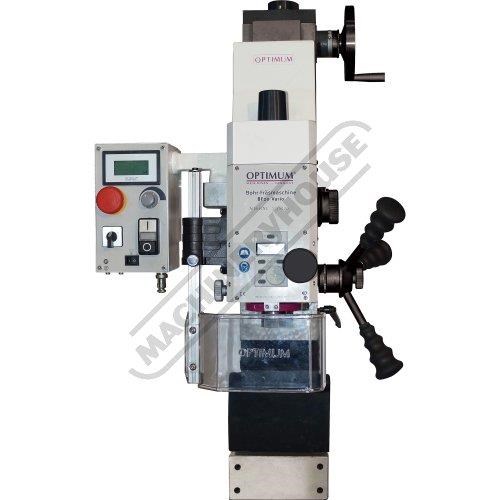

OPTIMUM BF-20AV Opti-Mill Head Attachment - Geared & Tilting Head Electronic Variable Speeds & Dovetail Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M647
The BF-20AV mill head attachment has more throat & height capacity than the the BF-16AV and allows for larger work to be machined, it also is specifically designed to suit the TU-2506V & TU-3008G Optimum bench lathes; converting them into a universal combination lathe/mill when mounted together. In addition this compact setup has the advantage of that it requires less valuable floor space then the two separate conventional machines.
Features:
Electronic infinitely variable speed
3MT spindle taper
Dovetail vertical Z-Axis
Digital readout speed display

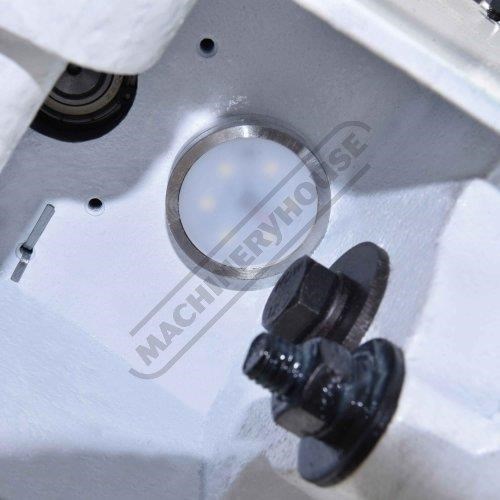

Work light mounted underneath mill head

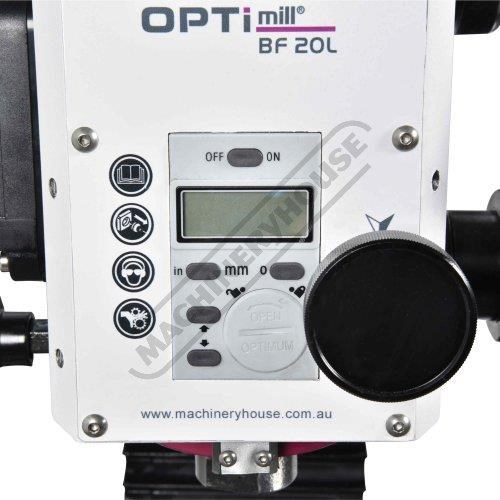

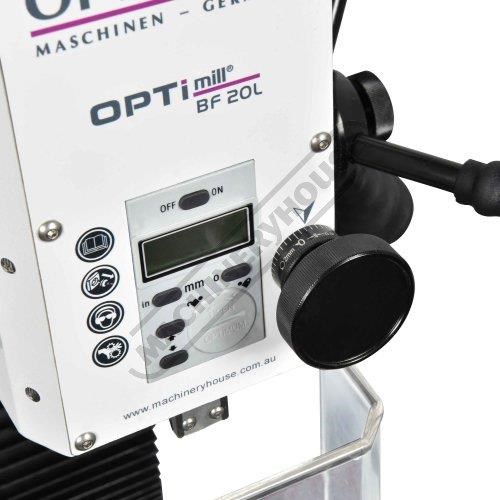

Digital depth display with zero reset for quill
Tilting head to ± 90° from vertical

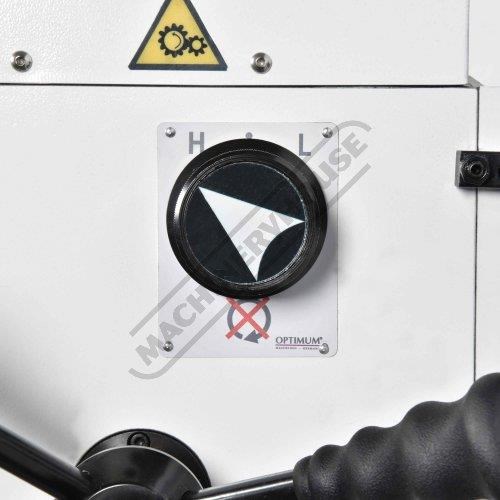

2 speed gearbox (high / low) drive

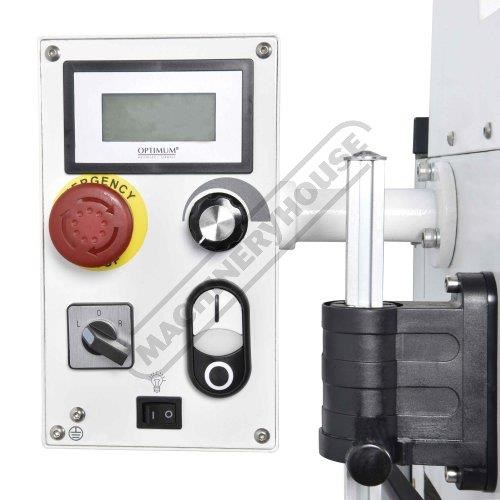

Forward and reverse spindle switch
Scale collars for all Axis are adjustable
Adjustable dovetail slideway on Z-Axis
Adjustable drill length stop
Metric dial graduations
Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment
Includes:
- 3MT x JT6 drill chuck arbor

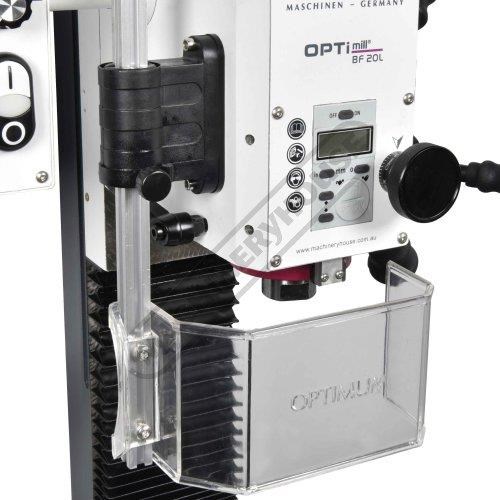

- Safety cutter guard
- Bracket kit for optional digital readout
- 1/2`` x 12tpi whitworth drawbar
Specifications:
ORDER CODE: M647
MODEL: BF-20AV
Digital Readout: Optional
Type: Vertical
Table Size (mm): ~
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): ~
Cross Travel (Y-Axis) (mm): ~
Vertical Travel (Z-Axis) (mm): 280
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): ~
Spindle to Base: ~
Spindle Travel / Diameter (mm): 50 / 60
Throat Depth (max.) (mm): 185
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 16
End Milling Capacity (mm): 20
Face Milling Capacity (mm): 63
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): ~
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): ~
Work Table Load Capacity (kg): ~
Spindle Speeds Vertical (No./ rpm): Variable (90 - 3000)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 0.85 / 1.13
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 103
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M647'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
