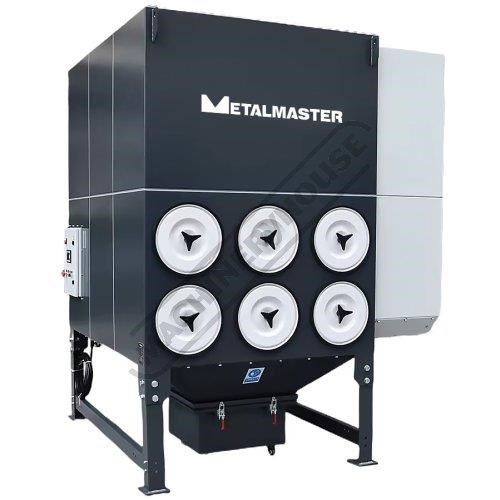

METALMASTER MMF-12L

MMF-12L Laser Fume Extraction High Volume up to 10000 m3/h Air Filtering Capacity 99.99%% Efficiency

METALMASTER MMF-12L Laser Fume Extraction High Volume up to 10000 m3/h Air Filtering Capacity 99.99%% Efficiency
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W2726

The Metalmaster Fume Extraction Units are designed to keep your machine and workshop clean by removing harmful dust and particles. Specifically designed to work with laser cutting machines, these advanced dust collectors effectively capture and filter out the tiny particles created during the laser cutting process.

The filter is equipped with automatic jet pulse cleaning so the system automatically cleans itself.

Features:
High Volume high-efficiency filtration system
Intelligent Control System with 4.3`` Touch Screen
Robust design
Designed specifically for laser cutting
Siemens motor ultra-high negative pressure fan
Supports remote start from Laser machine


Specifications:
ORDER CODE: W2726
MODEL: MMF-12L
Extraction Arm/Hose Length (Metre): ~
Extraction Arm Diameter (mm): ~
Air Flow (m3/h): 10000
Filtering Area (m2): 240
Inlet Size (mm): Optional
Filter Type: Ahlstrom
Filtration Efficiency: 99.99%
Collector Capacity (L): 120
Voltage / Amperage (V / A): 415 / 32
Motor Power (kW): 15
Compressed Air Requirements (Mpa): 0.6
Main Unit Size (w x l x h) (mm): 2080 x 2220 x 2760
Nett Weight (kg): 1800
