Contact Seller
Features
| Title | METAL MASTER SPB-32160 |
| Type | Engineering - Fabrication |
| Sub Type | Bending Equipment |
| Make | METAL MASTER |
| Model | SPB-32160 |
| Sale Price | $116,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 1165644 |
| RefCode | TA1288390 |
Description

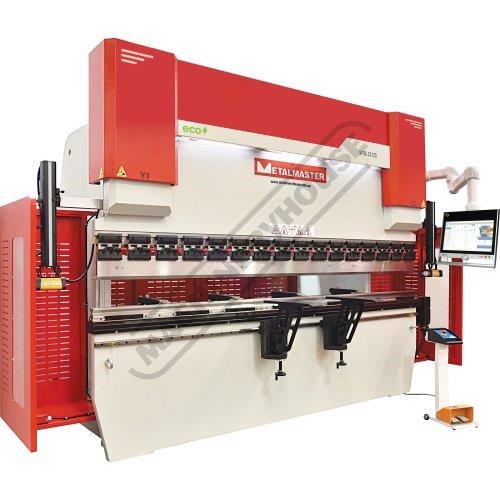

SPB-32160 CNC Synchro Pressbrake 3200 X 160T DELEM DA69S - 5 AXIS - ENERGY SAVING SERVO HYDRAULICS I
METALMASTER SPB-32160 CNC Synchro Pressbrake 3200 X 160T DELEM DA69S - 5 AXIS - ENERGY SAVING SERVO HYDRAULICS Includes Programmable Y1, Y2, X, V & R-Axis & Laser Guarding
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S9754
DELEM DA69S CNC Controller
DELEM's Latest DA-69S flagship control combines solid fundamental press brake control functionality with the latest of enhancements increasing productivity
The DA-69S offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling. The offline programming software is standard, Profile-S 3D offline increases efficiency and machine uptime. DXF import as well as 3D import (Step/Iges) are available to help convert designs as well as tooling
METALMASTER Synchro Pressbrake
The Metalmaster Synchro series pressbrakes adopt a heavy duty integral welded steel structure that is furnace tempered post welding to relieve residual stresses and ensure accuracy & longevity of the machine.
The hydraulic cylinders are manufactured from high resistance steel incorporating chromium plated ground & lapped pistons to ensure longevity of the Swedish brand SKF hydraulic seals

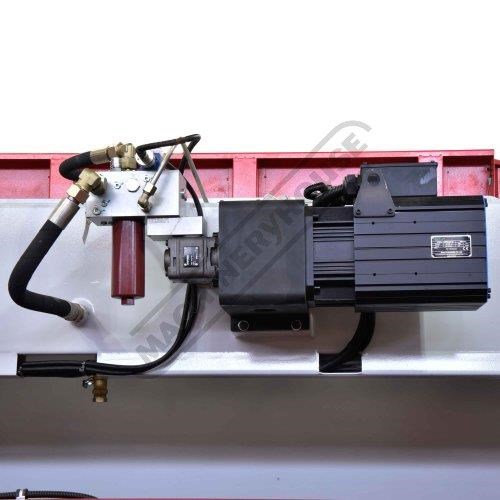

SERVO HYDRAULIC system consists of electronically controlled proportional valves with independent 3 point closed loop safety monitoring of the two cylinders as well as the main hydraulic system. Servo hydraulic systems can significantly reduce energy consumption compared to traditional hydraulic systems.

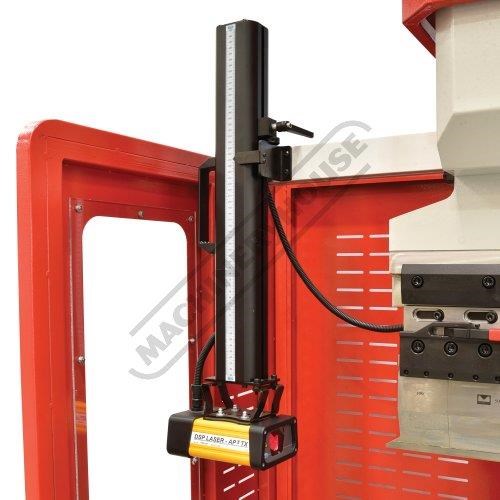

Italian manufactured DSP Laser Guarding ensures operator safety whilst in operation. The Laser system is designed to cater for many different types and sizes of top tooling ensuring safety at the appropriate points as required by the AUS/NZ standards.
At the heart of the electrical system is the Italian made MCS safety control module which controls & monitors all pressbrake functionality, the MCS provides dual monitoring & closed loop feedback for all critical safety functions such as Hydraulic valves, Emergency stop circuits, doors, guards, foot pedal, DSP lasers to name a few functions. This ensures the machinery to be Compliant with AS/NZS 4024.1 - 2019 Safety of Machinery Series
Features:
DELEM DA69S CNC Controller
Large 24`` High resolution colour touch screen control mounted on a swivel pendant for optimal ergonomics
3D and 2D graphical touch screen programming mode
3D visualisation in simulation and production mode
Automatic bend sequence calculation in 2D and 3D
Easy graphical bend sequence swap and move
Calulations such as Bend allowance Developed length Bottoming force Hemming force Auto bumping Radius programming
Auto Crowning adjustment
Tool configuration
Shop floor control Job list functionality
USB peripheral interface
Support for Industry 4.0 connectivity (OPC-UA optional)
Delem Profile S-3D offline software
DXF import support IGES 3D File import
METALMASTER Synchro Pressbrake
5 CNC Controlled Axis (Y1 Y2 X R V) as standard.
Y1 & Y2 Axis is controlled by advanced safety monitored hydraulic proportional valves ensuring accuracy in movement.
Servo hydraulic system consumes 30-70% less energy compared to conventional fixed-speed hydraulic setups.
Bending compensation & accuracy is maintained using FAGOR (Spain) Linear scales mounted on either end of the machine bed to measure any frame deflection

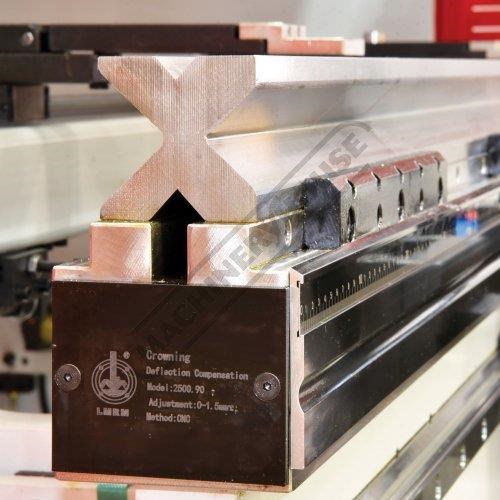

CNC controlled auto crowning table (V) adjusts accordingly based on material length & thickness specified in program.

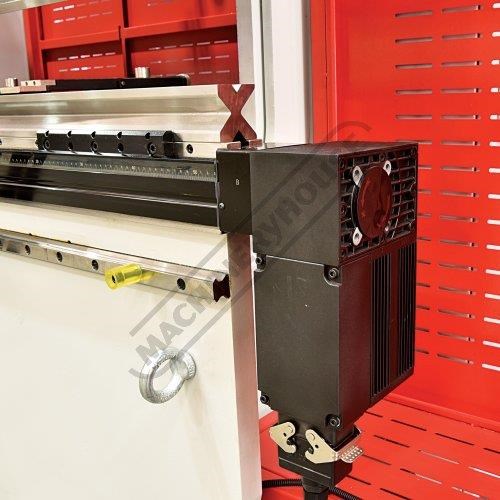

Servo driven X & R Axis provides fast response & accuracy when positioning the backgauge.
X-Axis Linear guides & ball screws (Taiwan) / R-Axis rack & pinion
X axis travel 500mm - Speed = 200 mm/s
R axis travel 150mm - Speed = 100 mm/s
Flip up type back gauge fingers mounted on linear rails complete with micro adjusters are provided as standard

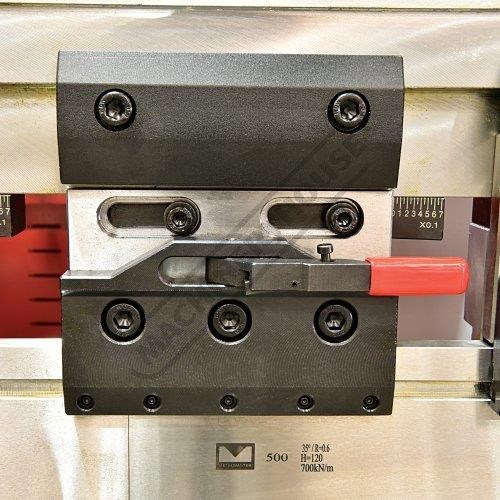

Advanced push button quick release tooling top clamps allow for the top tooling to be removed from the front of the clamp rather than sliding all of the tooling left & or right this saves time and ensures you are not shifting all your tooling just to change 1 piece.

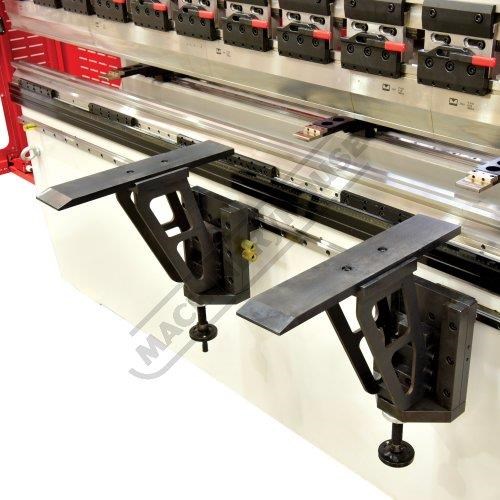

Premium front sheet supports fully adjustable in the vertical direction & mounted on linear rails for ease of use.
Includes:
- DELEM DA69S CNC Touch screen controller
- 5 Axis CNC Control
- Servo Motor Hydraulics for energy saving
- Quick release top tool clamping system with advanced front load tooling system

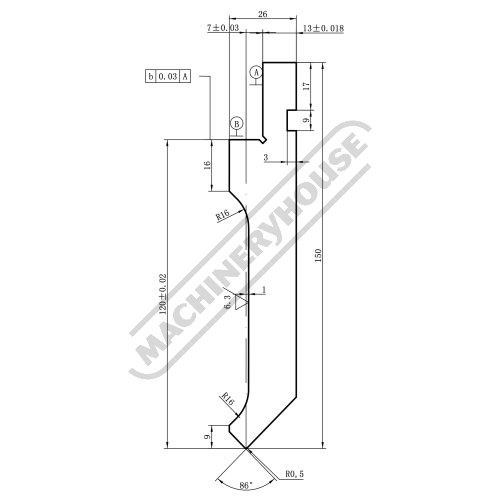

- 86 Degree Top Punch with Segments & Horns (3 x 800mm 1 x Segmented 800mm comprising of Left Horn 100 10 15 20 40 50 165 300 Right Horn 100)

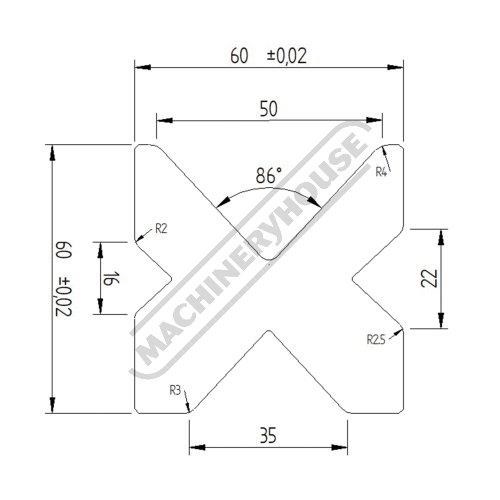

- Bottom Die 4 Way x 86 Degree V'S 16 22 35 50mm
- DSP Safety laser guard system
- MCS safety control for safety compliance & peace of mind
Specifications:
ORDER CODE: S9754
MODEL: SPB-32160
Control Unit (Type): DELEM DA69S
Nominal Pressure - Tonnage (Ton): 160
Nominal Pressure - Kilonewtons (kN): 1600
Length of Work Table (mm): 3200
Distance Between Columns (mm): 2700
Throat Depth (mm): 400
Maximum Open Height (mm): 420
Ram Stroke (mm): 200
Machine Axis (No.): 5
Safety Guarding System (Type): Laser System
Ballscrew Backgauge Travel (mm): 500
Leadscrew Backgauge Travel: ~
Table Bed Crowning System (Type): CNC Controlled System
Motor Power (kW / hp): 11 / 15 SERVO MOTOR
Motor Voltage (V): 415
Floor Space (Includes Front Sheet supports) (mm): 3860 x 2100
Nett Weight (kg): 10000
To Purchase Online Please Visit The Machineryhouse Website & Search For 'S9754'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
