MEASU-MAX 34-218

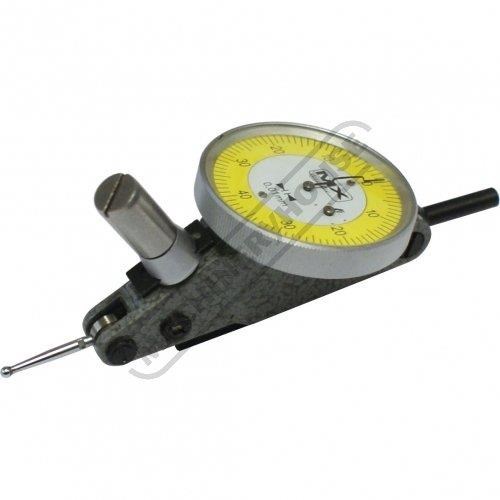

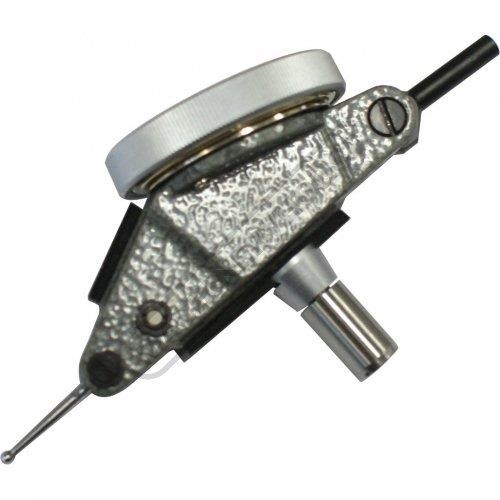

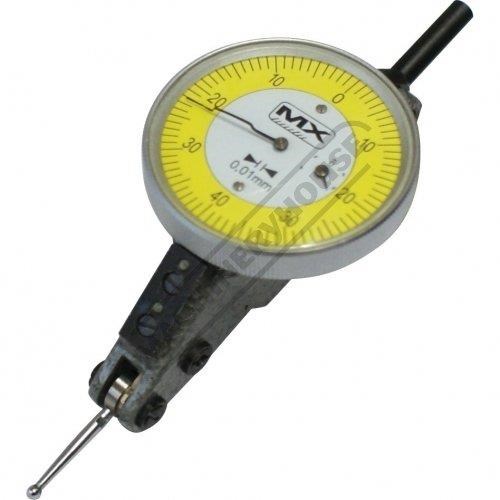

34-218 Dial Test Indicator - Metric Gradient of 12 degrees On Dial Face ±1.6mm Travel

MEASUMAX 34-218 Dial Test Indicator - Metric Gradient of 12 degrees On Dial Face ±1.6mm Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q218

Features:
Large measuring range - 1.6mm - +1.6mm
Measurement in both directions - steel ball end
Gradient of 12 degrees on dial face
Mono enclosure for air tight seal


Specifications:
ORDER CODE: Q218
Range: ±1.6mm
Graduations: 0.01mm

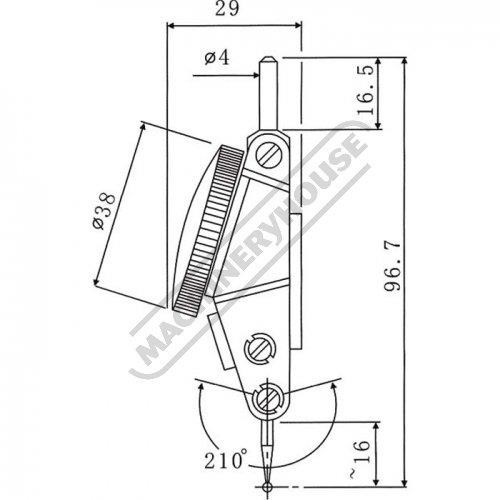

A (mm): 31.2
B (mm): ~
B1 (mm): ~
C (mm): ~
D (mm): Ø38
d (mm): 4 / 8
E (mm): ~
F (mm): ~
G (mm): ~
H (mm): ~
I (mm): 16.5
J: 99
K (mm): ~
L (mm): ~
L1 (mm): 19
Ø (mm): 2.5
