MEASU-MAX 34-2171

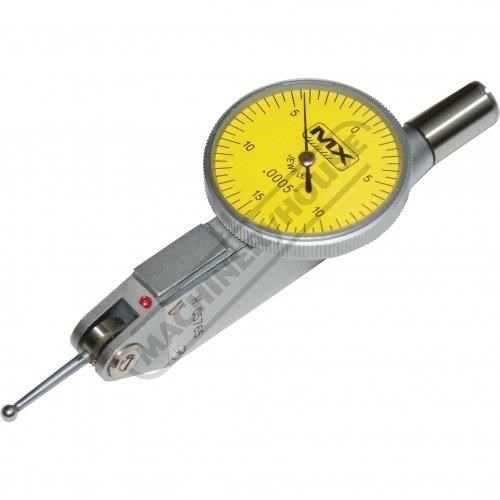

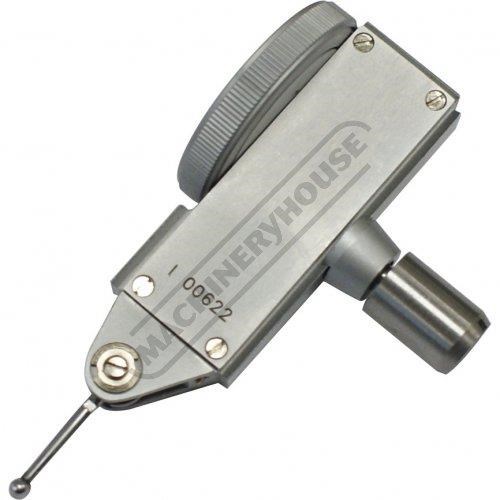

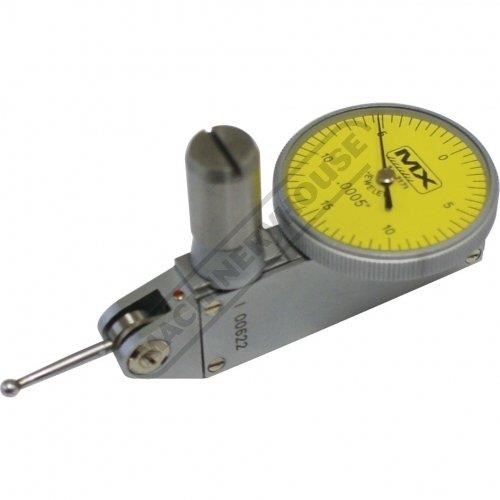

34-2171 Dial Test Indicator - Imperial Jewel Movement - Measuring In Both Directions 0 - 0.03`` Trave

MEASUMAX 34-2171 Dial Test Indicator - Imperial Jewel Movement - Measuring In Both Directions 0 - 0.03`` Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q2171

Features:
The dial test indicator is ideally suited for all kinds of comparative measurements in the workshop and inspection room
It also can be used together with machine tools apparatus and other measuring devices - Steel ball end
Jewel movement - measuring in both directions


Specifications:
ORDER CODE: Q2171
Range: 0 - 0.03``
Graduations: 0.0005``
A (mm): 24.5
B (mm): 17.3
B1 (mm): ~
C (mm): 16.6
D (mm): Ø31.2
d (mm): 3.95 / 9.5
E (mm): 42.6
F (mm): 38.7
G (mm): ~
H (mm): ~
I (mm): ~
J: ~
K (mm): ~
L (mm): 19
L1 (mm): ~
Ø (mm): 2


To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q2171'
