MEASU-MAX 34-217

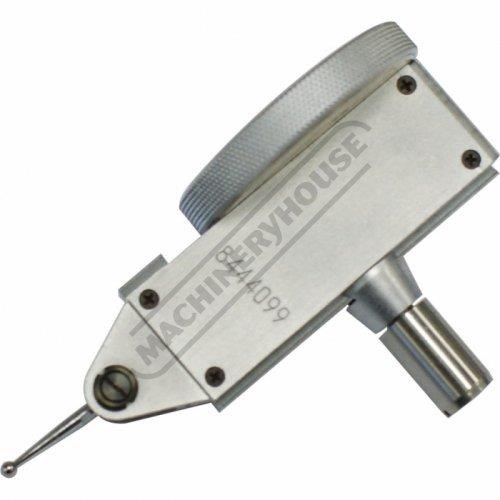

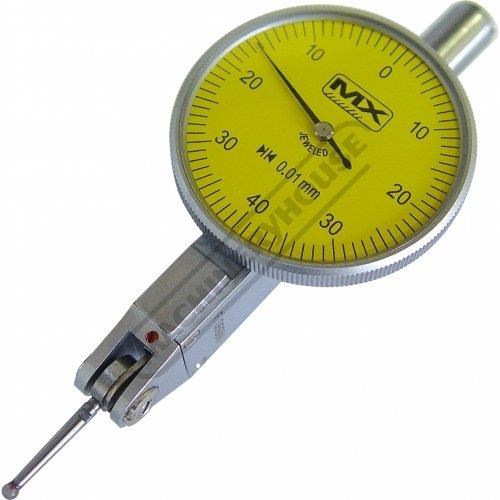

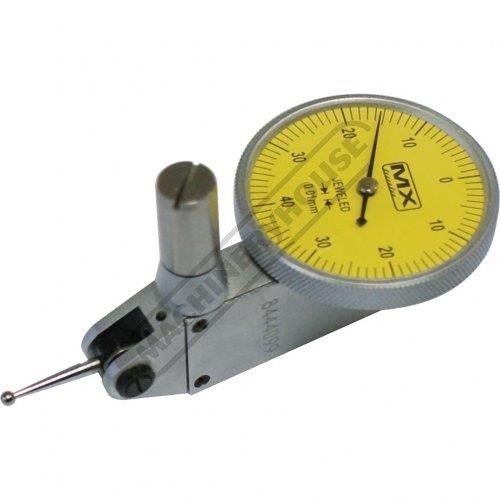

34-217 Dial Test Indicator - Metric Jewel Movement - Measuring In Both Directions 0 - 0.8mm Travel

MEASUMAX 34-217 Dial Test Indicator - Metric Jewel Movement - Measuring In Both Directions 0 - 0.8mm Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q217

Features:
The dial test indicator is ideally suited for all kinds of comparative measurements in the workshop and inspection room
It also can be used together with machine tools apparatus and other measuring devices - Steel ball end
Jewel movement - measuring in both directions


Specifications:
ORDER CODE: Q217
Range: 0 - 0.8mm
Graduations: 0.01mm
A (mm): 26.35
B (mm): 18.35
B1 (mm): ~
C (mm): 16.5
D (mm): Ø37
d (mm): 6 / 8
E (mm): 44
F (mm): 39.75
G (mm): ~
H (mm): ~
I (mm): ~
J: ~
K (mm): ~
L (mm): 16.5
L1 (mm): ~
Ø (mm): 2
