MEASU-MAX 12-317

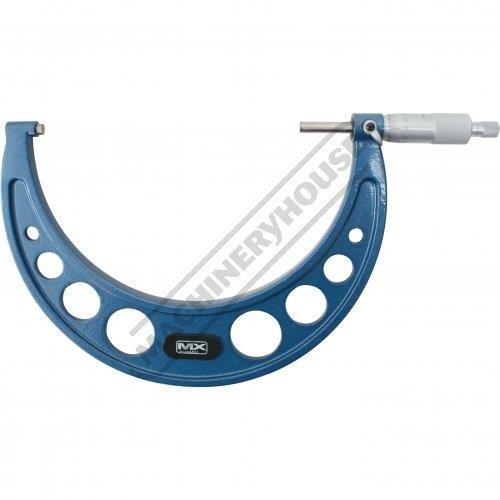

12-317 Metric Outside Micrometer - Large Cast Frame 150 - 175mm Range

MEASUMAX 12-317 Metric Outside Micrometer - Large Cast Frame 150 - 175mm Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q317

Measumax metric micrometers represent exceptional value. Special care has been taken in design and workmanship to ensure high precision and long life.
Measumax metric micrometers meet industry standards for specification and accuracy

Features:
Carbide measuring faces - Painted cast frame
Micro-fine clear graduations on satin chrome finish
Measuring face 6.5mm Flatness 0.0008mm
Ratchet stop for exact repetitive readings
Includes deluxe foam lined plastic case and wrench
Resolution 0.01mm
Supplied with setting standards


Specifications:
ORDER CODE: Q317
Range (mm): 150 - 175
Graduation (mm): 0.01
Accuracy (mm): 0.007
Setting Bar (No.): 1
a (mm): 19.4
b (mm): 5.5
c (mm): 104
L (mm): 183
m061: ~


To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q317'
