Features
| Title | HAFCO WOODMASTER OAV P30CE |
| Type | Engineering - Fabrication |
| Sub Type | Cutting Equipment |
| Class | Panel Saw |
| Make | HAFCO WOODMASTER |
| Model | OAV P30CE |
| Sale Price | $9,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 225439 |
| RefCode | TA1267932 |
Description

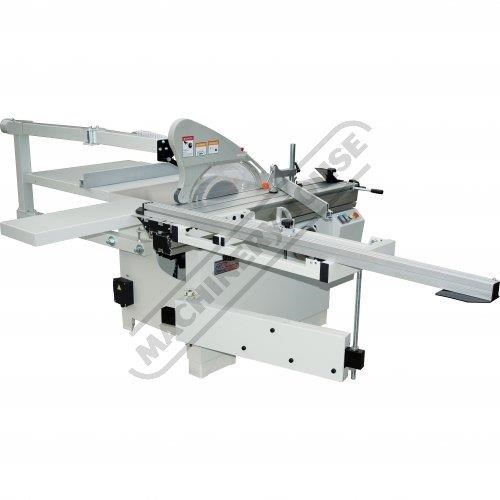

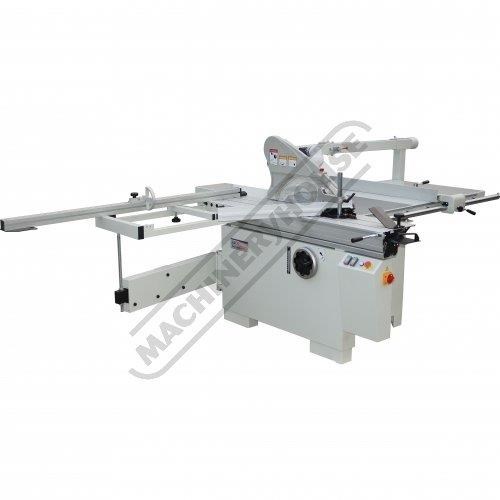

OAV P30CE Panel Saw 548 x 896mm Cast Iron Table Ø305mm Saw Blade, Ø120mm Scoring Blade Diameter & I

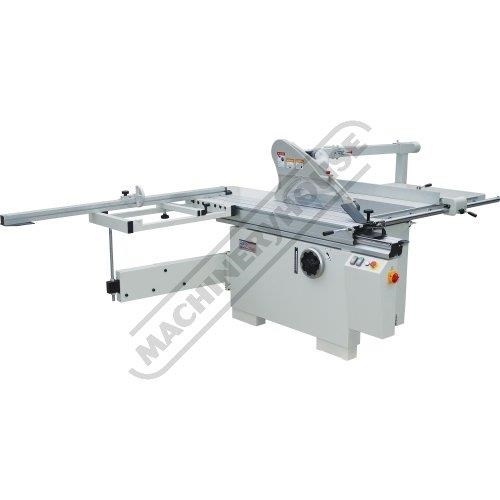

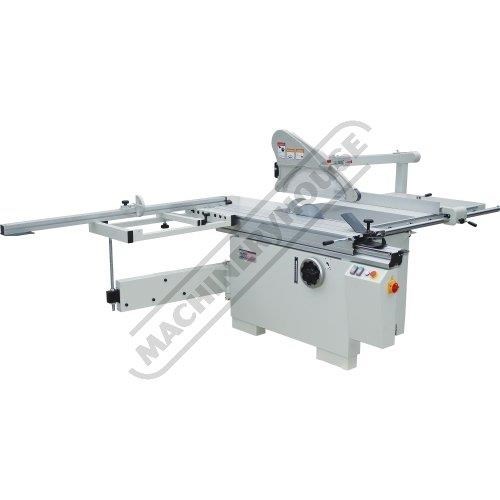

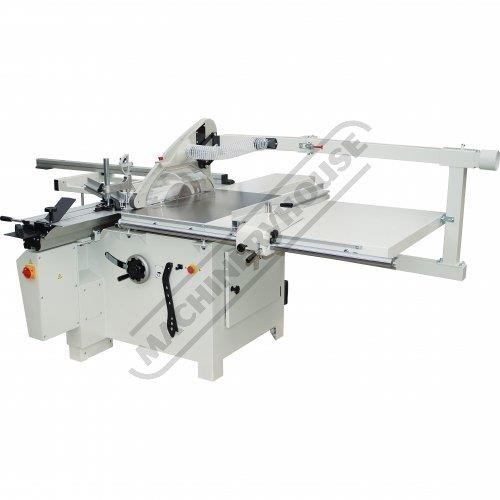

HAFCO-WOODMASTER OAV P30CE Panel Saw 548 x 896mm Cast Iron Table Ø305mm Saw Blade, Ø120mm Scoring Blade Diameter & Includes 1600mm Sliding Table & Over Head Guard
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W740
The OAV P30CE features an impressive 1600mm cutting capacity in front of the blade. Its heavy-duty 1600 x 315mm sliding table is robust and glides smoothly on precision slides. A panel frame supports larger boards, while a mitre fence with an extension and two length stops come standard.
A large 305mm blade powered by a 5hp 415V motor, provides a maximum cutting depth of 90mm at 90°. Additionally, a 120mm scoring blade, driven by a separate 0.75hp motor, delivers exceptional accuracy on laminated materials, effectively preventing edge chipping.
The main table is a rigid, precision-ground cast iron surface measuring 548 x 896mm, supported by a welded steel chassis with a durable powder-coated finish for long-lasting protection. A cast iron rip fence with fine width adjustment is paired with a long alloy extrusion fence arm, all mounted on a sturdy 40mm chromed steel rail. Rear outfeed and side extension tables made from thick gauge sheet steel are also included for enhanced versatility and support.
Features:

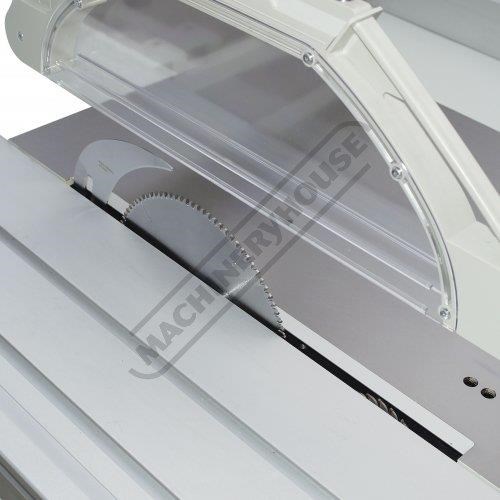

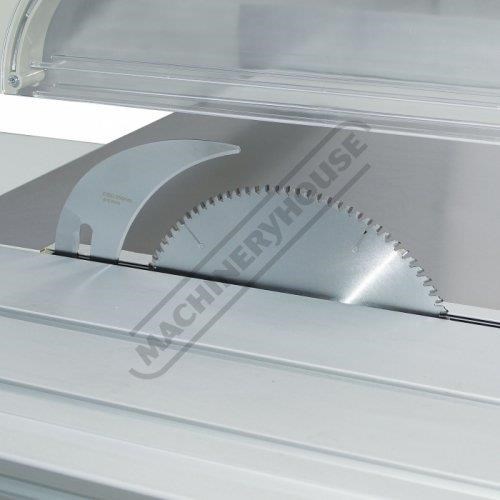

Main and scoring saw blade ensures tear-free cutting
Ø305mm main blade driven by powerful 3.75kW / 5hp 415V motor
Ø120mm scoring blade driven by 0.56kW / 0.75hp 415V motor
Main blade spindle speed 4000rpm
Scoring blade spindle speed 8000rpm
Depth of cut: 90mm @ 90º 63mm @ 45º
1600mm sliding table stroke

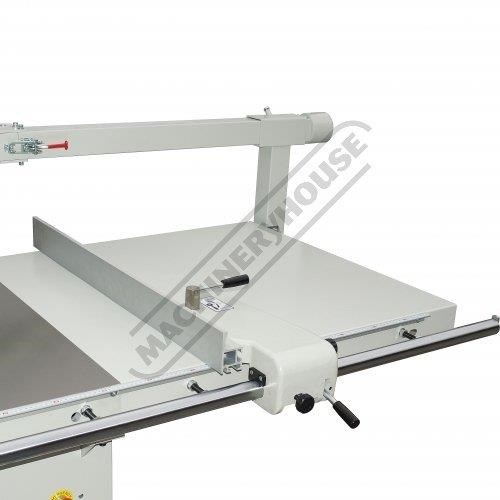

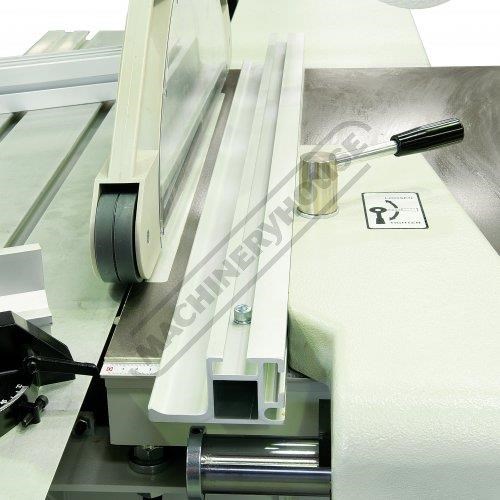

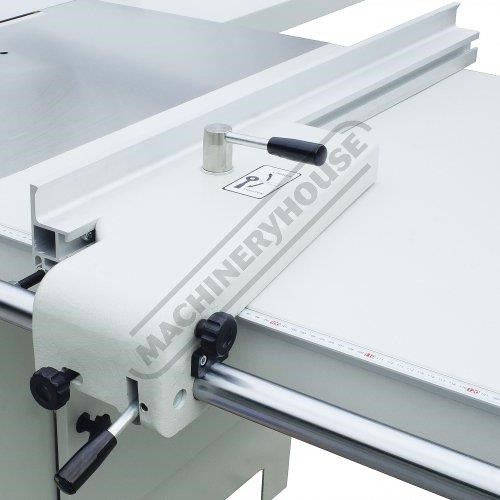

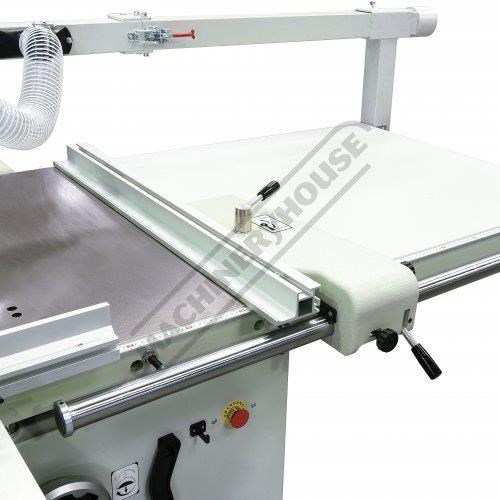

1300mm ripping capacity with smooth rip fence & adjustment
Heavy duty aluminium extruded fence with 2 height options

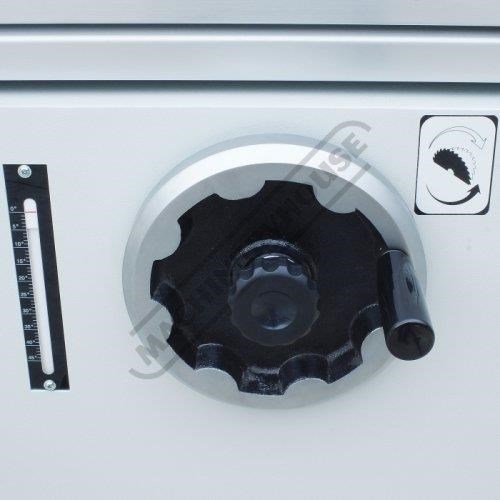

Precision ball bearing main spindle tilts to 45º
Cast iron main table with steel extension

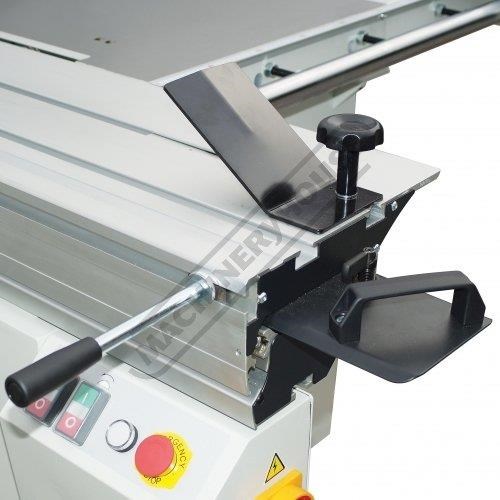

Durable extruded aluminium slide provides extremely smooth traverse table is 1600 x 315mm wide
Heavy duty internal mechanism

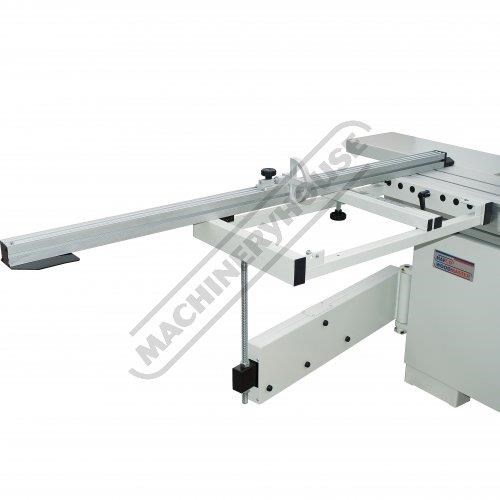

Solid outrigger table with swing arm

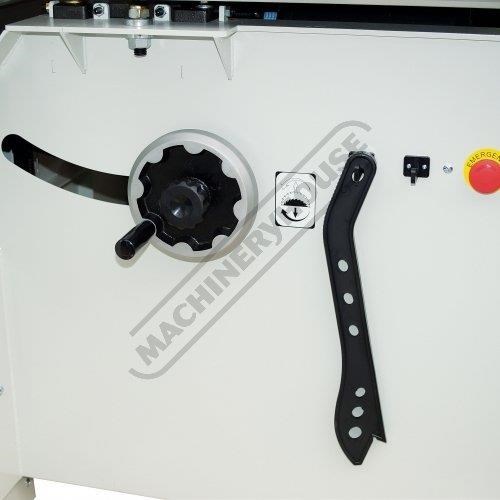

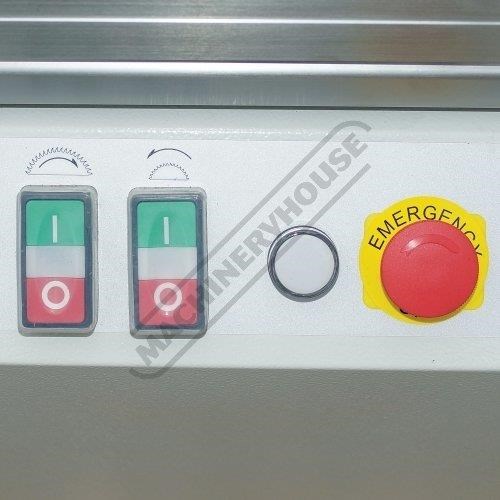

Easy access electrical controls on main frame
Magnetic switch with overload protection

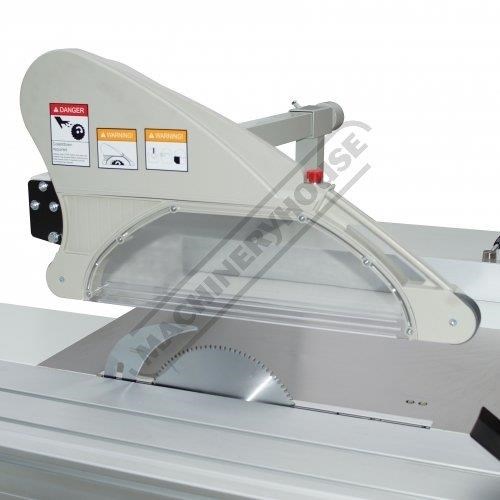

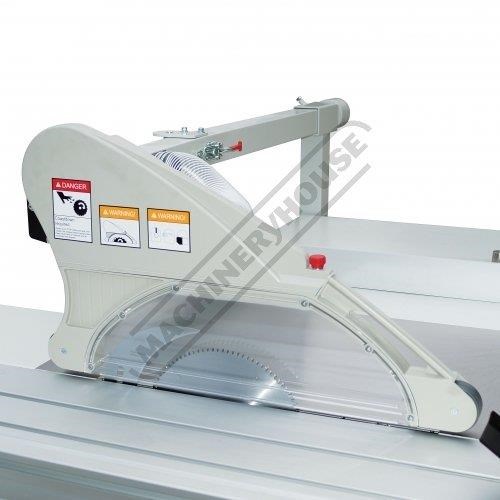

Heavy duty overhead saw blade guard with dust collector port
Industrial Taiwanese machine
Specifications:
ORDER CODE: W740
MODEL: OAV P30CE
Blade Diameter (mm): Ø305
Table Size (W x H) (mm): 548 x 896
Table Size With Extensions (mm): 1003 x 1726
Max. Depth Of Cut 90º & 45º (mm): 90 / 63
Scribe Blade Diameter (mm): Ø120
Tilt Arbor To 45º: Yes
Sliding Table Stroke (mm): 1600

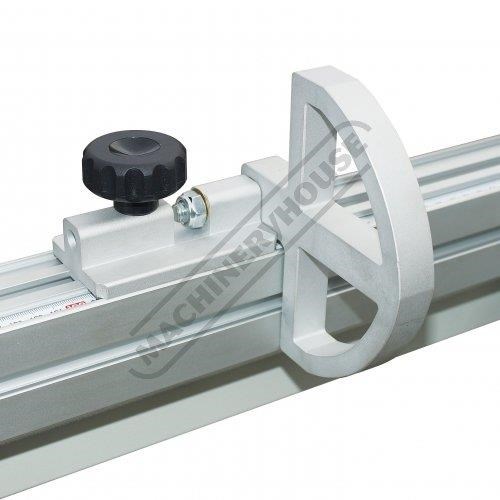

Cross Cut with Flip Over Stop (mm): 1400
Cross Cut with Extension Stop (mm): 1400 - 2600
Rip Capacity (mm): 1300
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Floor Space Required (W x D x H) (mm): 3650 x 3700 x 1450
Weight (nett) (kg): 607
To Purchase Online Please Visit The Machineryhouse Website & Search For 'W740'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
