HAFCO WOODMASTER M-16

M-16 Chisel Morticer 125mm timber width capacity

HAFCO-WOODMASTER M-16 Chisel Morticer 125mm timber width capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W347

Heavy cast iron construction

Features:
16mm chisel capacity
125mm timber width capacity

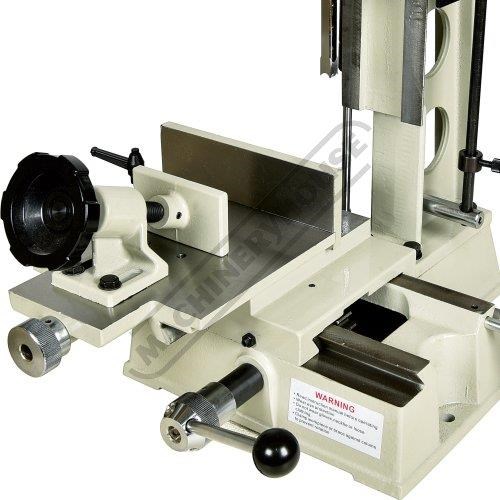

Quick action hand wheel material clamp
120mm vertical head stroke
165mm lateral (left to right) stroke
76mm maximum mortice depth

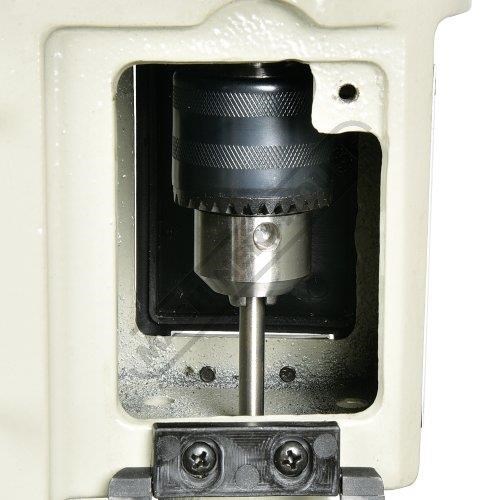

1-13mm drill chuck capacity
1400rpm spindle speed
370W 240V motor

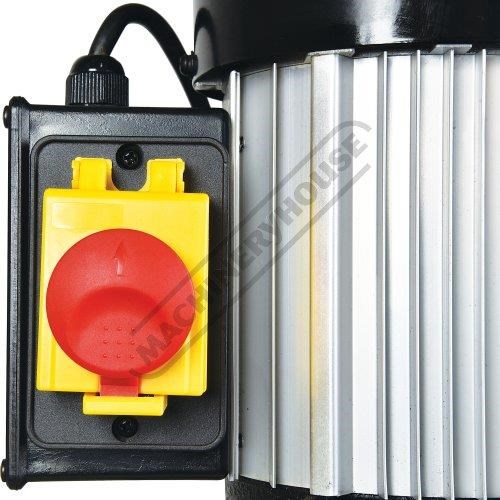

Magnetic switch with emergency stop

Includes:
- 1 x Chisel (Ø3/8`` x 19mm collar)
- 1 x Collar reducing bush Ø25mm OD - Ø19mm ID



Specifications:
ORDER CODE: W347
MODEL: M-16
Timber Capacity (mm): 125
Table Movement (mm): 160 x 46
Vertical Head Stroke (mm): 120
Collar Reducing Bush (ID) (mm): Ø19
Motor Power (kW / hp): 0.37 / 1/2
Voltage (V): 240
Floor Space (W x D x H) (mm): 470 x 500 x 750
Nett Weight (kg): 46
