HAFCO WOODMASTER DC2

DC-2 Dust Collector 1HP 500cfm - LPHV System

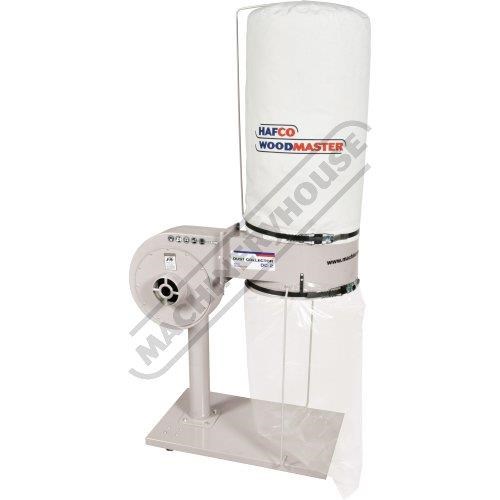

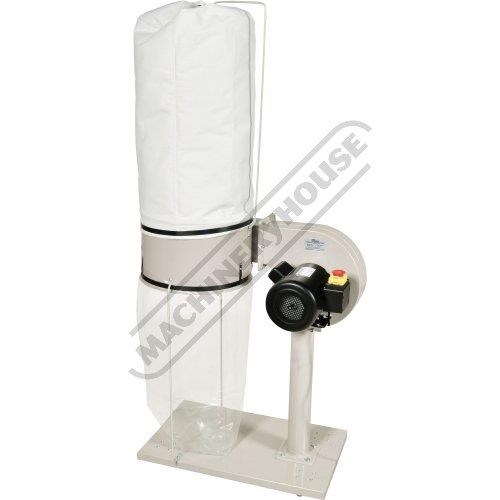

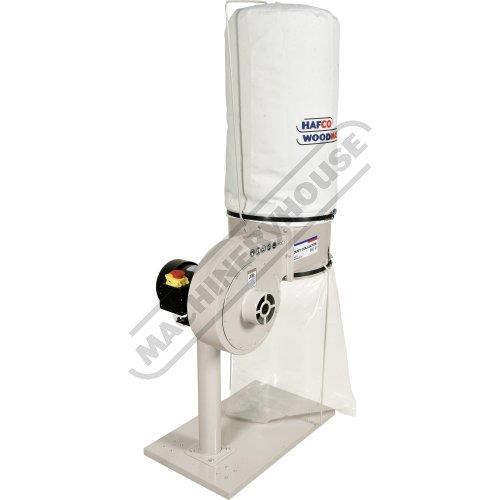

HAFCO-WOODMASTER DC-2 Dust Collector 1HP 500cfm - LPHV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W332

LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.

Features:
500cfm

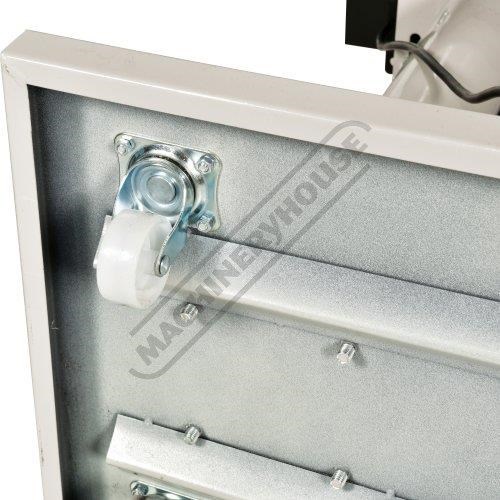

Portable on wheels
Ø100mm single inlet

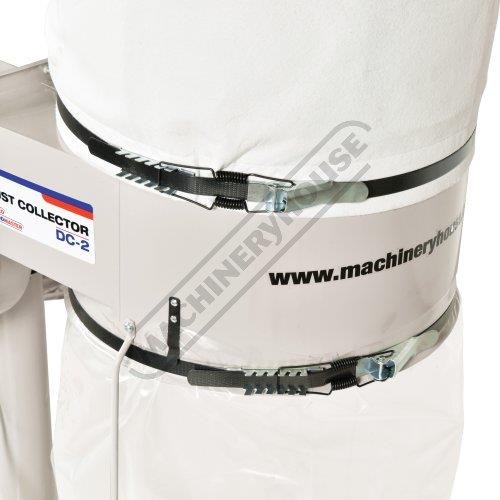

Quick-action clamps
5 Micron Fine Filter Bag

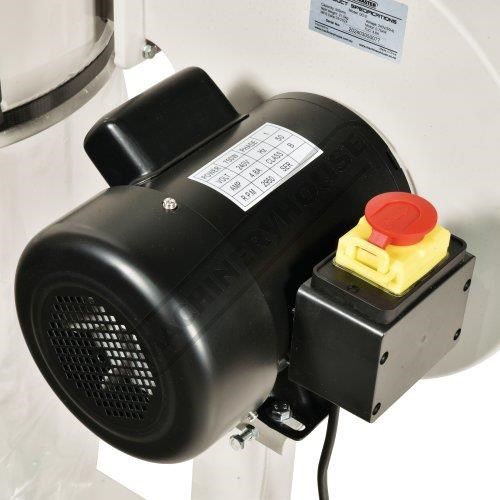

0.75kW / 1hp 240V motor
Magnetic safety switch


Specifications:
ORDER CODE: W332
MODEL: DC-2
Type: Dust Collector
Type: ~
Airflow (CFM): 500
LPHV - Low Pressure High Volume (Yes / No): Yes
HPLV - High Pressure Low Volume (Yes / No): No
Inlets / Diameter (No. / mm): 1 x Ø100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 0.75 / 1
Voltage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 750 x 400 x 1550
Nett Weight (kg): 30
