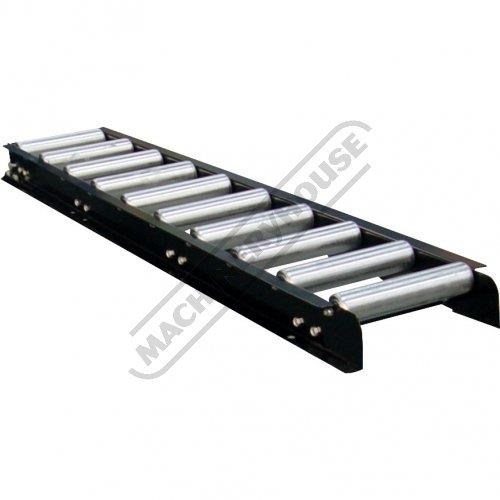

HAFCO RC-290S

RC-290S Roller Conveyor 290 x 1500mm Ø50mm Rollers

HAFCO RC-290S Roller Conveyor 290 x 1500mm Ø50mm Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L8125

Features:
Roller capacity of 60kg each
10 x Zinc plated steel rollers at 150mm pitch
Rollers are Ø50mm with commercial bearings
Frames are powder coated
Conveyor is pre-assembled with 4 cross-members
Frames are pre-drilled at 75mm pitch to accept ``Optional 9 rollers`` totalling to 19 rollers

Please Note:
Roller load capacity is calculated on even weight distribution over entire roller
Total load capacity is calculated on even weight distribution over entire roller conveyor system

Includes:
- 10 steel rollers @ 150mm pitch



Specifications:
ORDER CODE: L8125
MODEL: RC-290S
Roller Width (mm): 215
Roller Pitch (mm): 150
No. Rollers (No.): 10
Roller Diameter (mm): Ø50
Frame Length (L) (mm): 1500
Frame Width (W) (mm): 290
Frame Height (H) (mm): 80
Height Adjustment (mm): ~
Load Capacity with 2 x Support Legs (kg): 400
Load Capacity with 3 x Support Legs (kg): ~
