HAFCO METALMASTER MPB-2SH

MPB-2SH Hydraulic Pipe Bender - 2 Stage Pump Ø1/2 - Ø2`` NB Pipe Capacity Includes Ø1/2``, Ø3/4``, Ø1``,

HAFCO MPB-2SH Hydraulic Pipe Bender - 2 Stage Pump Ø1/2 - Ø2`` NB Pipe Capacity Includes Ø1/2``, Ø3/4``, Ø1``, Ø1-1/4``, Ø1-1/2``, Ø2`` Cast Steel Formers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P064

WATER PIPE BENDER

Features:

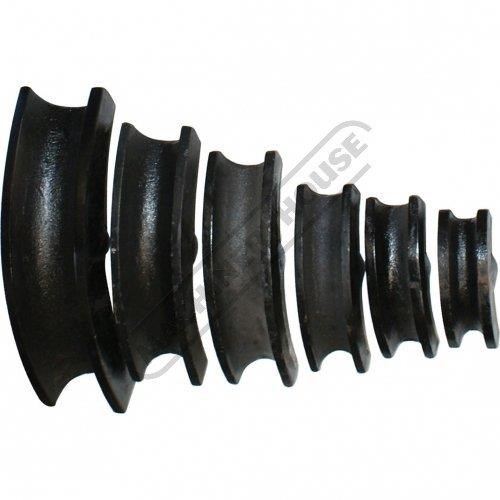

6 cast steel pipe formers to suit (Ø1/2`` Ø3/4`` Ø1`` Ø1-1/4`` Ø1-1/2`` Ø2`` water pipe)
2 stage pump with Ø31.8mm spigot
HYDRAULIC RAM - Requires less effort to bend pipe than bottle jack
Designed to work horizontally
Quick action flip over top frame to easily remove pipe
Quick & easy to adjust guide pins to suit pipe
Bends pipe up to a maximum of 90º

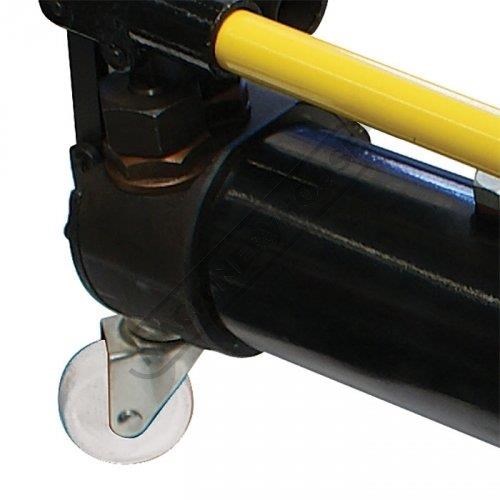

3 caster wheels rear wheel swivels

Includes:
- Pipe Formers:
- (Ø1/2`` Ø3/4`` Ø1`` Ø1-1/4`` Ø1-1/2`` Ø2``)



Specifications:
ORDER CODE: P064
MODEL: MPB-2SH
Material (Type): Pipe
Material Section (Type): Round
Machine (Type): Manual Hydraulic
Hydraulic Jack Size (Tonne): 12 - 2 Stage Pump
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2`` - Ø2``
Round Tube Range (OD) - Mild Steel (inch / mm): ~
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ~
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ~
Solid Rod - Mild Steel (inch / mm): ~
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): ~
Centre Line Radius - Minimum (CLR) (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): 1/2``, 3/4``, 1``, 1-1/4``,
Pipe Formers Included (inch / mm): 1-1/2``, 2``
Spigot Size on Ram (inch / mm): 31.8
Angle Capacity (deg): ~
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 50
