Contact Seller
Features
| Title | HAFCO METALMASTER EB-330FAS |
| Type | Engineering - Fabrication |
| Sub Type | Cutting Equipment |
| Class | Band Saw |
| Make | HAFCO METALMASTER |
| Model | EB-330FAS |
| Sale Price | $20,450 GST Exclusive |
| Listing Type | New |
| Stock Number | 886818 |
| RefCode | TA1266375 |
Description

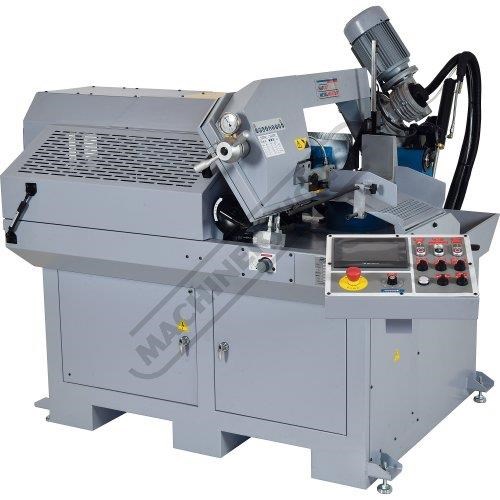

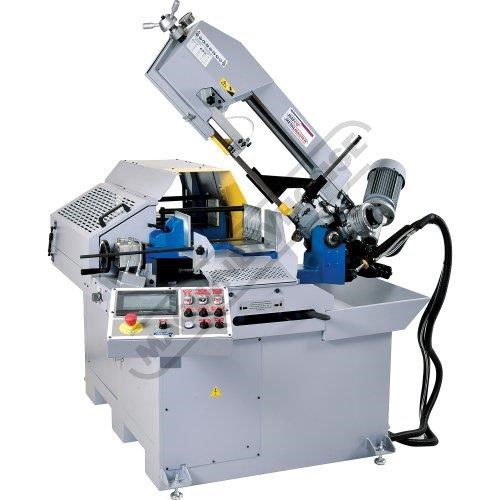

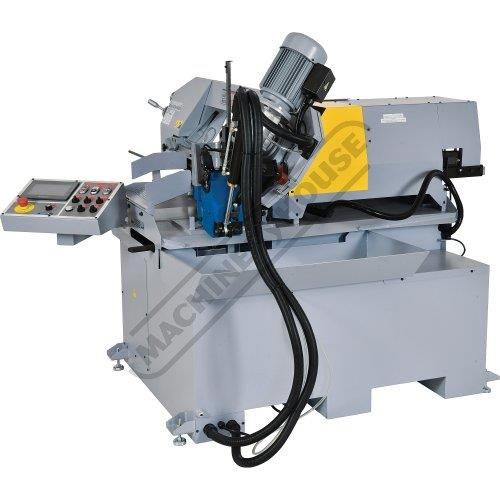

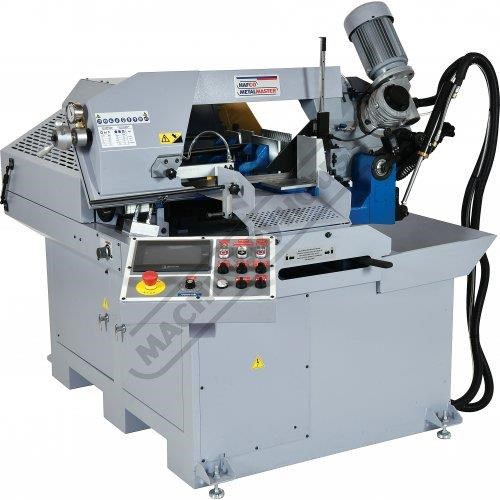

EB-330FAS NC Automatic Metal Cutting Band Saw - Swivel Head & Hitch Feed 7" Touch Screen Controller,
HAFCO-METALMASTER EB-330FAS NC Automatic Metal Cutting Band Saw - Swivel Head & Hitch Feed 7" Touch Screen Controller, Inverter Variable Blade Speed Control, Mitre Cuts Up To 60º & Hydraulic Vice Clamping 345 x 230mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B080

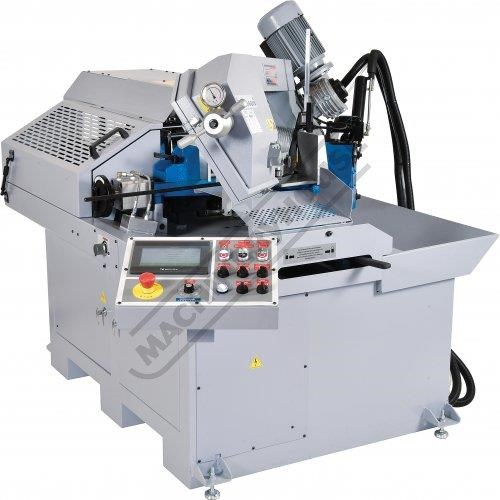

The Hafco Metalmaster EB-330FAS is a fully automatic hitch feed, single mitre bandsaw designed for repetitive cutting of small to medium sized sections in single or pack forms.
Features:
345 x 230mm (W x H) rectangular capacity
Mitre cutting from 0° to 45° right in automatic cycle and from 0° to 60° right in semi-automatic cycle

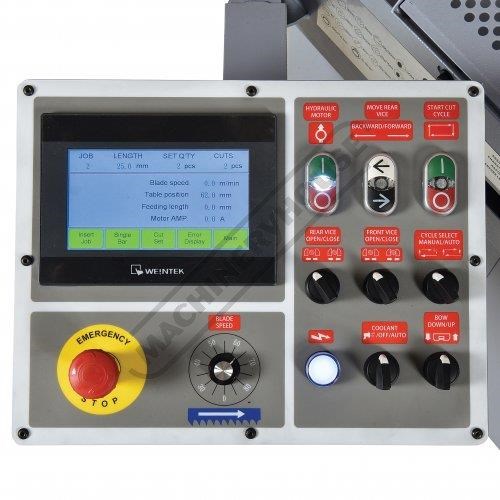

7" NC touch screen controller
Programmable controller with 20 stored programs
Bi-metal blade function retracts vice after cut to prevent blade rubbing on return
Trim cut function allows to start your cutting from a square & clean surface

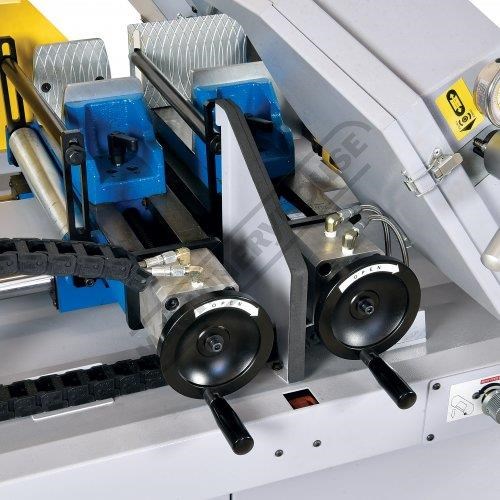

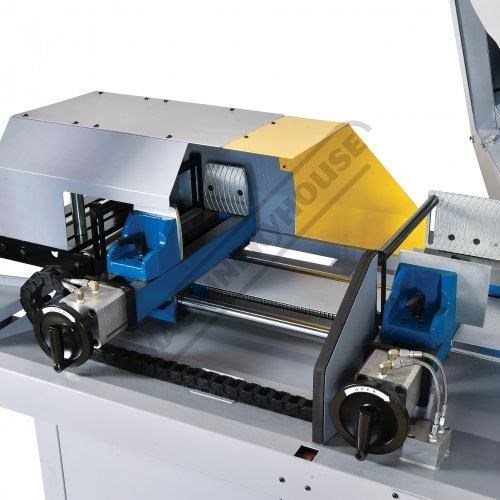

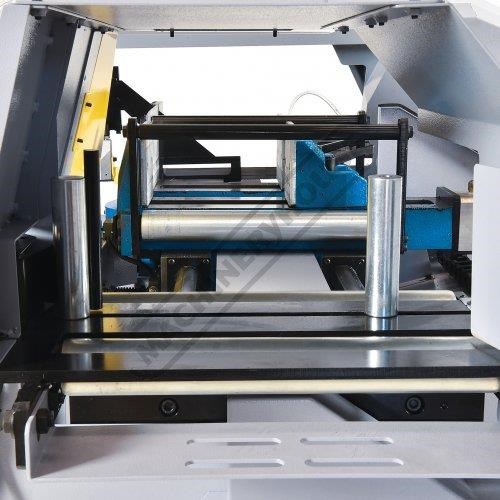

500mm stroke hitch feed vice with ballscrews & servo driven motor
Inverter controlled infinitely variable blade speed 25-85mpm

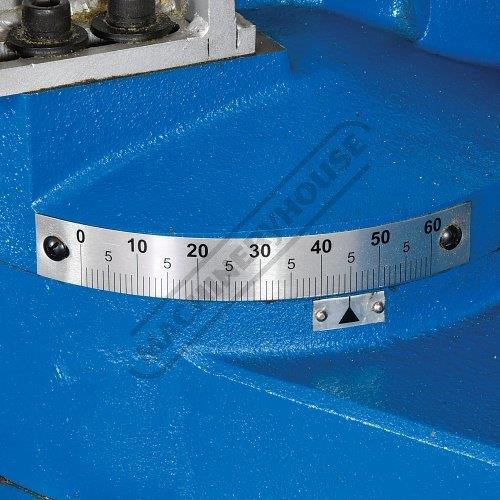

Swivel head for single mitre cutting to 60º degrees
Quick action lock/release lever for swivel head

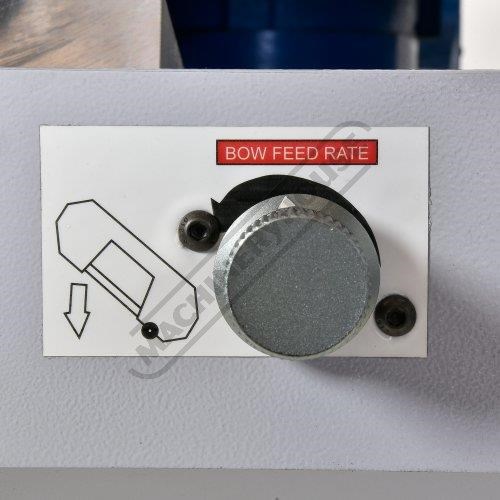

Adjustable hydraulic cylinder for auto feed
Automatic hydraulic vice incorporated with a manual hand wheel
Vibration free low noise operation ensures clean & high precision cuts
Mechanical device (position sensor) that allows the saw frame to lower quickly toward the material and detect automatically the start-cut point

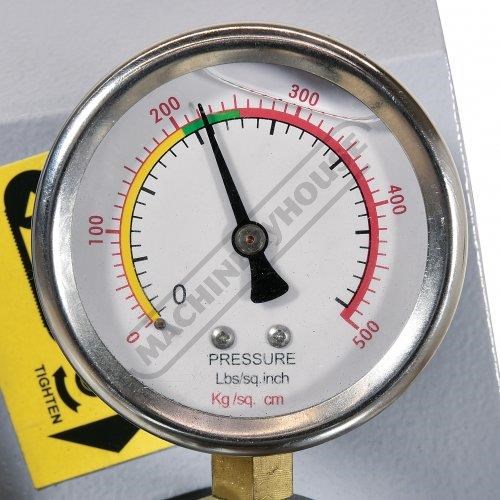

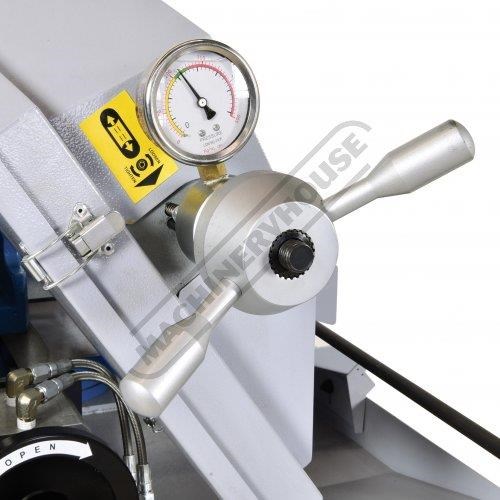

User friendly blade tension system with gauge

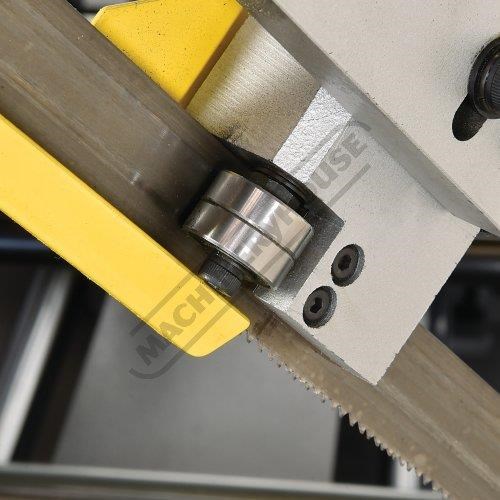

Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction

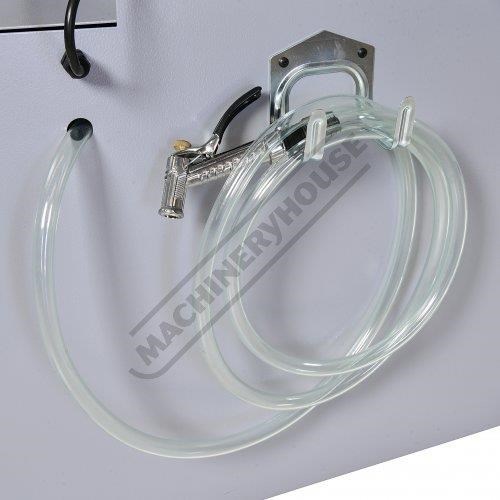

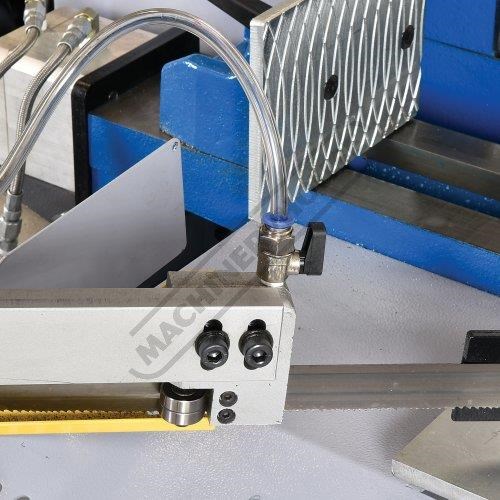

Coolant system incorporating a wash down hose with trigger gun
Machine stand with integrated coolant tank with easy access for cleaning

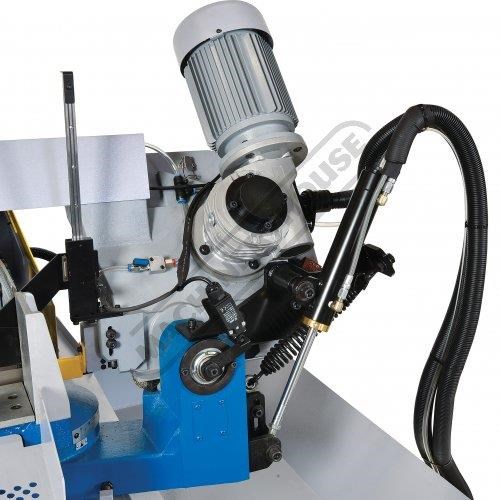

Heavy-duty gear drive system

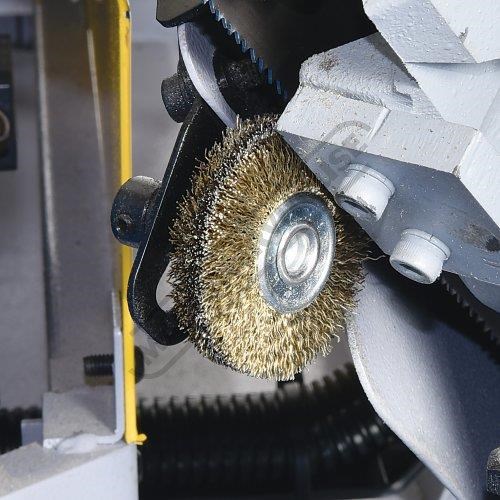

Blade cleaning brush
Made in Taiwan
Specifications:
ORDER CODE: B080
MODEL: EB-330FAS
Operation Type: Swivel Head
Operation Type: Automatic Hitch Feed
Round @ 90º (mm): 260
Round @ 45º (mm): 240
Round @ 60º (mm): 130
Square @ 90º (mm): 230 x 230
Square @ 45º (mm): 215 x 215
Square @ 60º (mm): 130 x 130
Rectangle (W x H) @ 90º (mm): 345 x 230
Rectangle (W x H) @ 45º (mm): 225 x 215
Rectangle (W x H) @ 60º (mm): 150 x 130
Coolant System: Yes
Table Working Height (mm): 930
Cutting Head Beam Type: Fully Automatic
Cutting Head Beam Return: Auto Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Adjustable Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 25-85
Blade Size (L x W x T) (mm): 2965 x 27 x 0.9
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 760
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B080'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
