HAFCO HGC-1T

HGC-T1 Girder Clamp 1 Tonne Capacity 75-230mm Beam Width

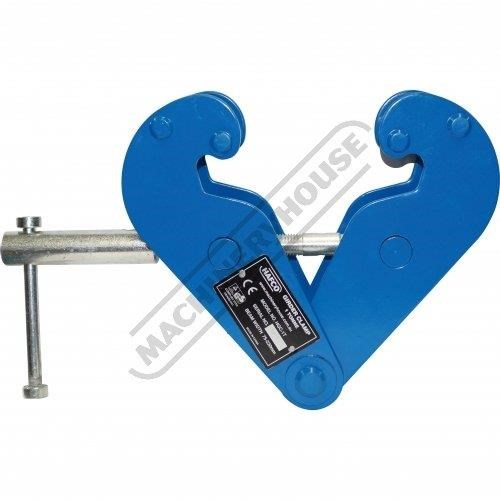

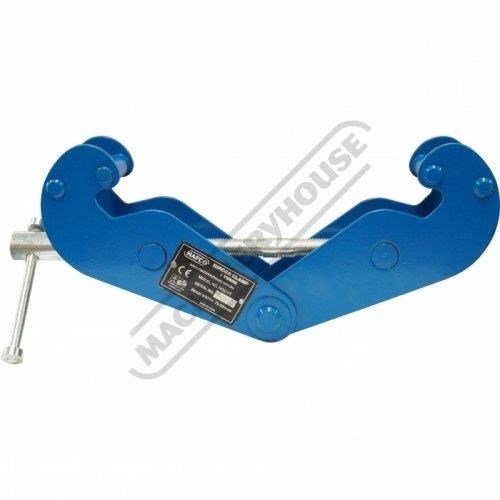

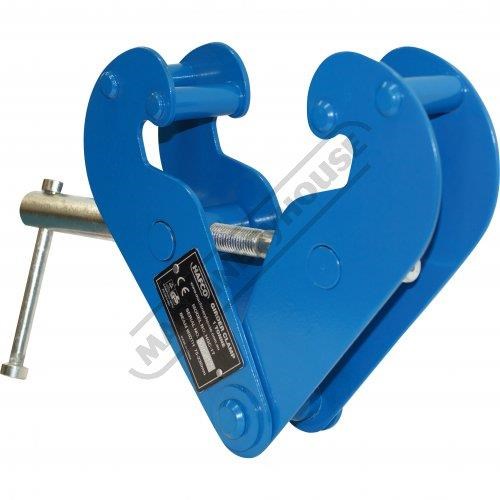

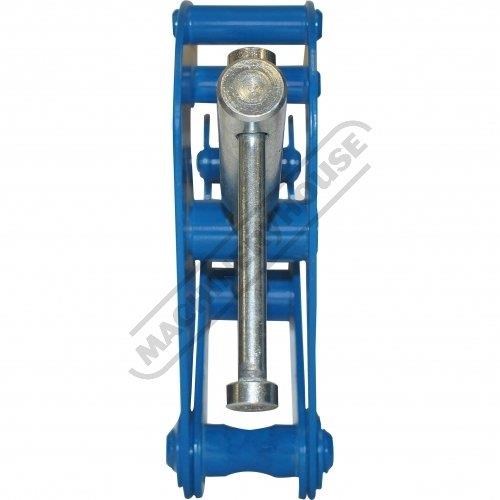

HAFCO HGC-T1 Girder Clamp 1 Tonne Capacity 75-230mm Beam Width
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C146

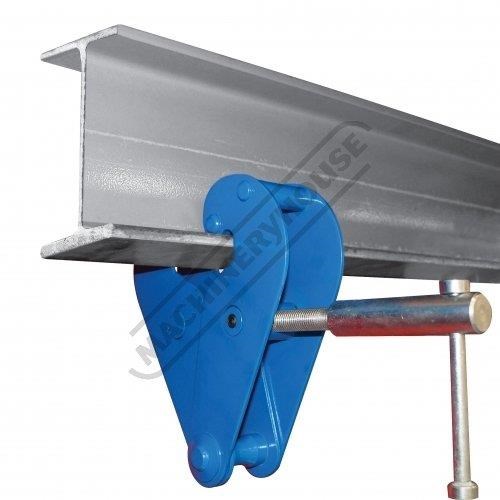

The 1-tonne Girder Clamp is a versatile, secure, and easy-to-use solution designed for attaching lifting equipment to structural steel beams. Engineered for reliability, this clamp provides a safe anchorage point for hoists, chain blocks, and lifting devices during material handling operations.

Manufactured from high-strength alloy steel, the clamp features a robust, adjustable jaw opening that allows it to fit a wide range of beam sizes. Its simple screw-thread locking mechanism ensures a firm and stable grip on the beam, preventing slippage while maintaining ease of installation and removal.

Ideal for workshops, warehouses, construction sites, and maintenance applications, the 1T Girder Clamp delivers a dependable lifting connection that complies with relevant safety standards. Whether used for fixed lifting points or temporary lifting setups, it offers both strength and convenience in a compact design.

Features:
Robust all steel construction
Manually adjustable to various beam widths
Provides a connection point for hoists
Can be used in different locations as required
Each girder clamp is supplied with an individual serial number stamped on both the clamp body and the stainless-steel identification plate.
Adjustable design to accommodate a wide range of beam and flange widths.
Simple quick mounting suitable for both permanent installations and temporary lifting applications.
Special clamp jaw design applies load away from the edge of the flange reducing flange stress.Built-in load bar provides reduced headroom
Additional security is provided by threaded adjustment screws secured by using the countersunk allen head screw to lock the threaded adjustment bar in position with a copper flat.
QR Code scan for quick manual specifications
Rated Capacity 1 Tonne
Beam Size range 75mm-230mm
Complies to AS 4991


Specifications:
ORDER CODE: C146
MODEL: HGC-S2-T1
Type: Girder Clamp
Style: Fixed - Manual
Load Capacity (Tonne): 1
Beam Width (mm): 75 - 230
