HAFCO FLA-2T

FLA-2T-2G Forklift Jib Attachment WLL 2 Tonne Capacity

HAFCO FLA-2T-2G Forklift Jib Attachment WLL 2 Tonne Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C195

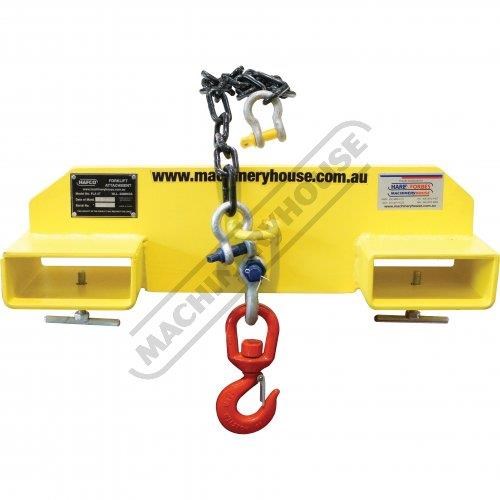

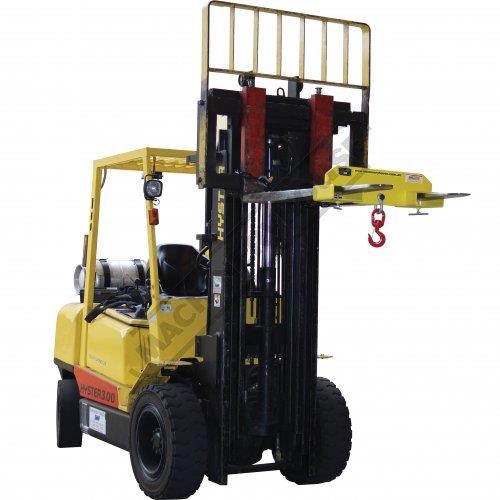

The FLA-2T Forklift Jib Attachment effectively converts a standard forklift into a versatile mobile crane, enabling operators to lift and manoeuvre awkward or oversized loads that cannot be safely handled with conventional forklift tines. Engineered with an excellent strength-to-weight ratio, this heavy-duty attachment is supplied complete with a safety hook, shackle and safety chain for secure and reliable operation.

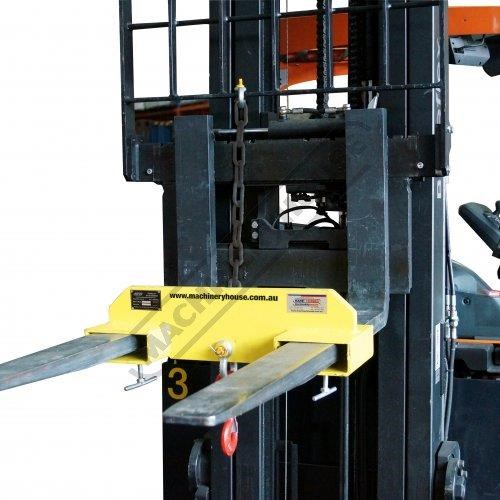

The FLA-2T-2G is rated at a Working Load Limit (WLL) of 2 tonne (2000 kg) when correctly positioned and secured on the forklift tines, with the load point located 600 mm from the forklift mast and the safety chain fully attached.

Important:
In accordance with AS 2359.1, forklifts must be de-rated by 20% when using lifting attachments. Ensure the forklift used has a minimum rated capacity of 2.5 tonne before deration to safely support the 2 tonne WLL of this jib attachment -

Features:
Transforms a standard forklift into a versatile mobile crane ideal for lifting oversized or awkward loads
Heavy-duty steel construction with excellent strength-to-weight ratio
Hot-dip galvanised finish for superior corrosion resistance and long-lasting durability

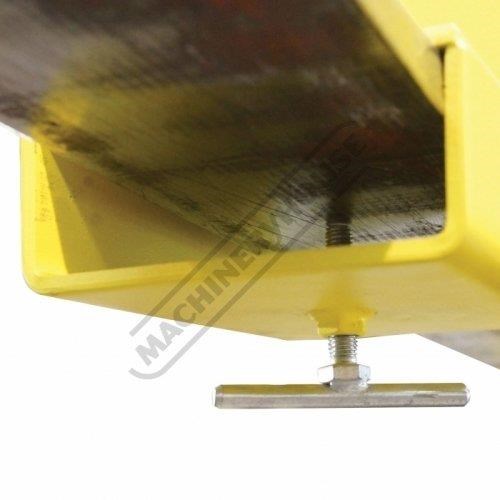

Precision-designed fork pockets for secure and stable engagement

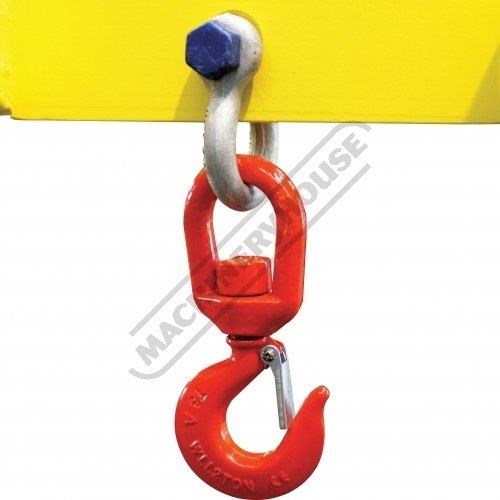

Supplied complete with safety hook shackle and safety chain
Rated WLL 2 tonne (2000 kg)
Each attachment is individually serialised and visually inspected and tested
Quick and simple installation onto forklift tines
Designed in accordance with AS 2359.1


Specifications:
ORDER CODE: C195
Lifting Capacity (WLL) (Tonne): 2
Width (mm): 625
Safety Chain Length (mm): 1500
Fork Pocket Size (mm): 180 x 80
Fork Pocket Centre (mm): 445
Horizontal Centre of Gravity (HCG) (mm): 312.5 forward from the back edge of the jib
Vertical Centre of Gravity (VCG) (mm): 62
Swivel Hook with Safety Latch (Yes / No): Yes
Standard (No.): AS 2359.1
Nett Weight (kg): 25.5
