FAM 30B

Sale Price: POA

Call now: 03 8373 7021

Phone

Contact Seller

Phone: 03 8373 7021

Email Advertiser:

Name

Phone

Email Address

Has this sold?

Can I arrange a viewing?

Your Message

Remember my details

Subscribe to future communications

For security reasons, do not select "Remember my details" if you are using a shared computer.

View our privacy policy, collection notice and terms and conditions to understand how we use your personal information.

Dealer

FA Maker

11-19 Boundary Rd

Laverton North, VIC

Visit website

Features

Title	FAM 30B
Type	Engineering - Fabrication
Sub Type	Miscellaneous Equipment
Make	FAM
Model	30B
Sale Price	POA
Listing Type	New
Stock Number	I.00020353
RefCode	TA1036500

Description

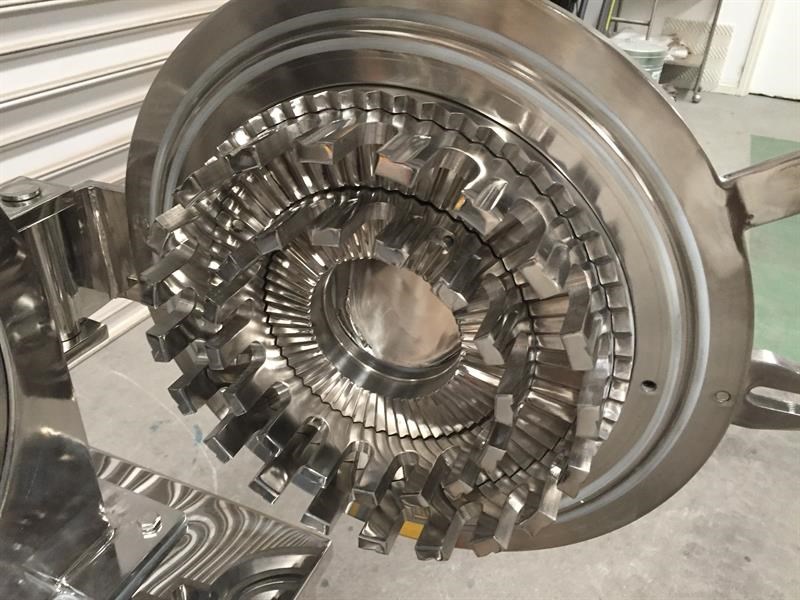

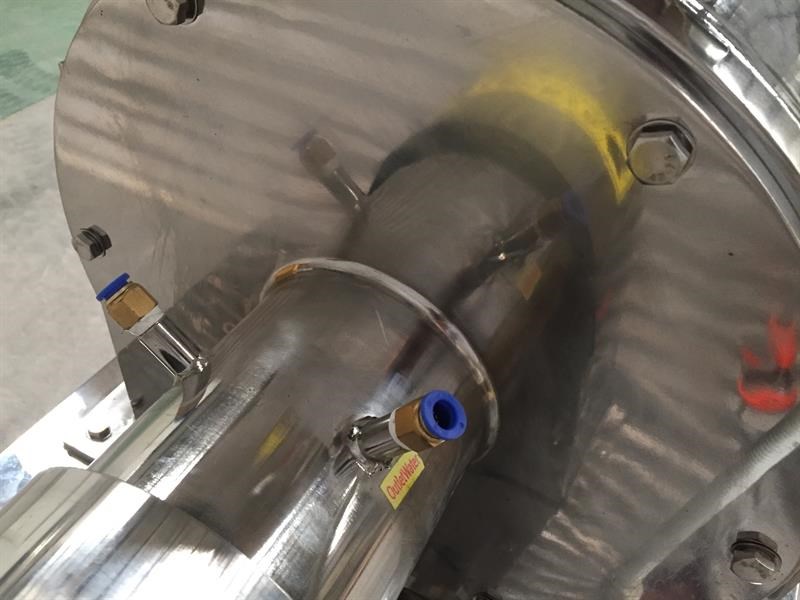

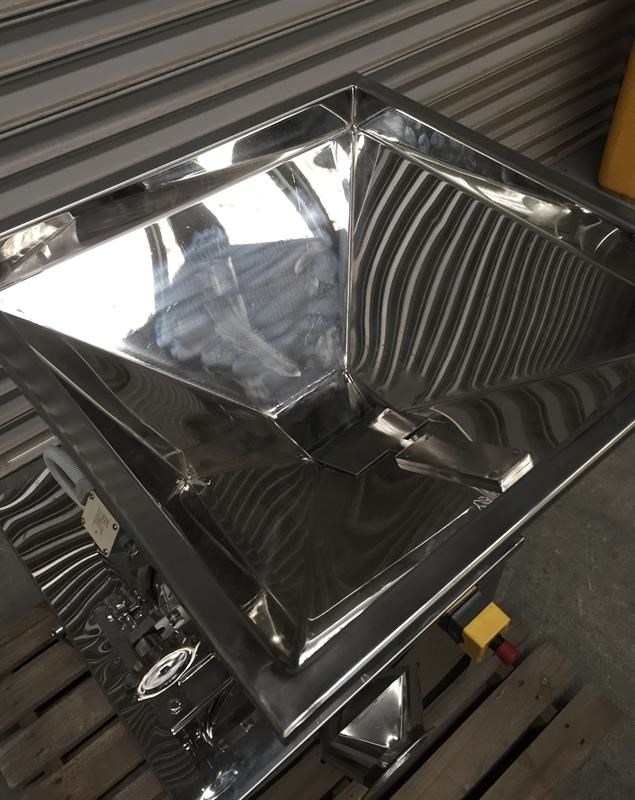

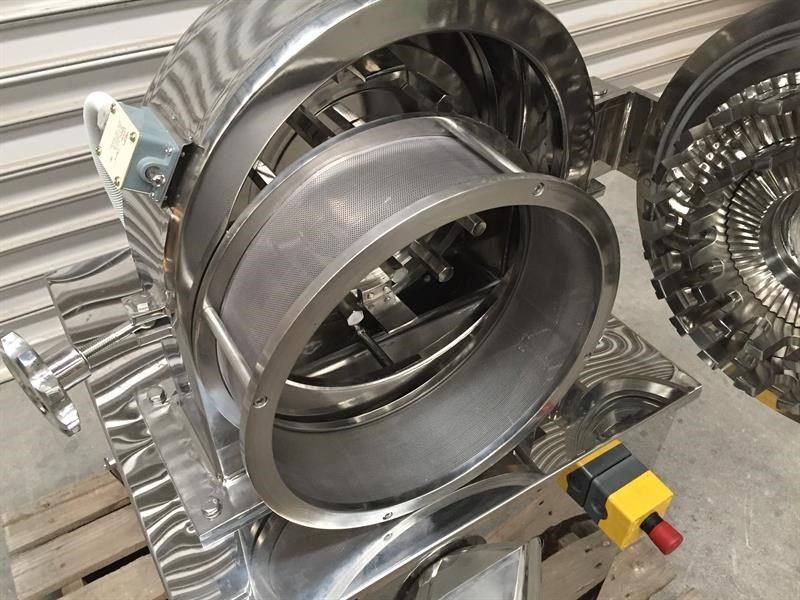

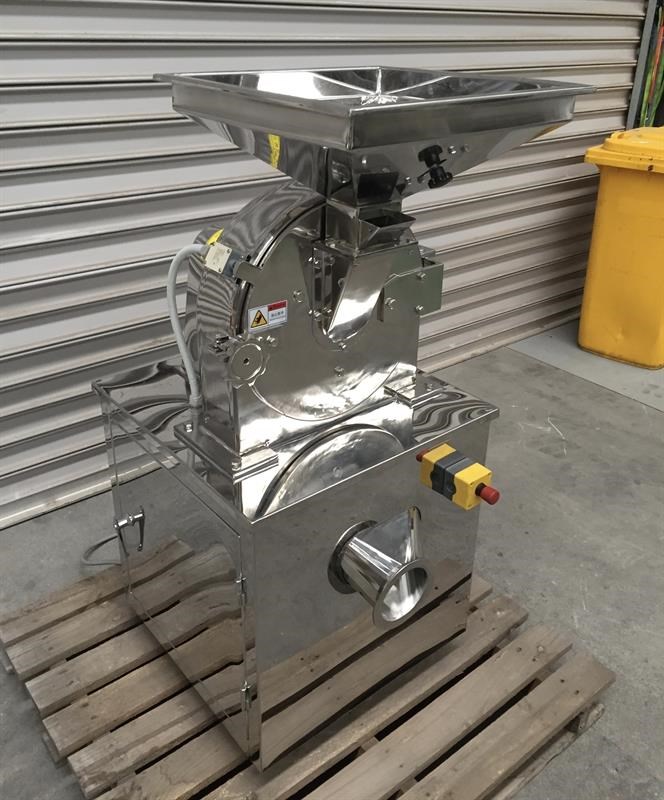

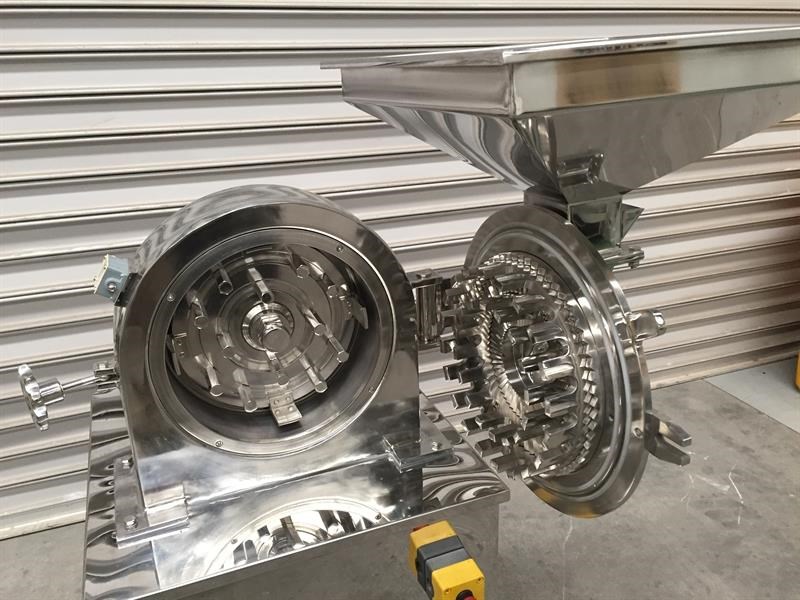

NEW - St/Steel Pin Mill These pin mills are great for fine grinding of dry materials. Product is fed into the hopper and then into the centre of the pin mill. Different screen sizes can be fitted to change the fineness of the output. The bearing housing is jacketed to help keep it cool if running for long periods of time. Screen diameter 320mm x 1mm screen hole size. Other screen sizes available on request. Finest screen that can be run in these mills is 0.5mm. Capacity up to 300kg/hr, Throat opening in hopper is 100mm x 100mm. Hopper size is 450mm x 450mm x 300mm deep Drive motor 5.5kw, 415V
