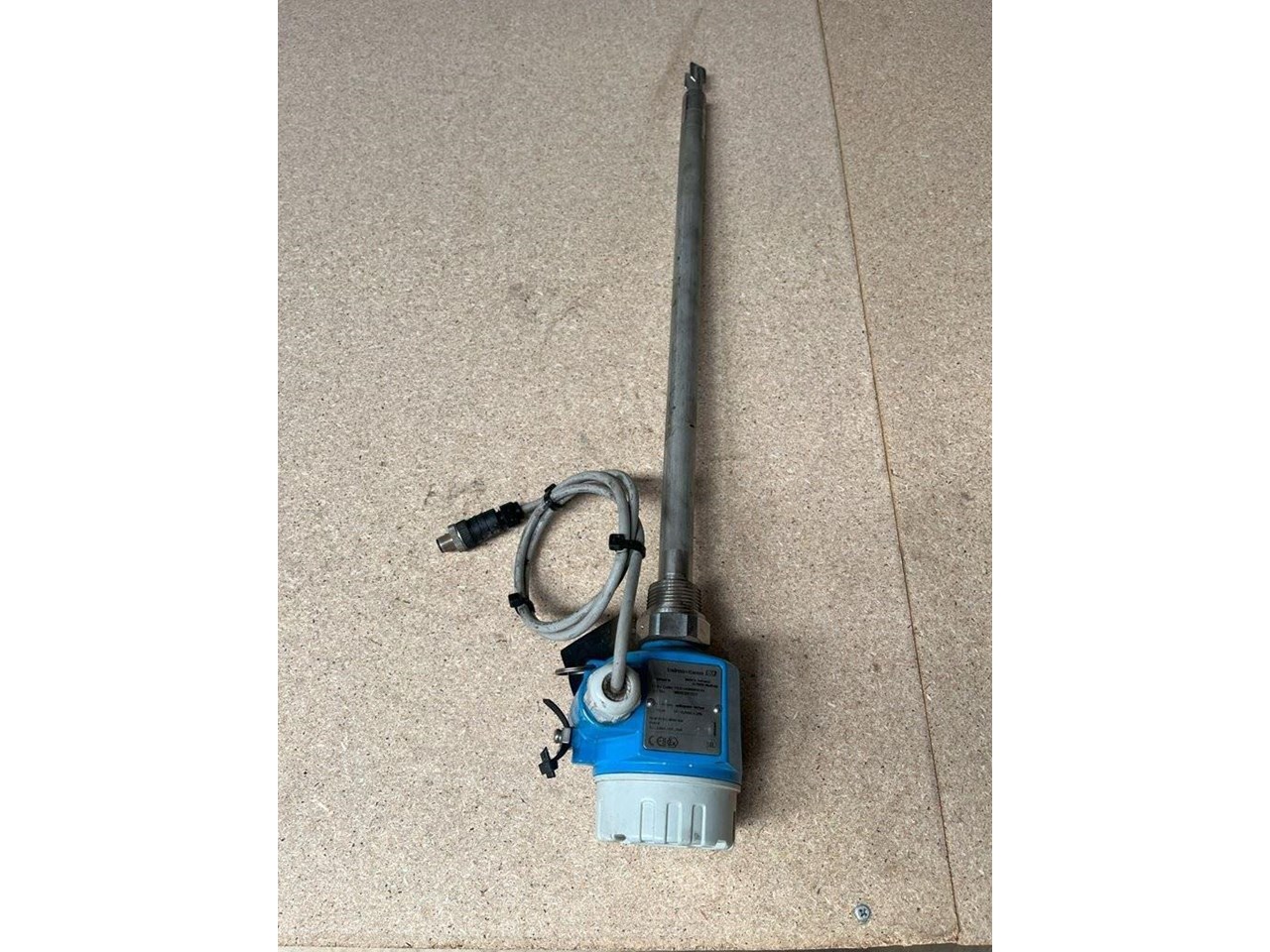

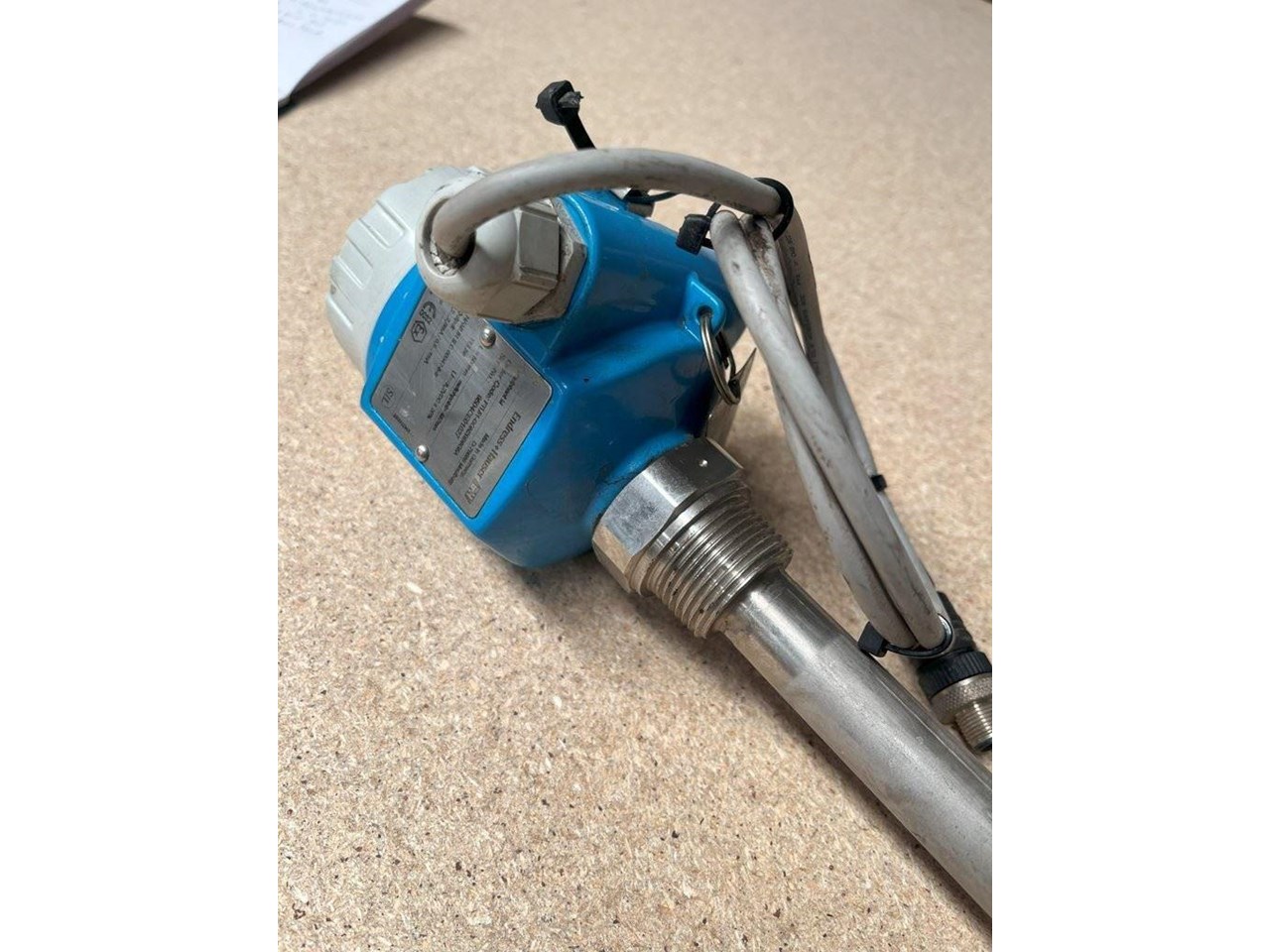

ENDRESS + HAUSER LIQUIPHANT M-FTL51

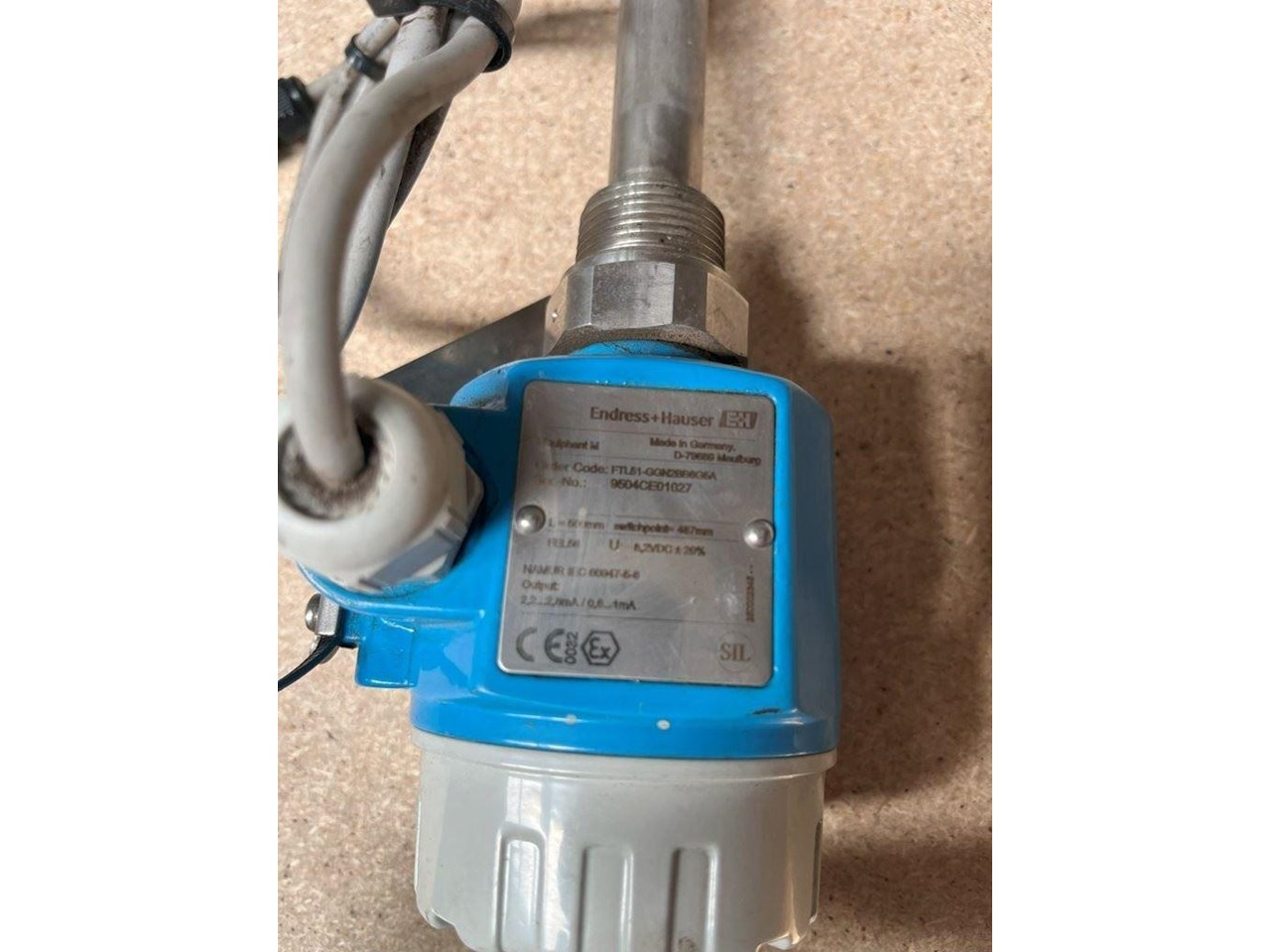

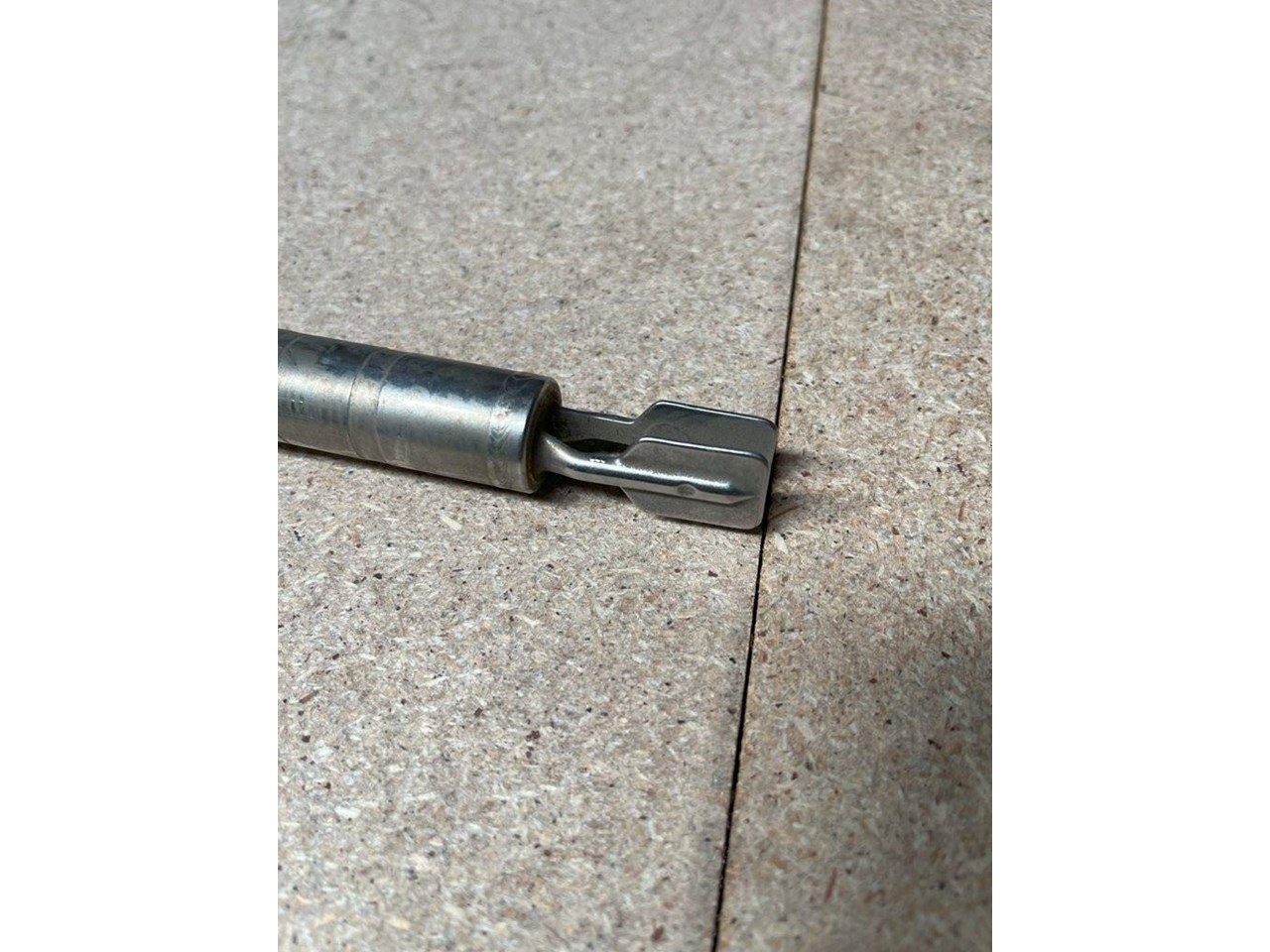

Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/ SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up. Benefits: - Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with IEC 61508/IEC 61511-1 - International explosion protection certificates and overfill protection certificate (WHG) - No calibration required, easy to start up - No mechanically moving parts: no maintenance, no wear, long operating life. Monitoring of fork for damage: guaranteed function - Second line of defense to protect the environment - Variety of standardized process connections for all applications - Stainless steel (316L) and high-corrosion resistant sensor material (Alloy) Make: Endress Hauser Model: Liquiphant M Model Number: FTL51-GGN2BB6G5A L= 500mm SwitchPoint 487mm FEL 56 U 8.2VDC /- 20 Percent Output 2.2.....2.5mA / 0.6.....1mA
