EFFYTEC HB32GP

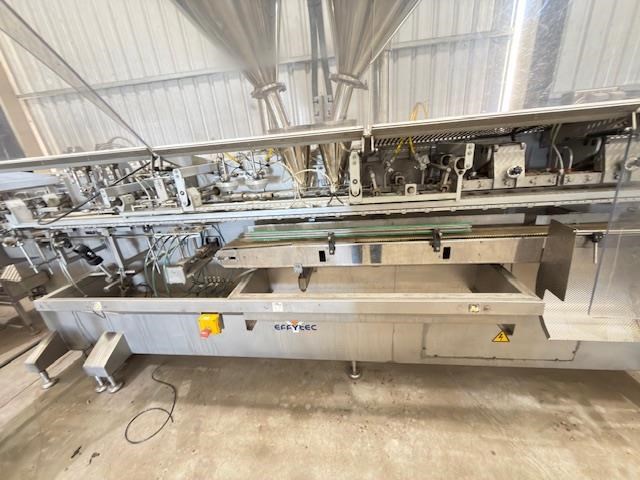

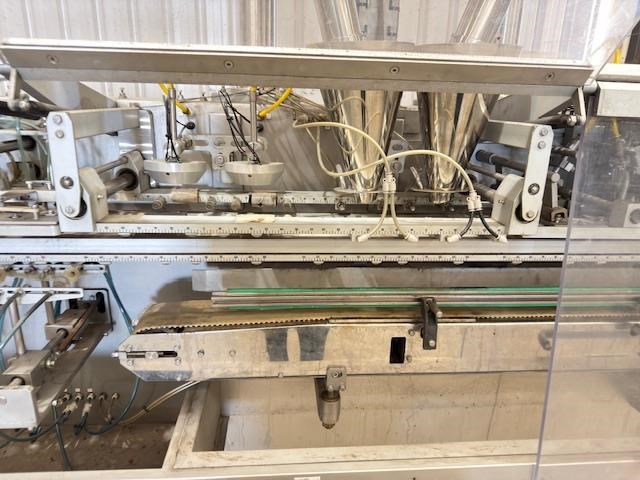

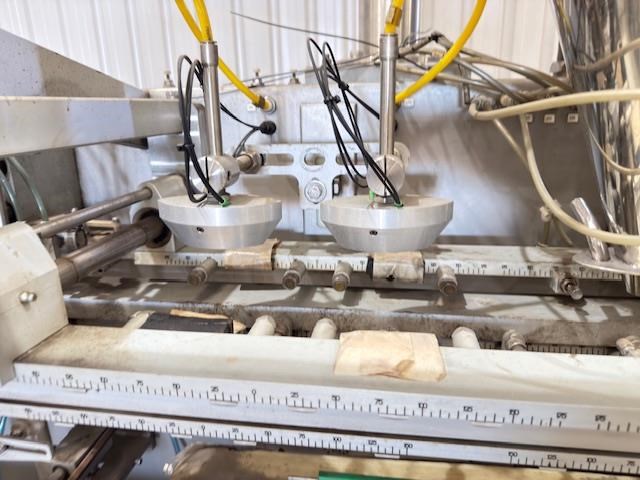

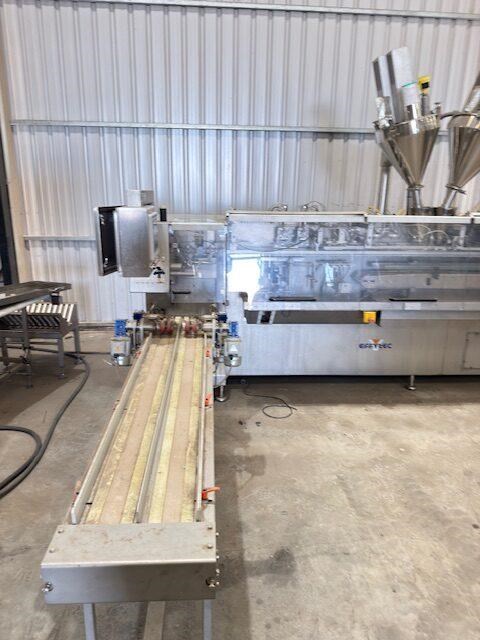

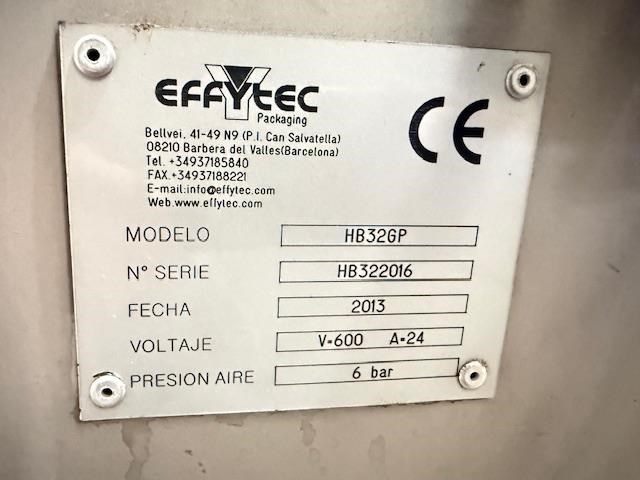

Used Effytec Duplex Premade Pouching Machine HB32GP Model: HB32GP Mfg. Date: 2013 Voltage: 480 Phase: 3 Hz: 50 Amps: 58 Air Pressure: 6 Bar Filling Stations: 2 Max Volume: 500 cc Max Output: 80 cycles/min Power Consumption: 20 kw Air Consumption: 350 l/min General Info: Effytec USA manufactures horizontal form-fill-seal pouch machinery and pre-made pouch fill-seal machinery for packaging all types of products in flat three or four-sided seal sachets, stand-up pouches with re-closable zipper or cap, or shaped pouches for the food, beverage, pharmaceutical, and cosmetic industries. Features: Product: Powder Weight or volume: 40g -300g Pouch style: Flat pre made doy pouch Dimensions requested: 127mm (4.5) x height to be confirmed, maximum 175mm Machine pouch size range (duplex mode) Duplex: Min. 57 x 130 mm Max. 160 x 175 mm Requested Production: 120 - 140ppm (60-70 cycles per minute) Final production will depend on product characteristics, as well as on the volume to be filled. Electrical Data: 480 V / 3 phase / 50Hz Internal & external reel core size: Internal 75mm as standard Filling stations: Two Gas Flushing: Yes
