MACFARLANE - 3.3MVA Crestchic Load Bank

MACFARLANE - 3.3MVA Crestchic Load Bank

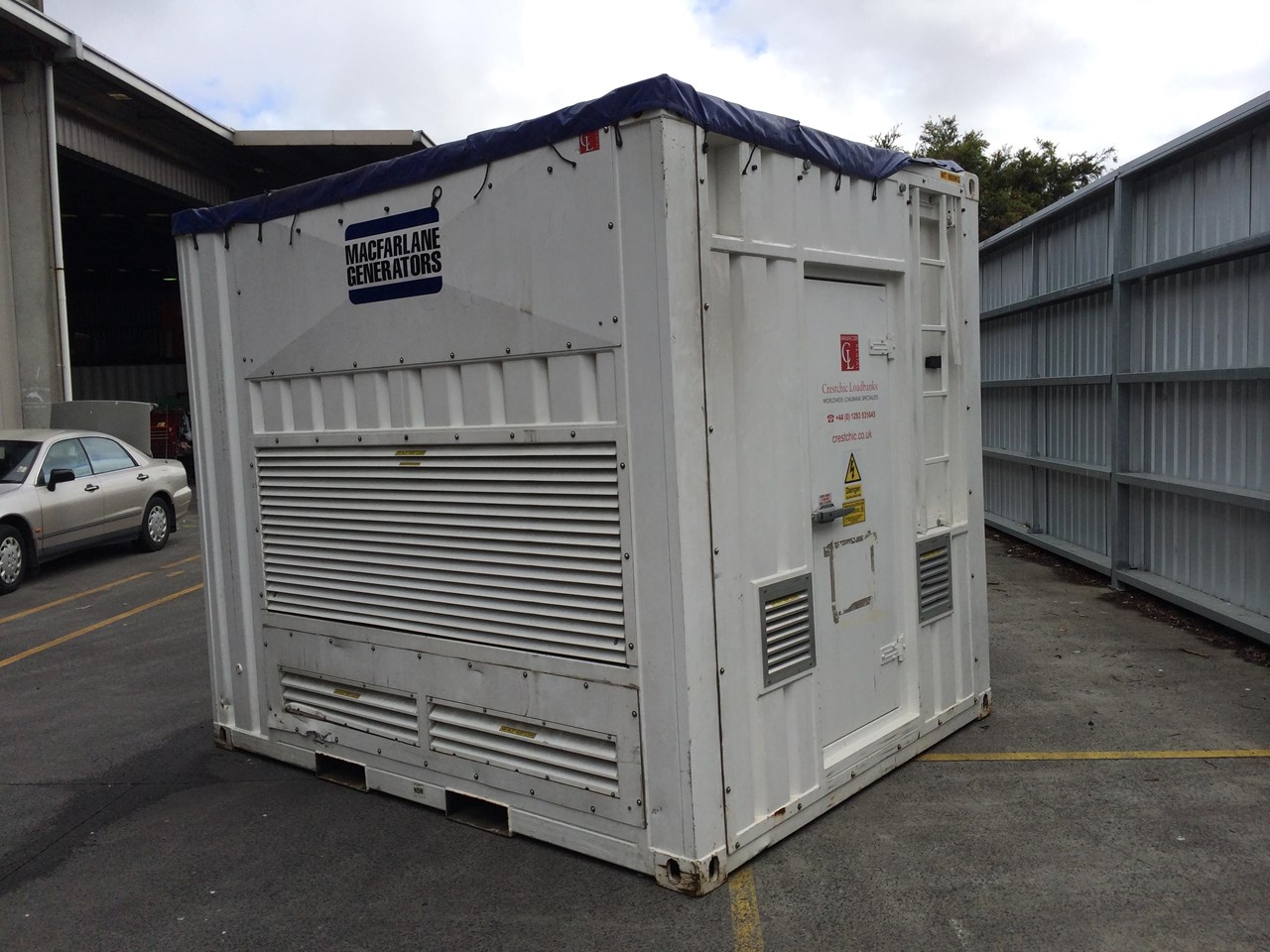

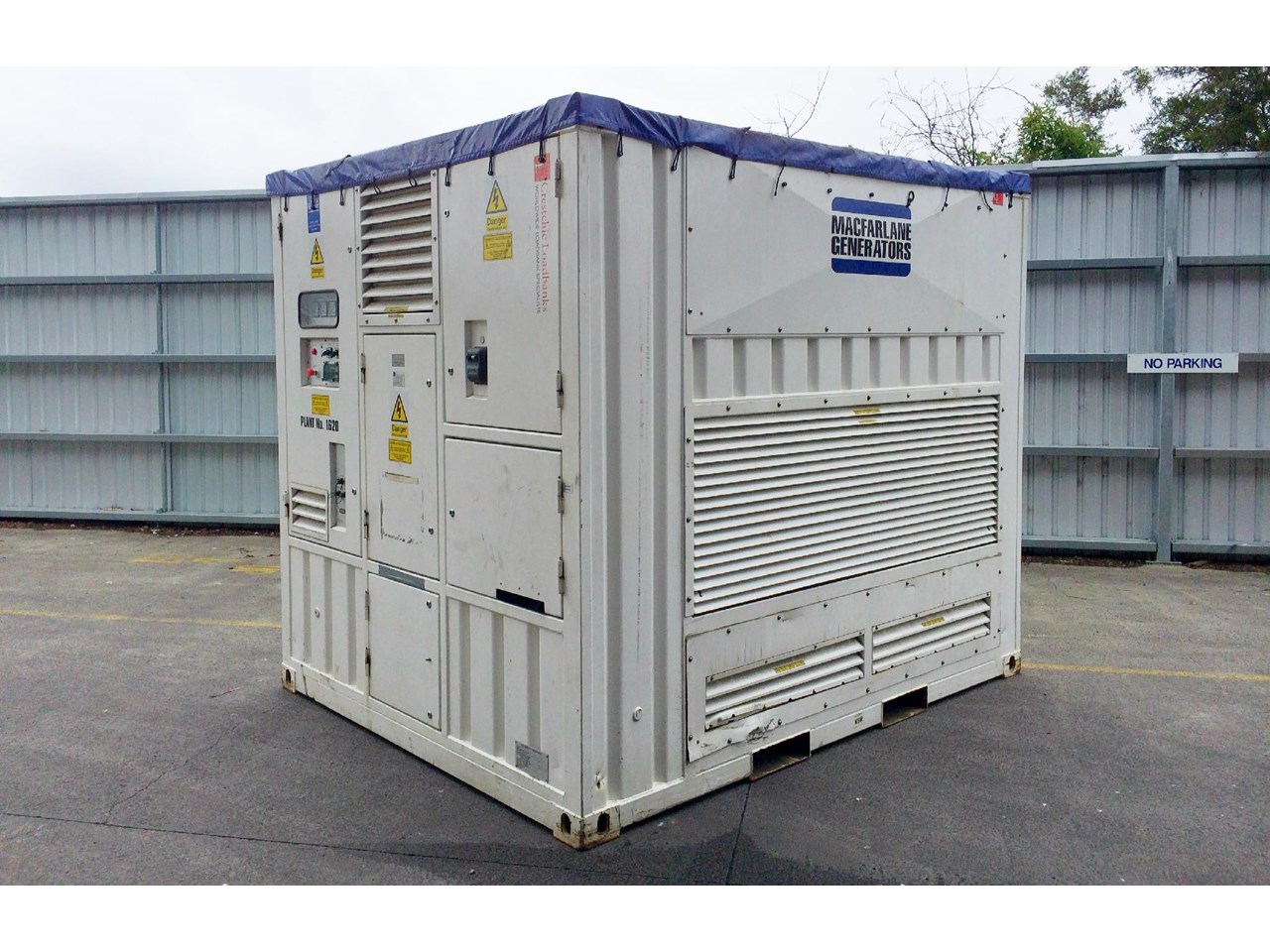

Crestchic 3.3MVA load bank is a containerised, customisable and reliable load bank available either hire or sale.

PC Data Logging Capabilities
Graph, download and print professional diagnostic reports

Customisable Load
Can handle larger load with system extension

Reliability
Highly reliable unit

Comprehensive Support
Full range of accessories (i.e. cables, cable guards etc.)

Specifications:

Capacity: 3.3MVA/ 2.64kW 415 volts, 50 Hz, 3 Phase, 0.8 PF.

Design Voltage: 415 volts, 50 Hz. Other voltages and frequencies available on request

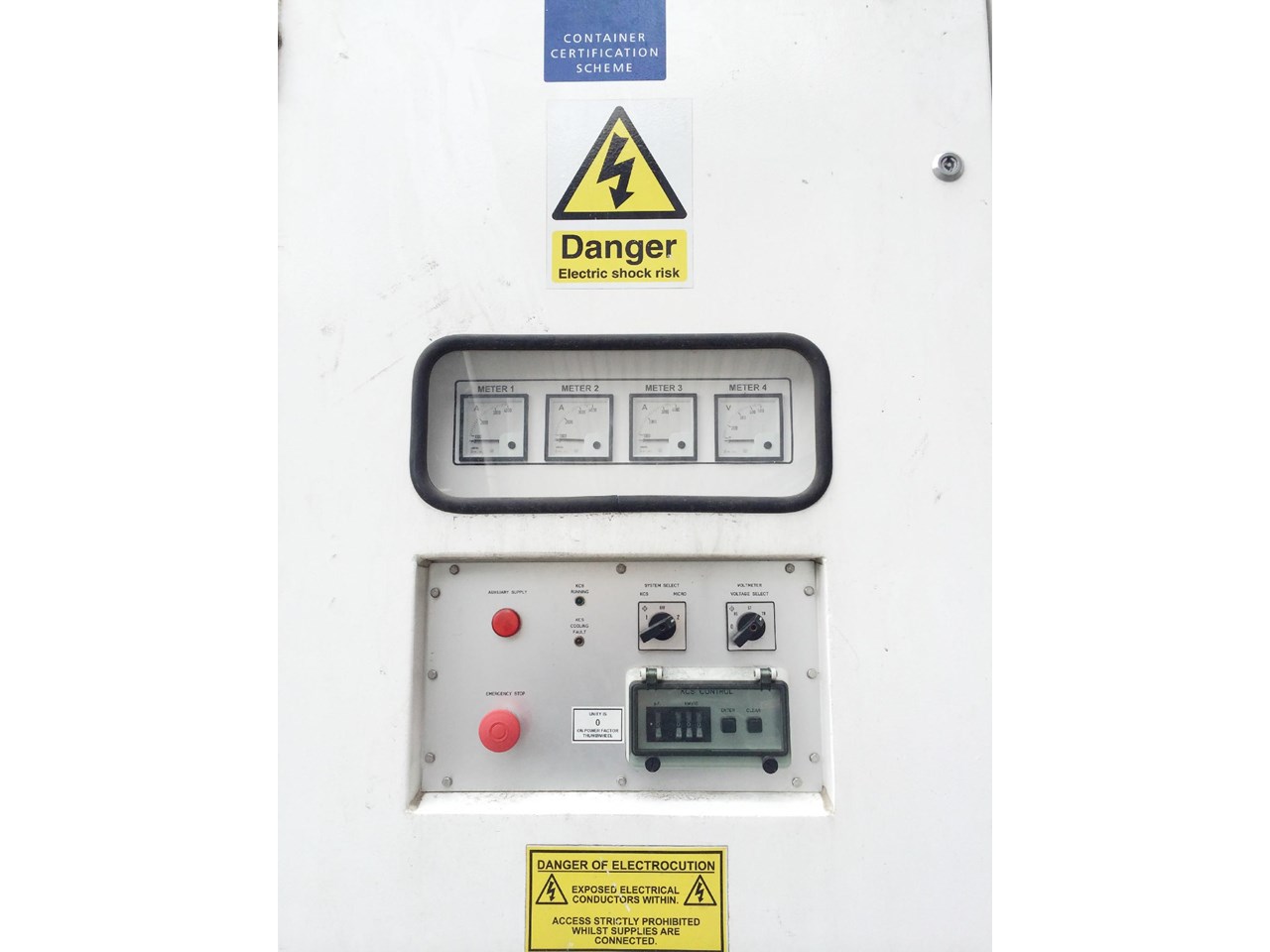

Control System: Hand-held, manual or remote PC control systems

Ambient Parameters: Maintain maximum capacity in ambient conditions up to 50° C

Air Flow: Side intake, top exhaust

Load Steps: A switching resolution of 1kW, 1kVAR is maintained at all loads up to 33mVA

System Extension: System extension for larger loads possible

Fan and Control Power: Via main bus or 70 amp, 415 volt, 3 phase external auxiliary supply


Established in Victoria in 1949, Macfarlane Generators has grown to serve Queensland, New South Wales and Perth since 1982. With over 80 specialized staff members, we cater to industrial, commercial, domestic, and recreational power needs. Partnering with global manufacturers, we offer the best generator sets on the market. Our services include spare parts, technical support, routine maintenance, and custom solutions. Whether new or used, we ensure reliable power solutions for a diverse range of applications.

• CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION

Go to the Macfarlane Generators showroom on to see the rest of our stock, send Macfarlane a message about the item you are interested in, or give Macfarlane Generators a call, we are happy to answer any of your questions.
