CMC CMC S19HD SPIDER LIFT

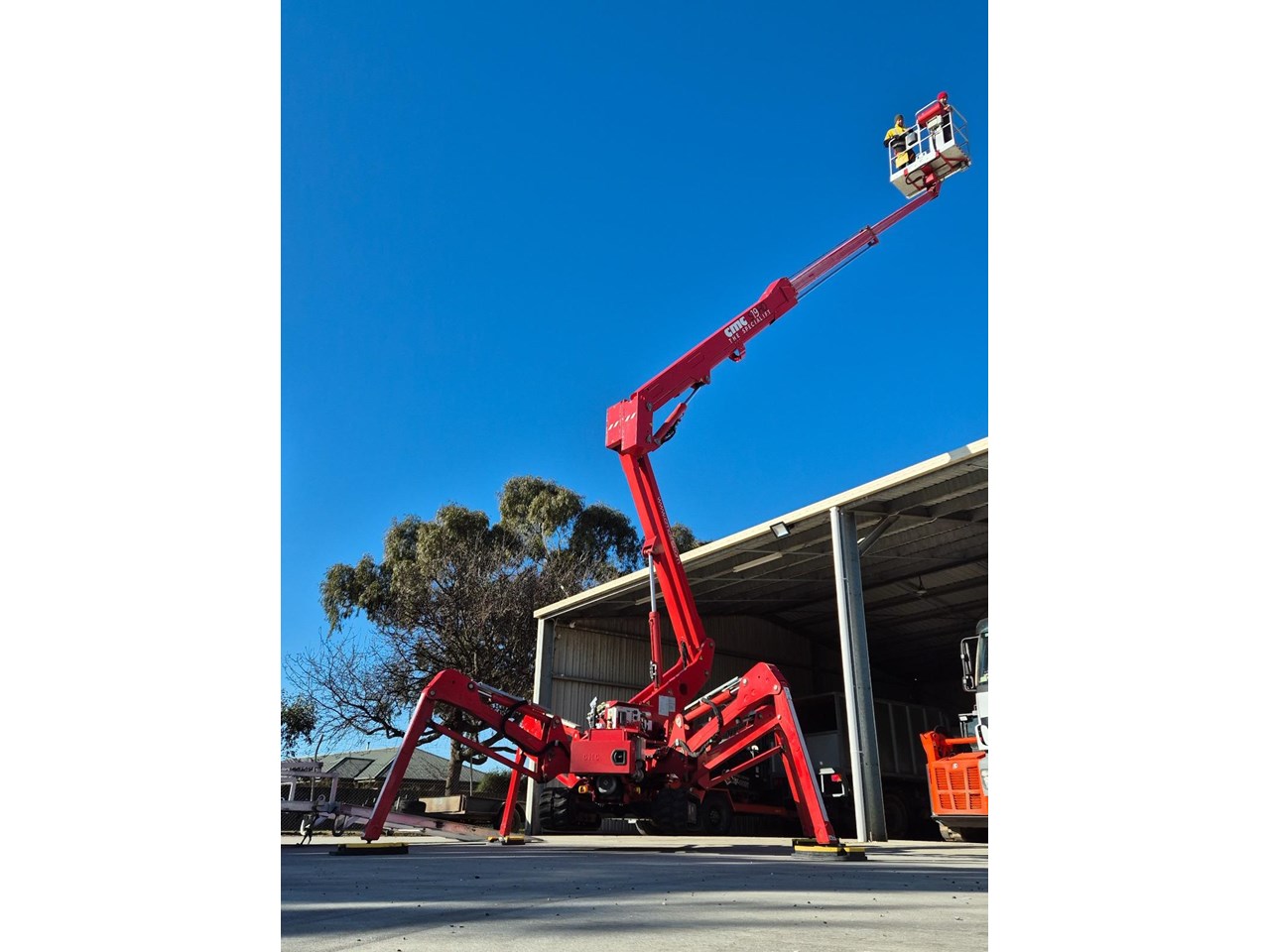

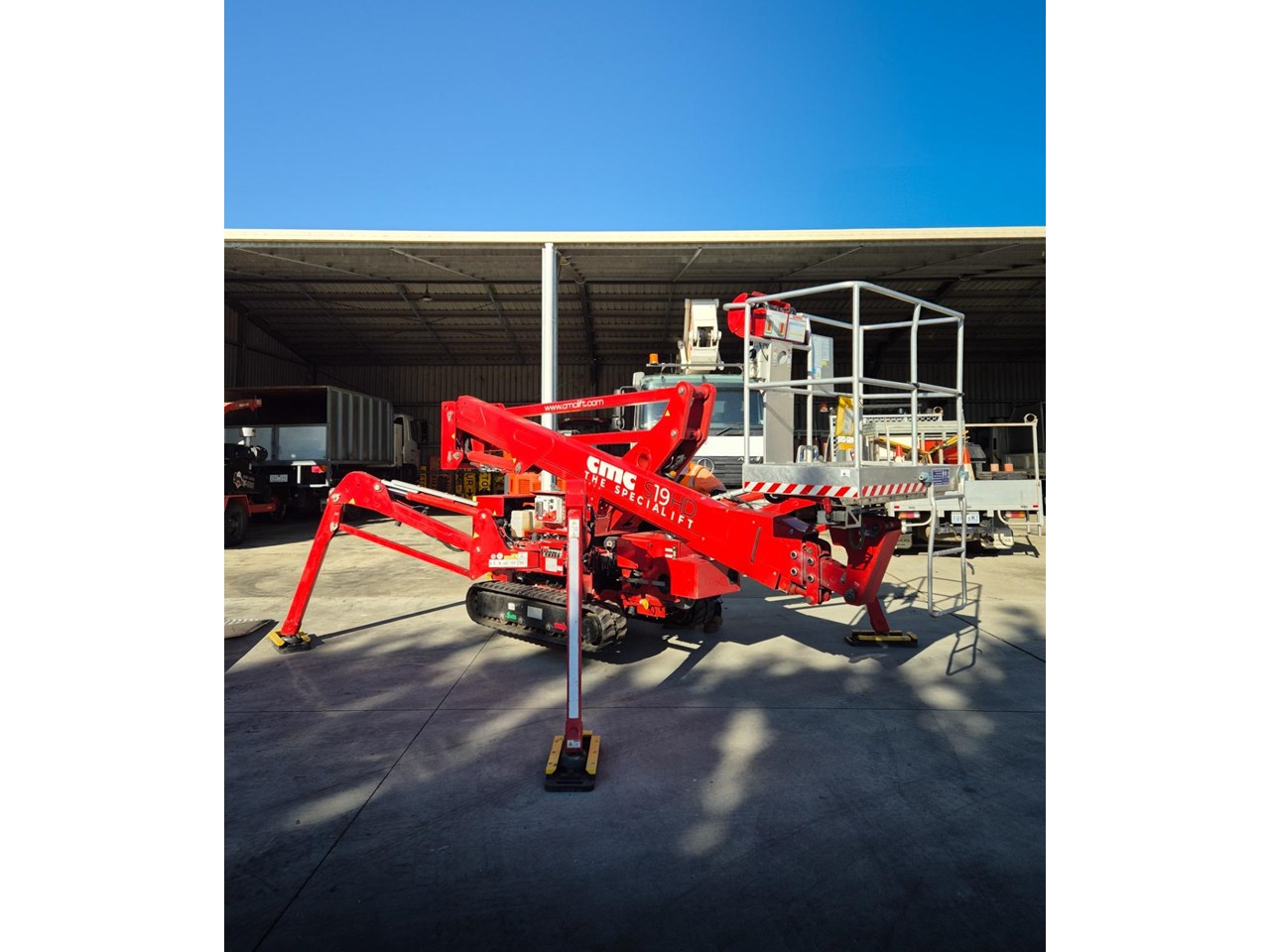

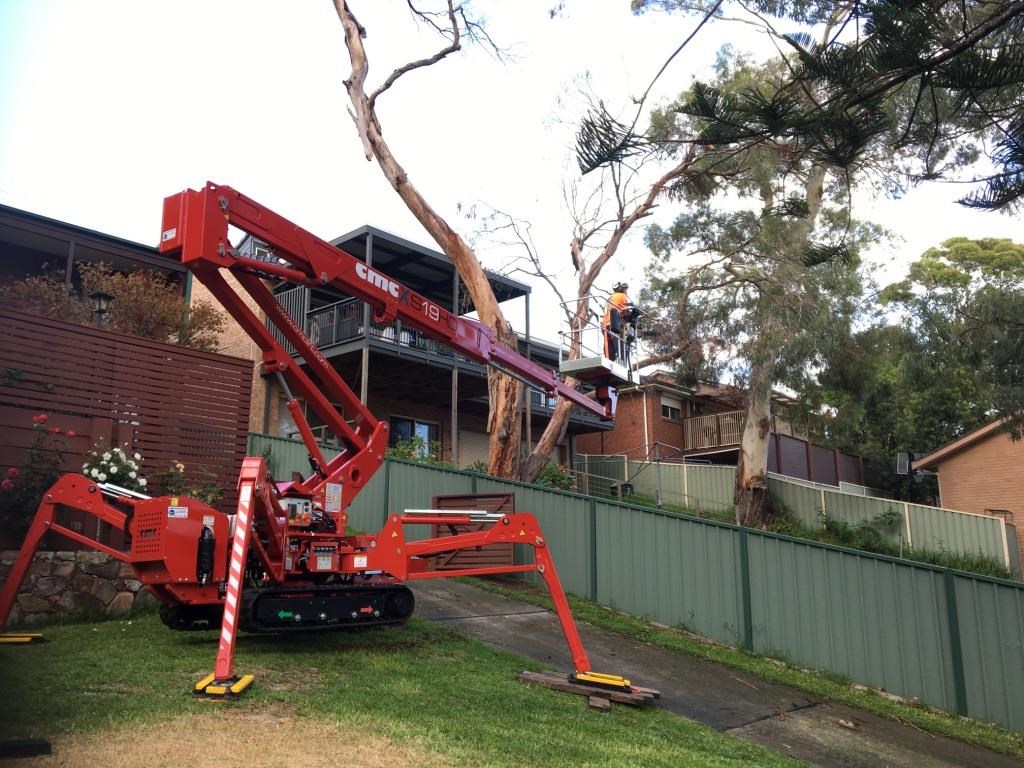

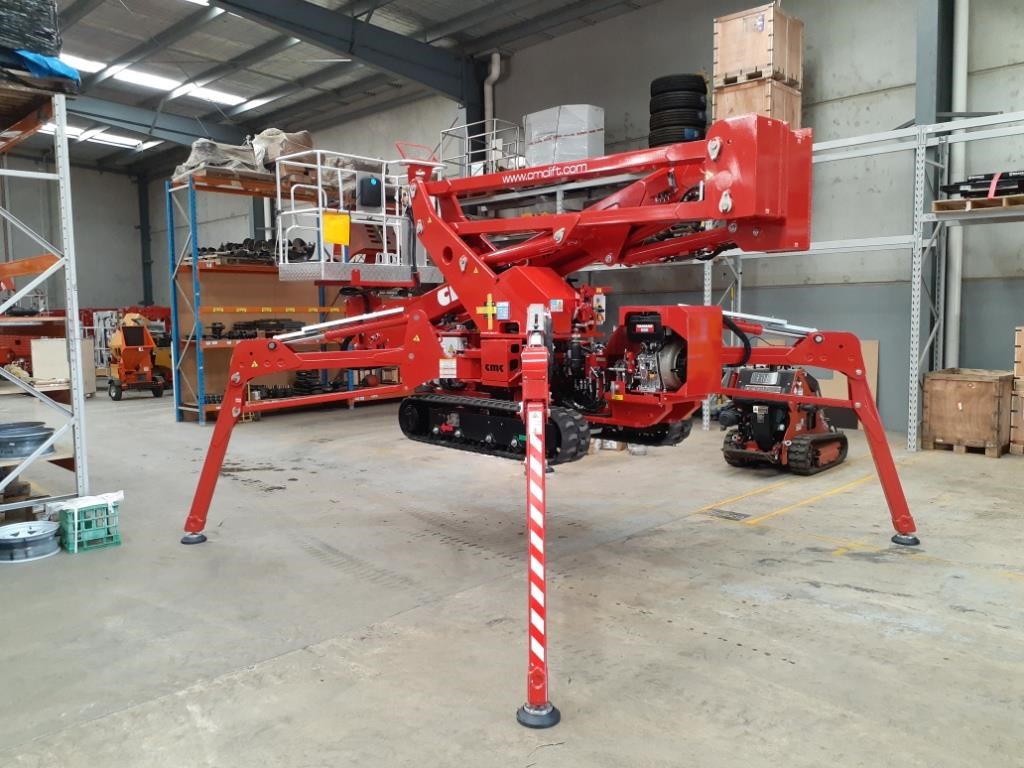

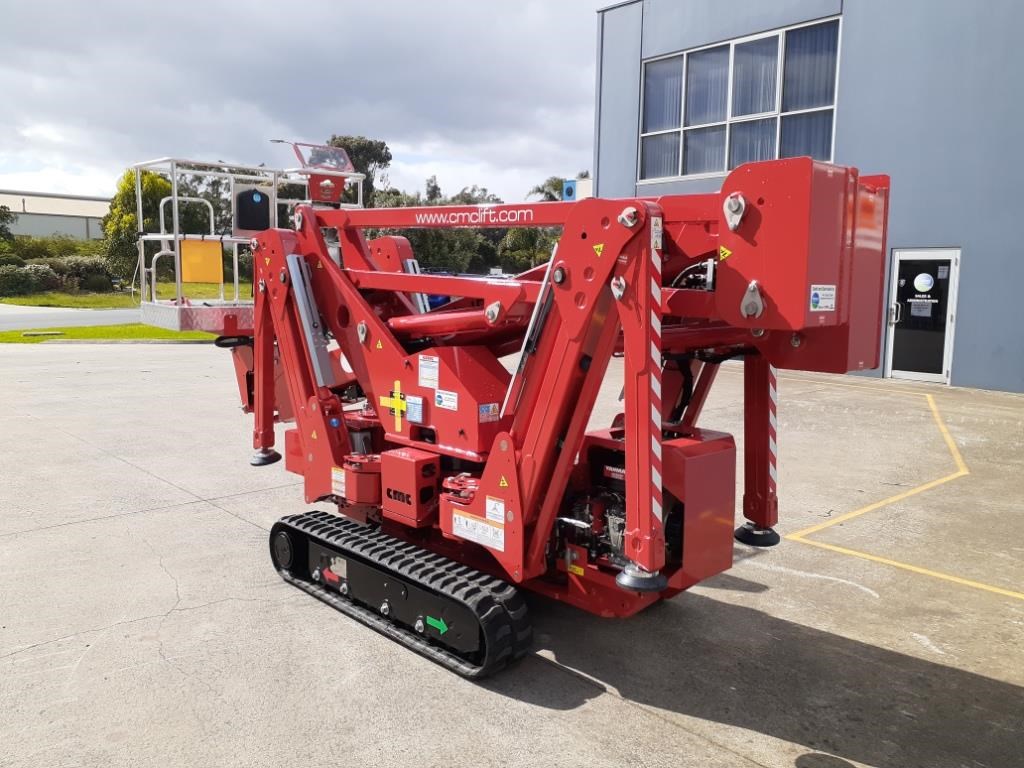

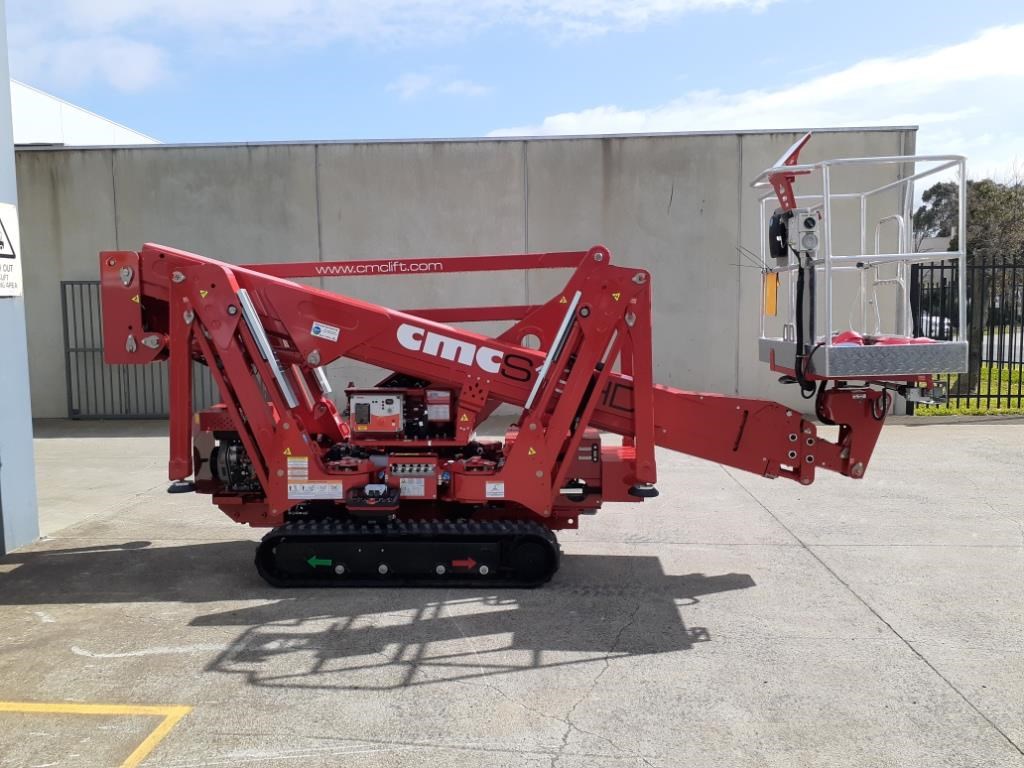

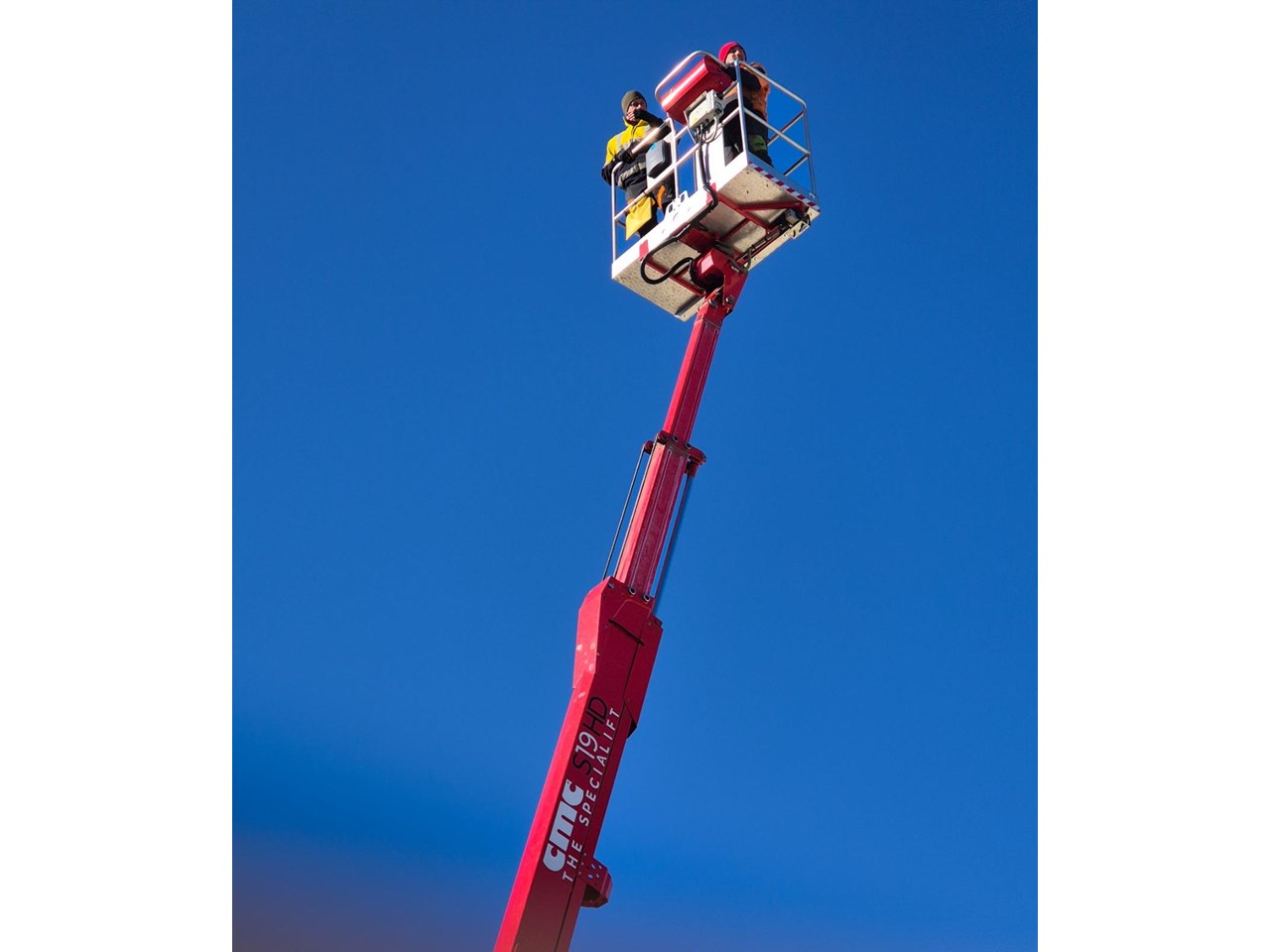

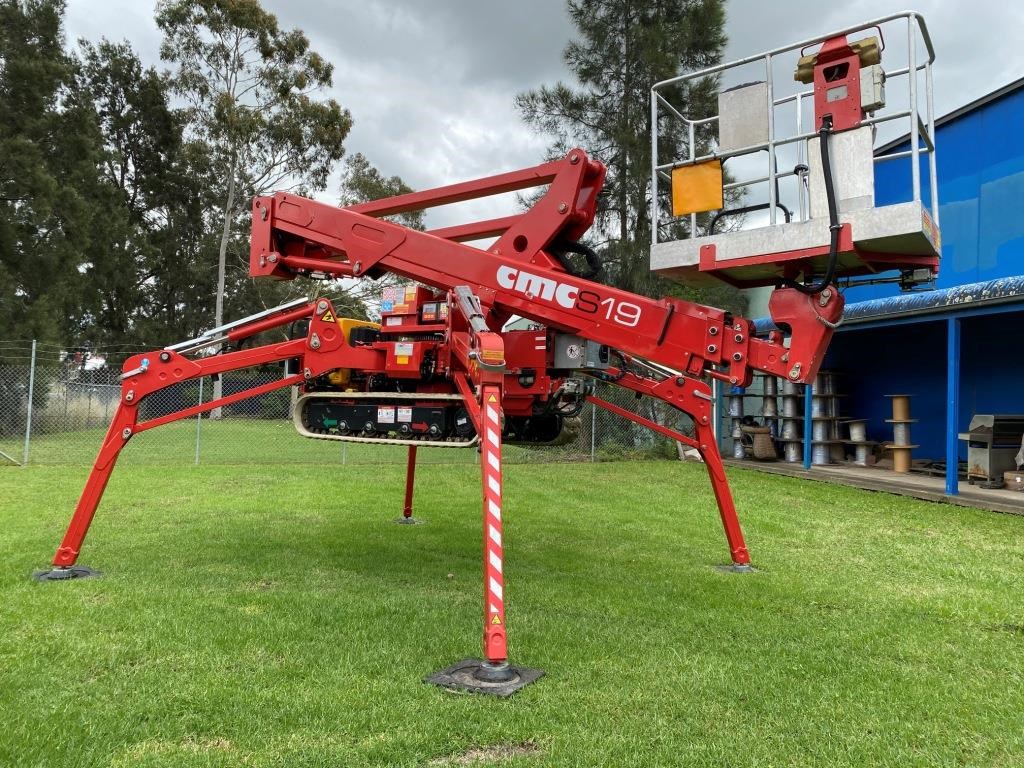

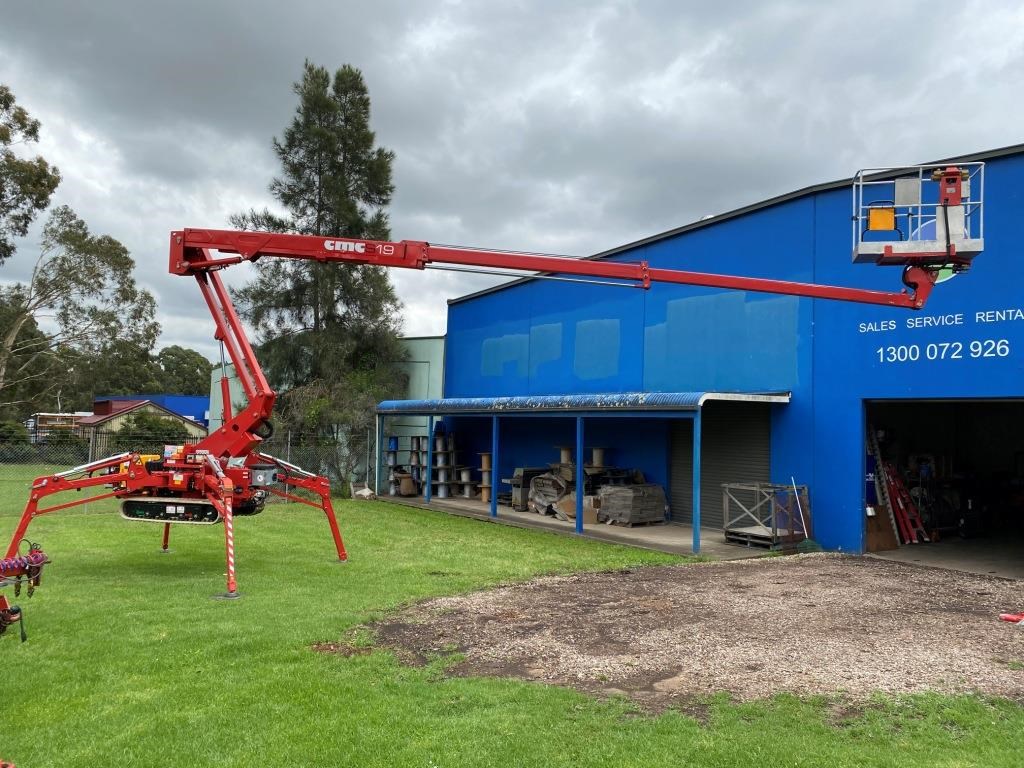

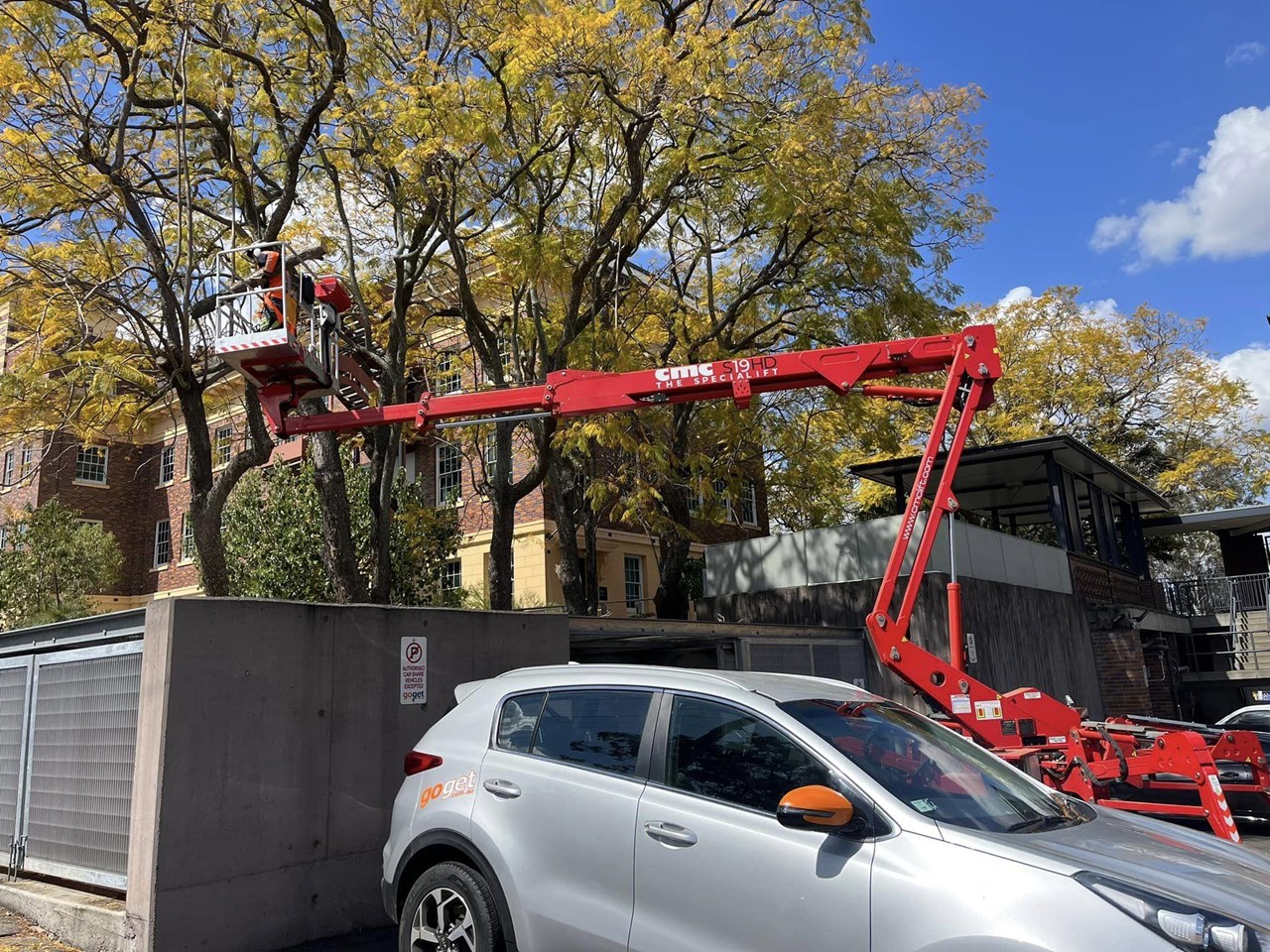

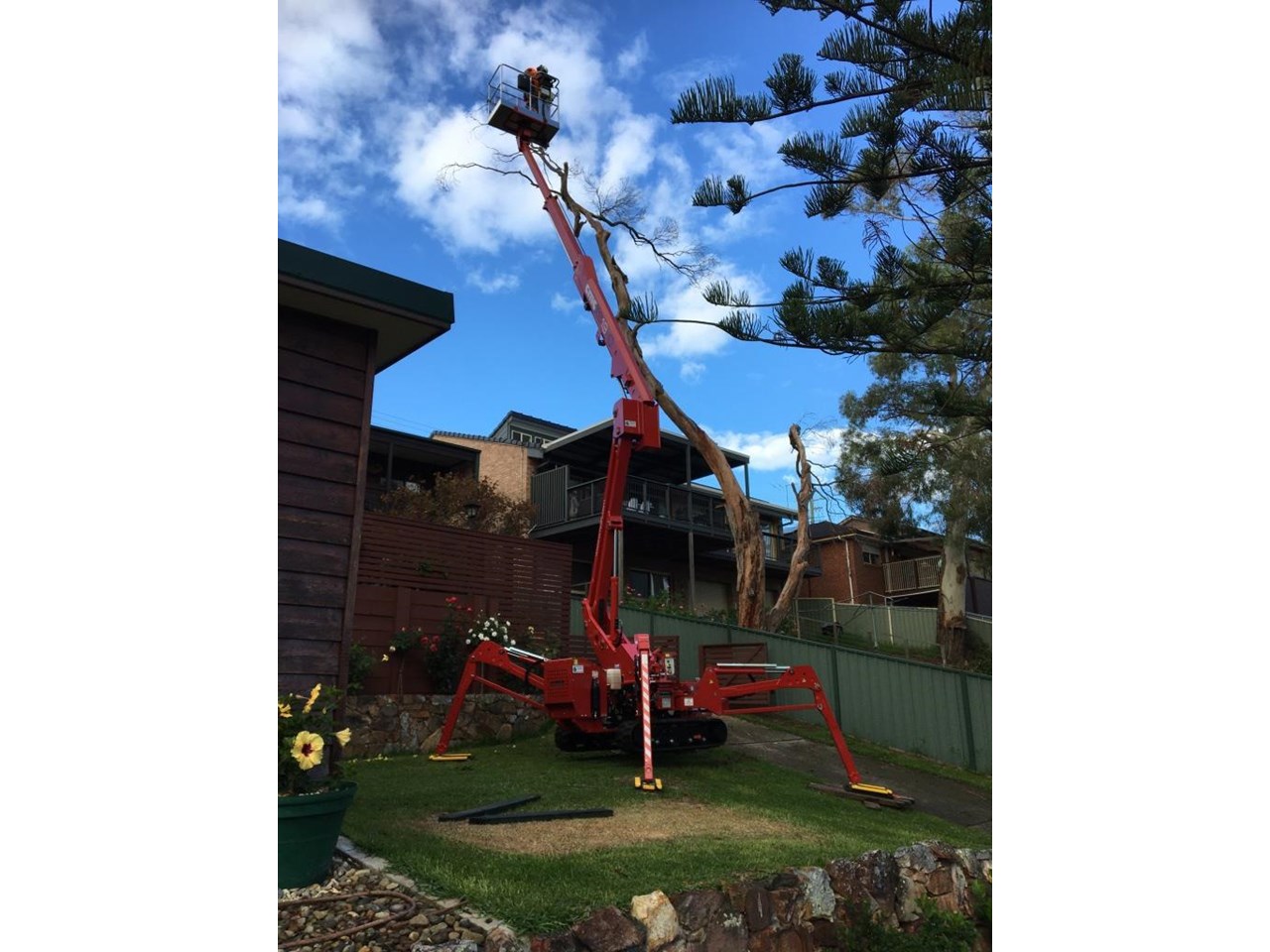

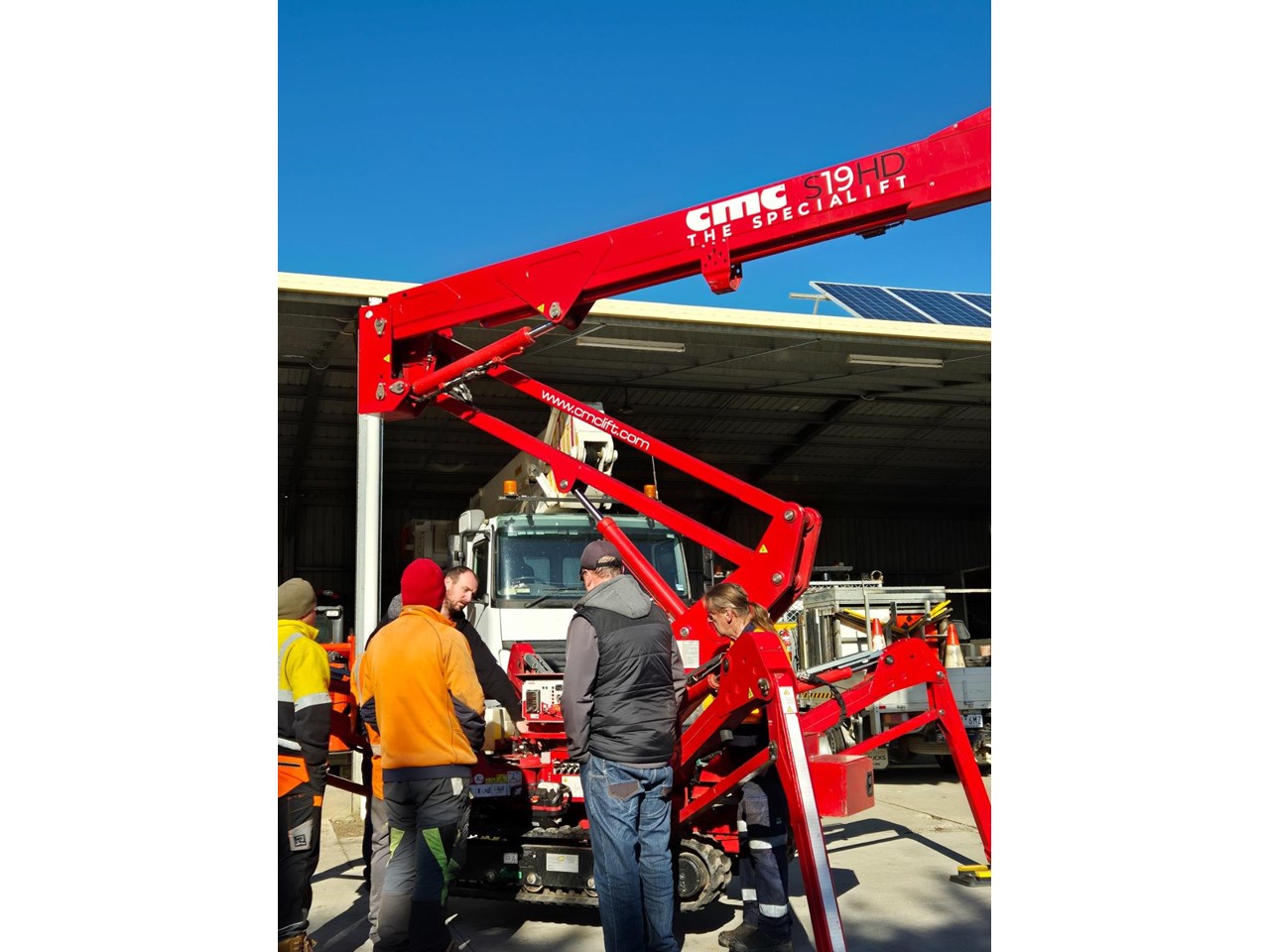

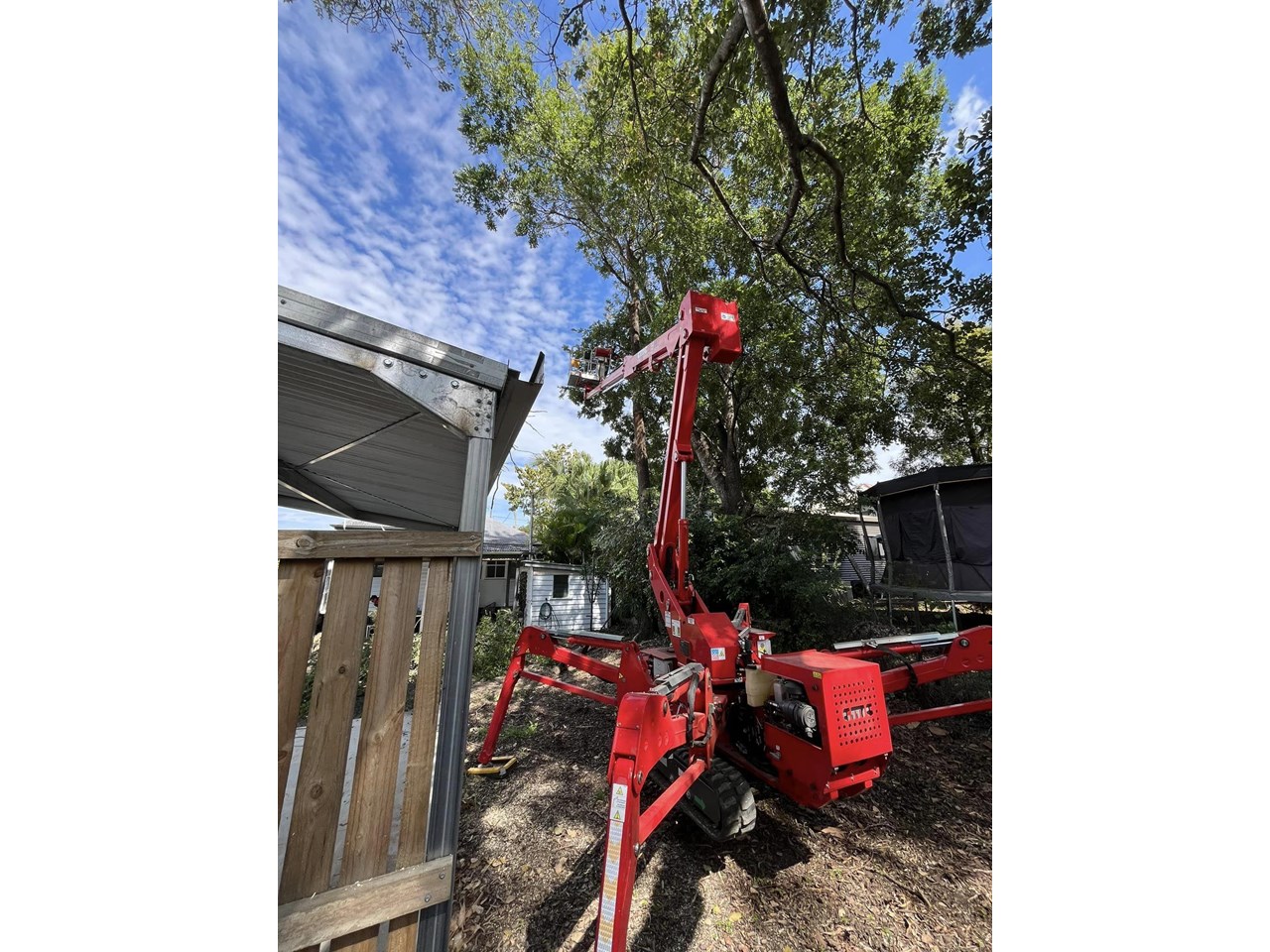

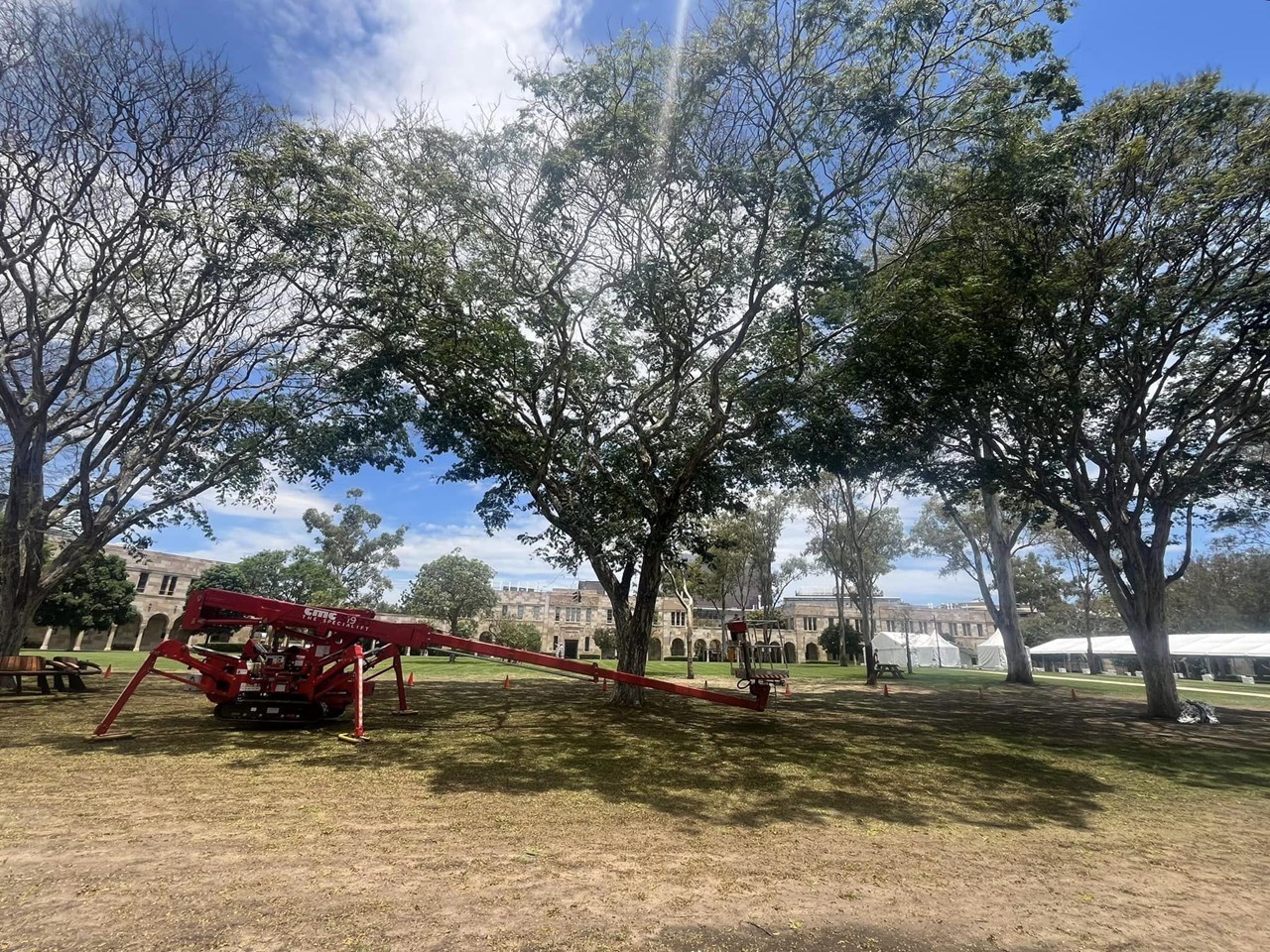

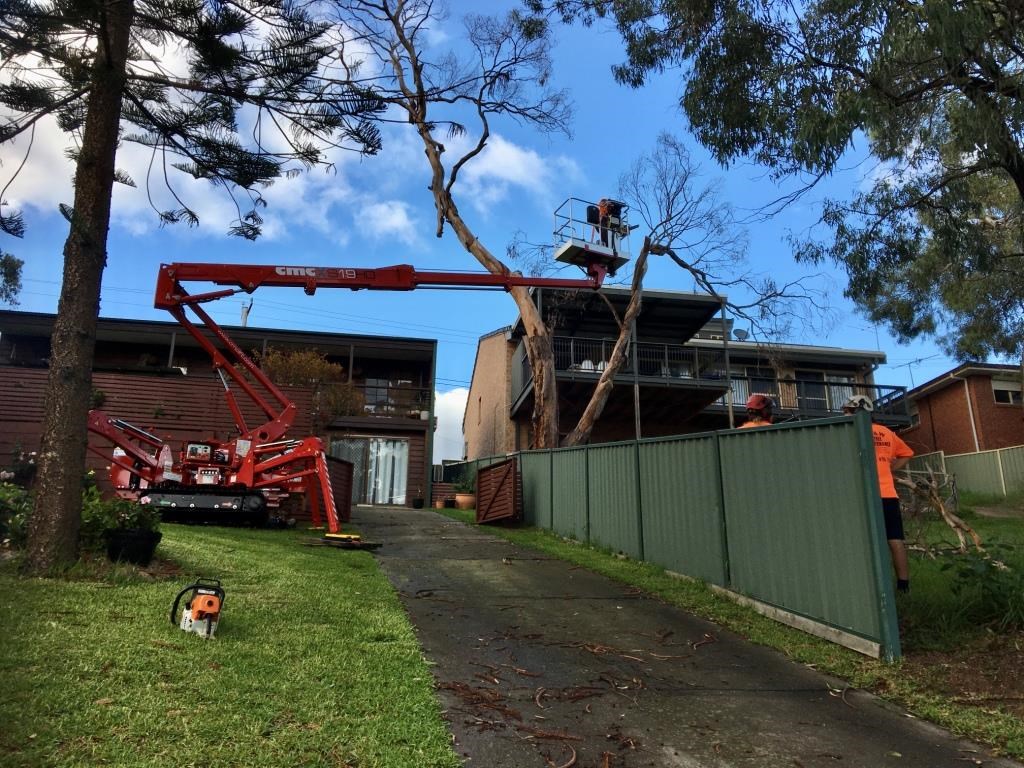

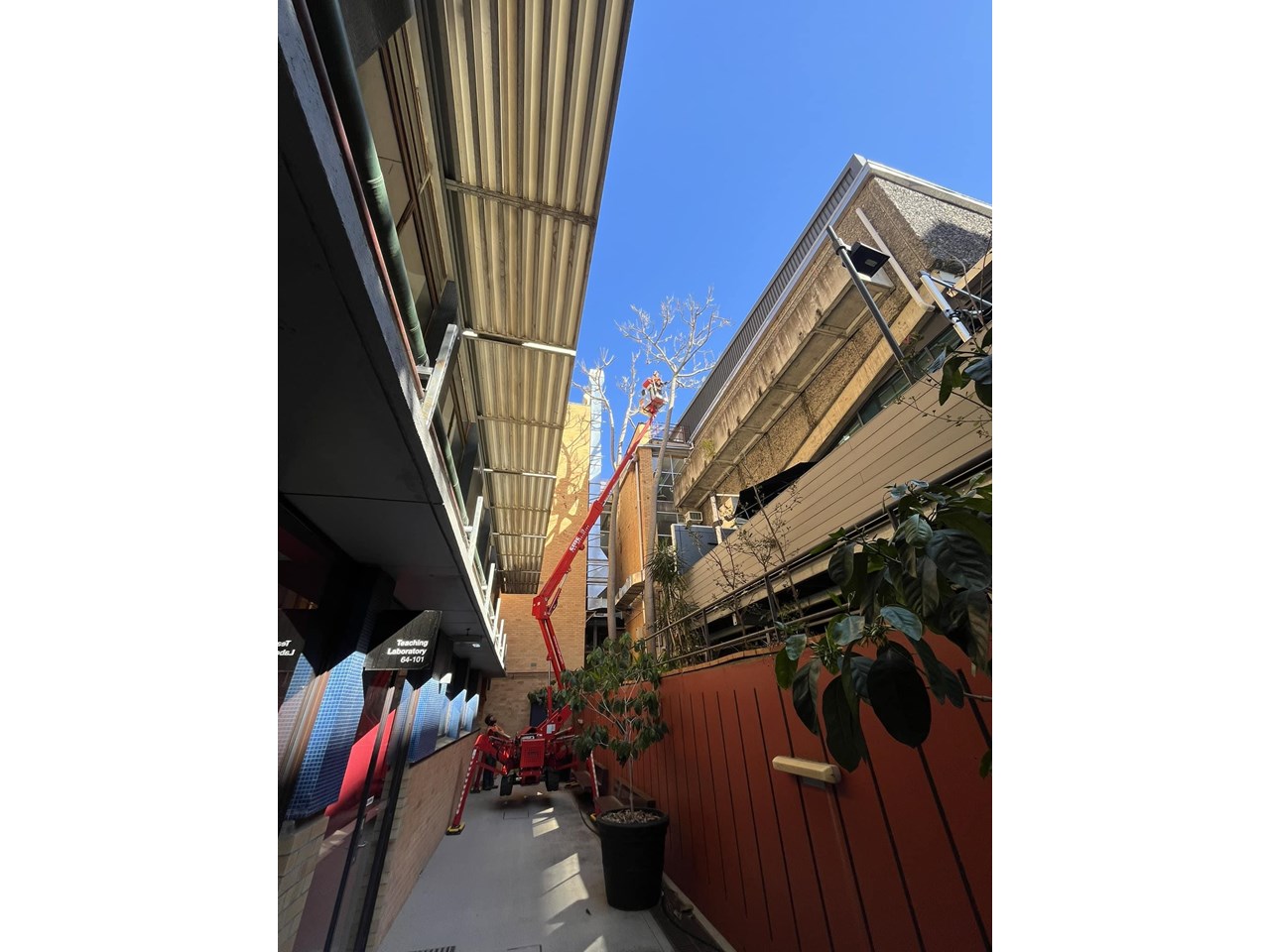

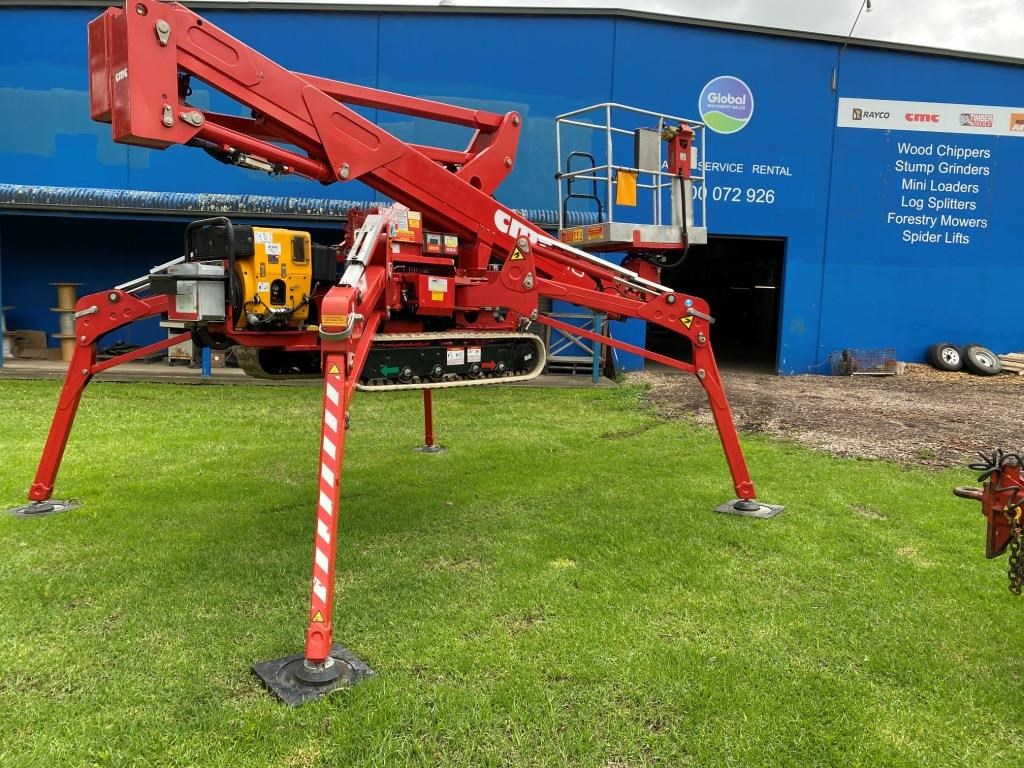

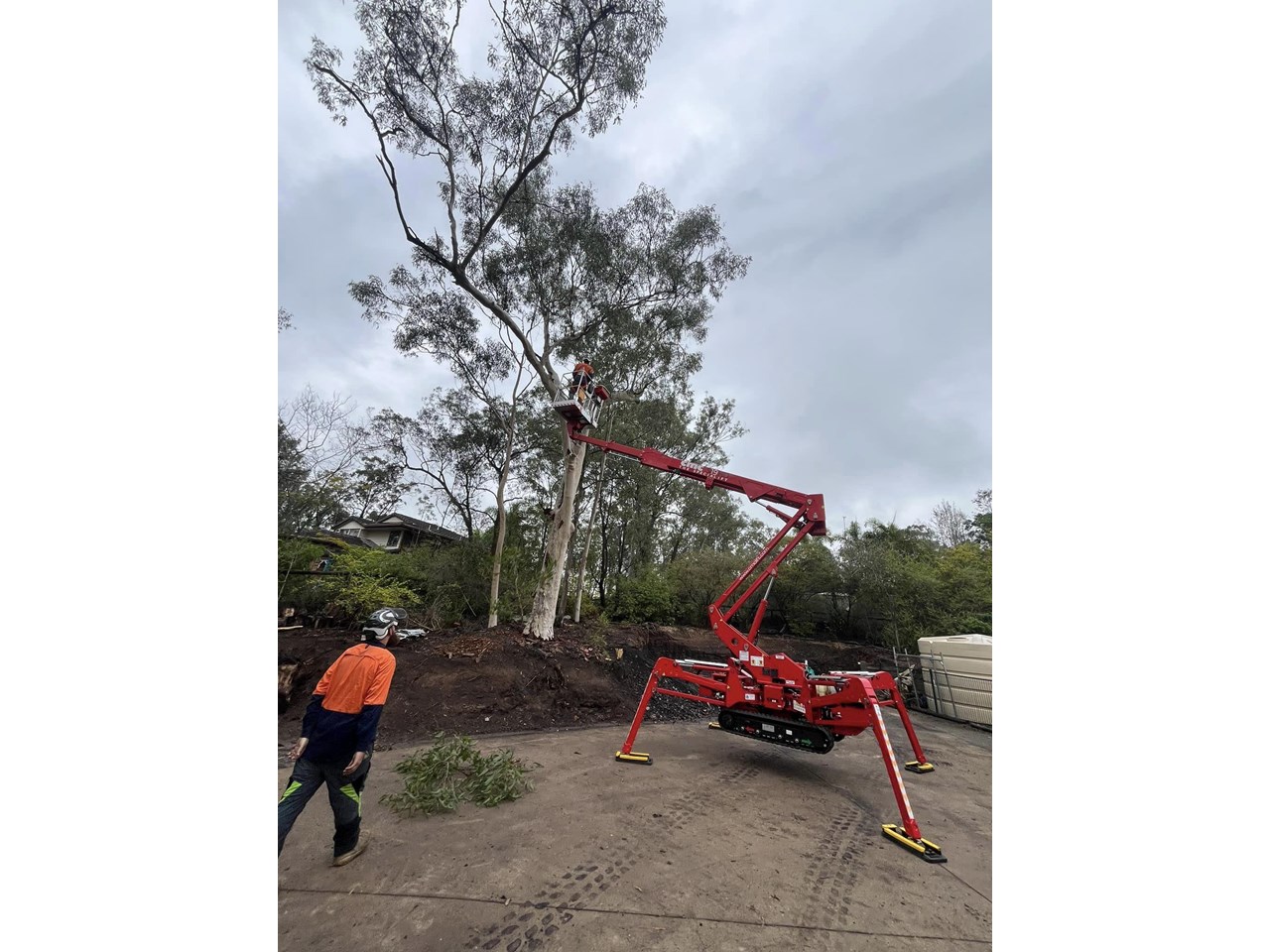

CMC S19HD Spider Lift It features an extremely compact stabilisation area with full side reach, including the ability to self level on steep sloped floors and terrain. In addition, the S19HD is also capable of setting up in "narrow mode", with an even smaller footprint. This special feature means reduced outreach, however the lift is still capable of full 360° rotation and full vertical height. Designed and built with a configuration of one lower riser pantograph and two-telescopic boom extensions, the S19HD has a 200kg basket capacity and 180° basket rotation, with close to 19m of working height. Compact dimensions of 0.95m W x 2.04m H means access to virtually any work area. Max. Working Height: 18.70 m Max. Working Reach: 11.40 m Max. Platform Height: 16.70 m Capacity: 200 kg Power: Kubota Diesel & 240V Electric Motor Weight: 2,880 kg
