BUILDPRO T60125

T60125 BuildPro Heavy Duty Riser Block 100 x 100 x 200mm, 5 Faces Suits Ø16mm Welding Tables Holes

BUILDPRO T60125 BuildPro Heavy Duty Riser Block 100 x 100 x 200mm, 5 Faces Suits Ø16mm Welding Tables Holes
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08095

These five face precision machined Riser Blocks feature accurate bored holes in a diagonal pattern.

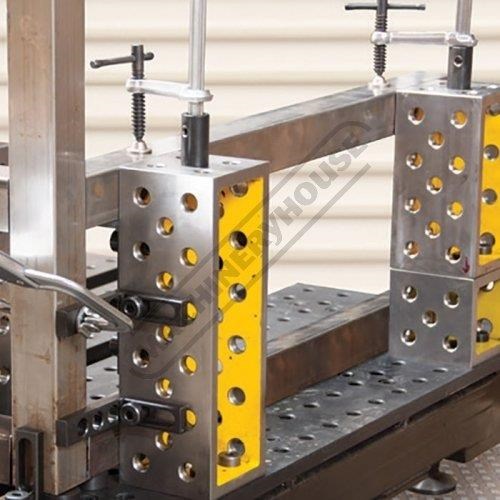

Use Riser Blocks individually, or stacked, to elevate a workpiece or clamp. Cross join the Blocks for use as a beam. Use the Blocks to mount a BuildPro® plate to the side or end of the table, or to join tables together.

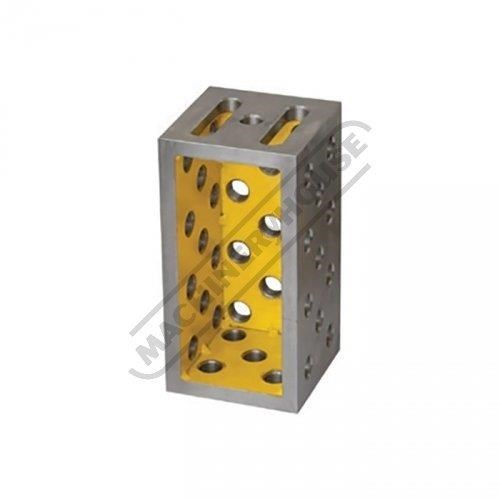

NEW! Models T60120, T60125, and T60130 feature two slots at one end for adjustable positioning.

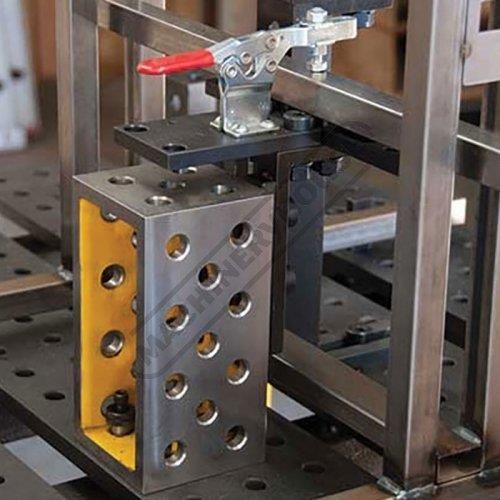

- The versatile, five-sided Riser Block functions as a heavy duty "building block" to elevate clamps and workpieces.

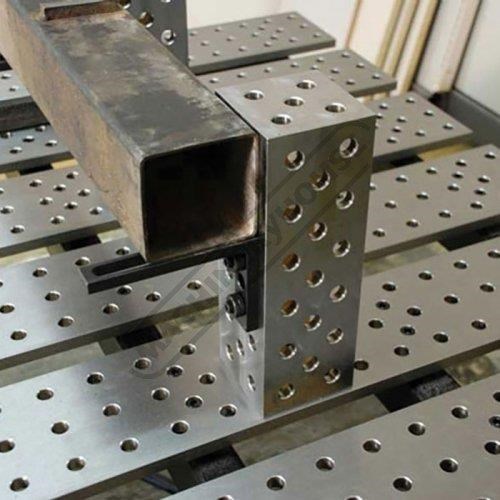

- Right Angle Brackets can be mounted to the Riser Blocks to hold stock at varying heights.

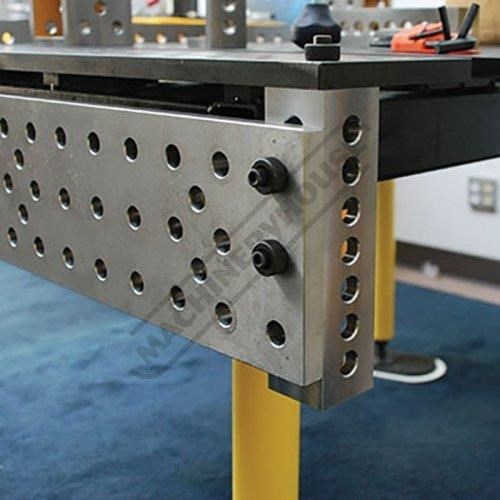

- Riser Block used to mount BuildPro® plate in vertical position.

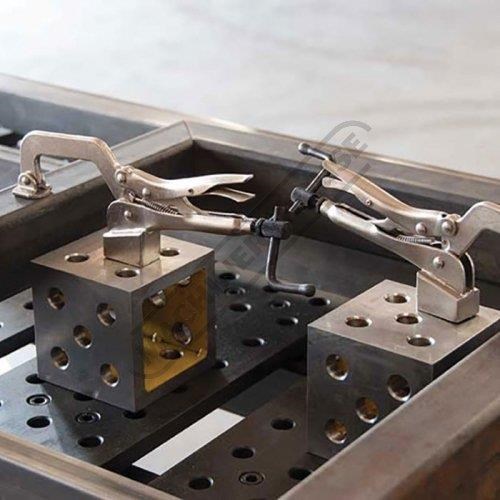

- Table Mount C-Clamps can be mounted to the Riser Blocks for push down clamping for taller workpieces.


The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.

Specifications:
ORDER CODE: W08095
MODEL: T60125
Type: Riser Block - 5 Face
Suits Table Hole Size (Diameter): Ø16mm
Size: 100 x 100 x 200mm
Plate Thickness (mm): 16
Nett Weight (kg): 5.67


To Purchase Online Please Visit The Machineryhouse Website & Search For 'W08095'
