Features
| Title | BAILEIGH RDB-175 |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BAILEIGH |
| Model | RDB-175 |
| Sale Price | $16,450 GST Exclusive |
| Listing Type | New |
| Stock Number | 498543 |
| RefCode | TA1265742 |
Description

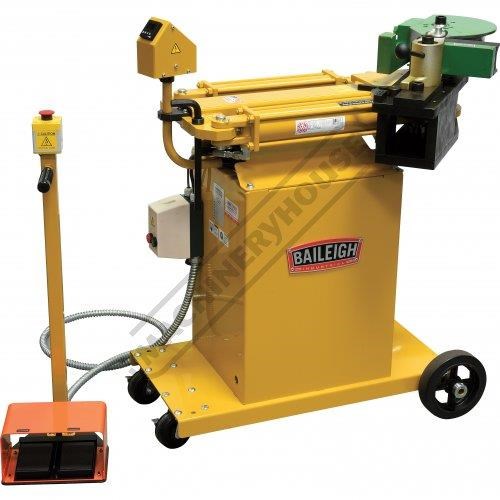

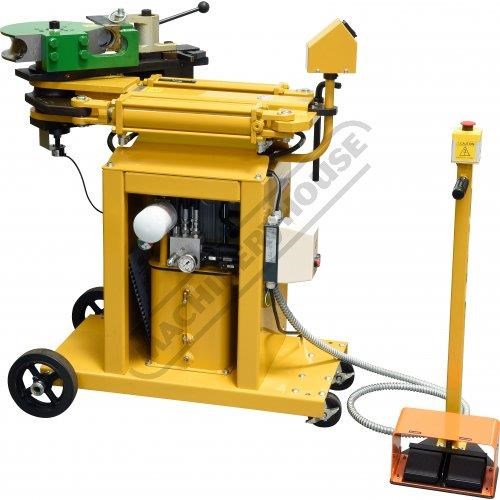

RDB-175 Hydraulic Pipe & Tube Rotary Draw Bender Ø1/2`` - Ø2`` NB Pipe Capacity, Ø6.35 - Ø63.5mm Round
BAILEIGH RDB-175 Hydraulic Pipe & Tube Rotary Draw Bender Ø1/2`` - Ø2`` NB Pipe Capacity, Ø6.35 - Ø63.5mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8080
NOTE: Image shown with Optional Tooling.
Made in the USA, this hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented* additional features to streamline your bending jobs.
Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
Why choose the RDB-175 over similar machines?
Improved-accuracy digital readout package measures bend angle on the die head or spindle instead of cylinder placement to get a true reading.
You can count on the extreme speed and reliability of the RDB-175 to eliminate delays.
Accepts a wide range of quality tooling options from Baileigh, with over 5000 die sets available.
Limitless after-sale support from Baileigh representatives with hands-on experience is just a phone call away.
Features:
Maximum capacity of Ø2`` NB (5/32`` schedule 40) pipe and up to Ø63.5mm OD tubing with a wall thickness of 3.048mm mild steel
Rotary draw executes 180° bends in a smooth single motion
Bends almost 300% faster than the RDB-150 making quick work of round tube pipe and square tubing
Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy

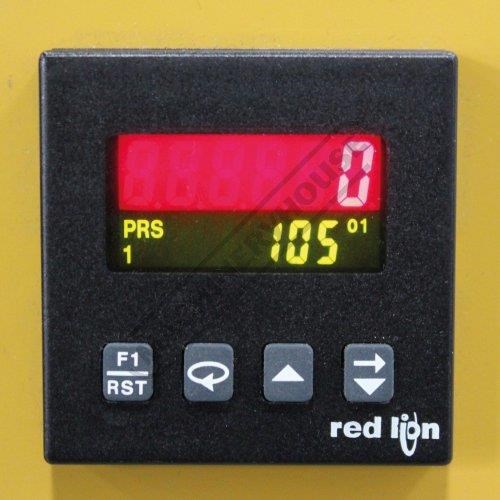

Easy-to-read digital degree indicator to monitor bend progress and check angles
Convenient foot pedal controls the movements of the bender leaving your hands free to guide the material
Works with up to a 9`` (228.6mm) centre line radius to accommodate 90% of applications

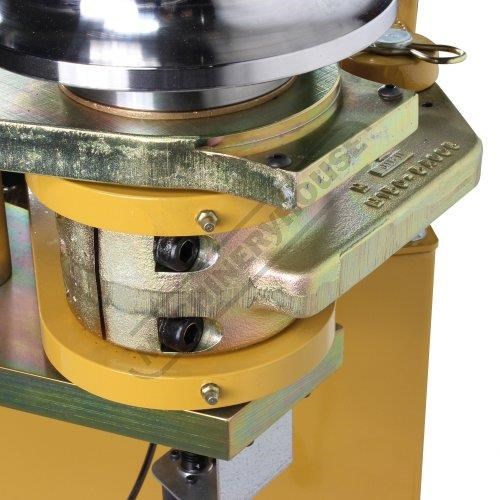

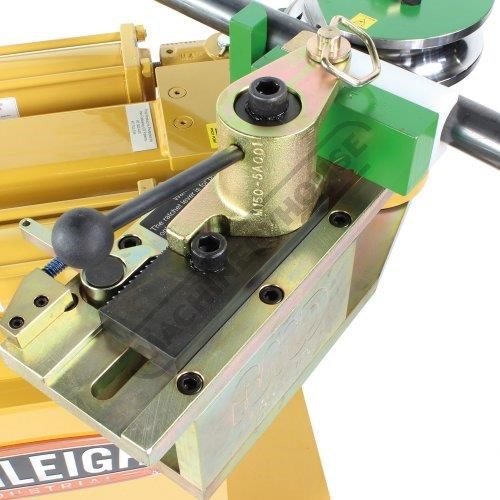

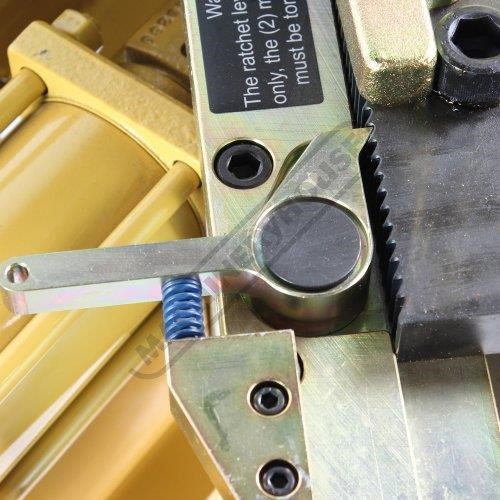

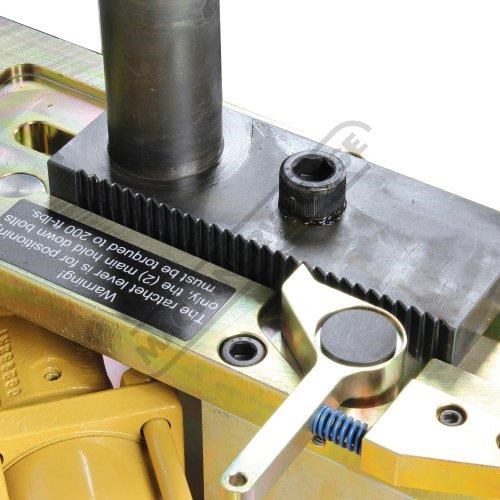

Ratcheting counter die adjustment allows for quick tooling changes
No valves on top leaving plenty of open space for complex bends
Includes:

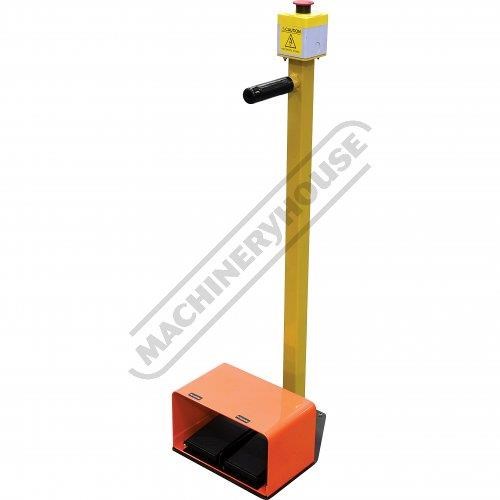

- Foot pedal control with forward & reverse
Specifications:
ORDER CODE: B8080
MODEL: RDB-175
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod

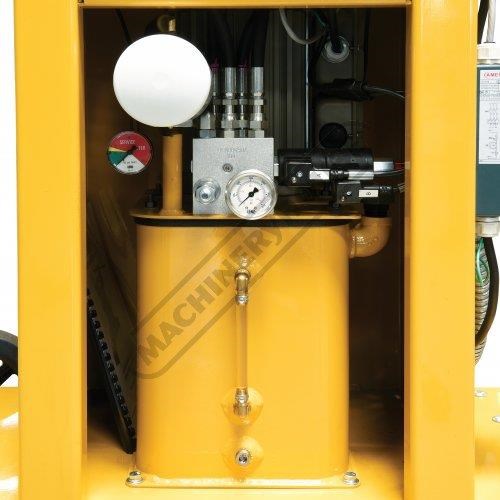

Machine (Type): Electric Hydraulic - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2`` - Ø2``
Round Tube Range (OD) - Mild Steel (inch / mm): Ø6.35 - Ø63.5
Square Tube Range (inch / mm): 19.05 - 50.8
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2`` (Schedule 40)
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): Ø2`` (Schedule 40)
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø1-1/2`` (Schedule 40)
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø63.5 x 3.17
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø63.5 x 3.96
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø60.32 x 3.17
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø50.8 x 3.17
Solid Rod - Mild Steel (inch / mm): Ø31.75
Square Tube x Wall Capacity - Mild Steel (inch / mm): 50.8 x 3.17
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): 180° / 12.5
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 9`` / 228.6mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2`` / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 180º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240
Nett Weight (kg): 286
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B8080'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
