Contact Seller
Features
| Title | BAILEIGH RDB-125 |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BAILEIGH |
| Model | RDB-125 |
| Sale Price | $11,990 GST Exclusive |
| Listing Type | New |
| Stock Number | 498542 |
| RefCode | TA1265741 |
Description

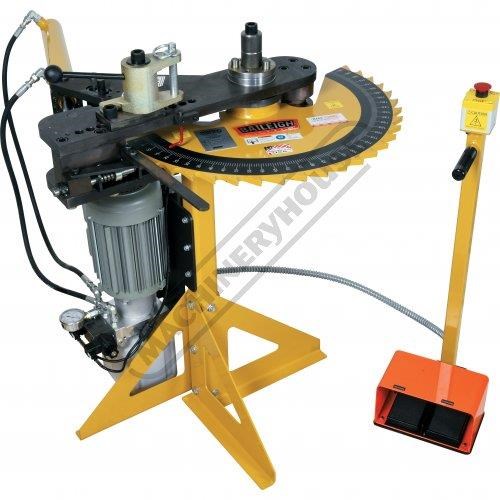

RDB-125 Hydraulic Pipe & Tube Rotary Draw Bender Ø1/2`` - Ø2`` NB Pipe Capacity, Ø6.35 - Ø63.5mm Round
BAILEIGH RDB-125 Hydraulic Pipe & Tube Rotary Draw Bender Ø1/2`` - Ø2`` NB Pipe Capacity, Ø6.35 - Ø63.5mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8075

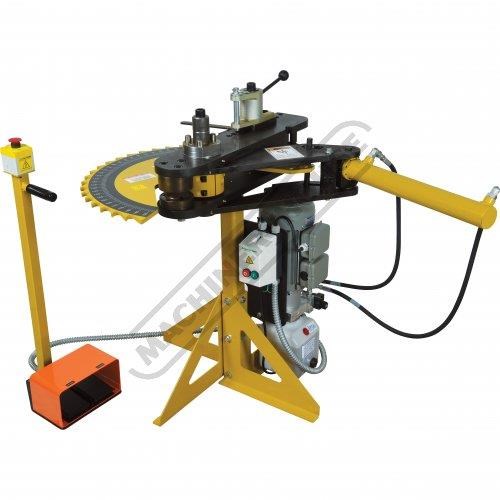

NOTE: Image shown with Optional Tooling.
Tired of your exhausting manual bender? This hydraulic rotary draw bender will increase your productivity.
Use this draw bender machine for: Economical one-off bending of hand railing and automobile chassis.
Why choose the RDB-125 over comparable machines?

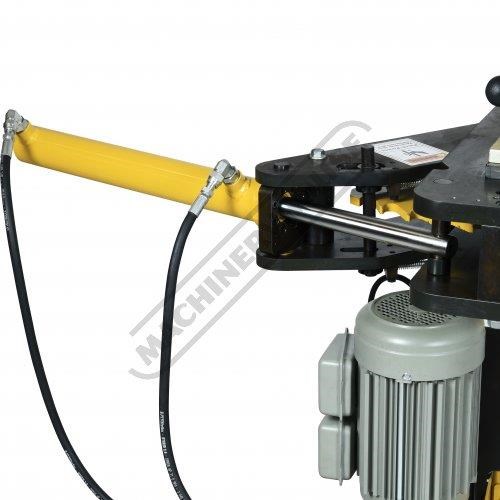

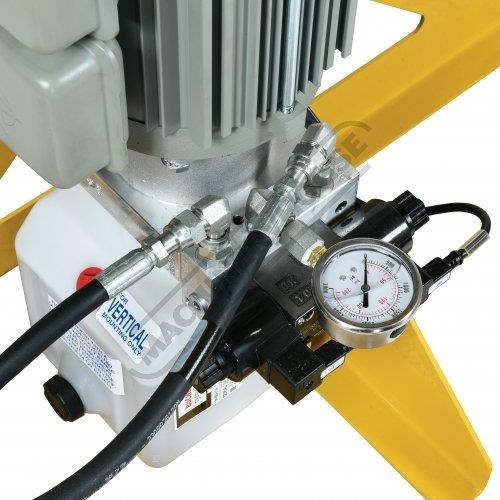

Low-pressure industrial-grade hydraulics make bending quick, quiet, and safe, even at full capacity.

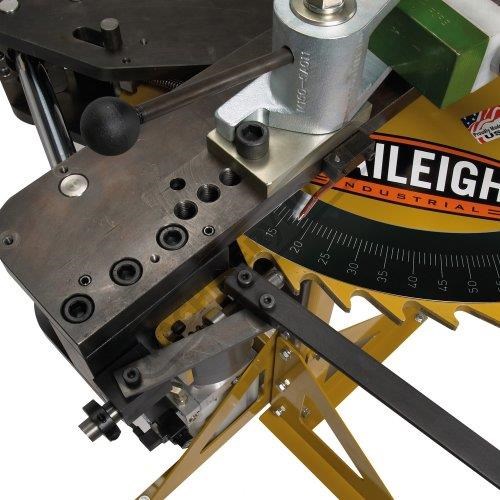

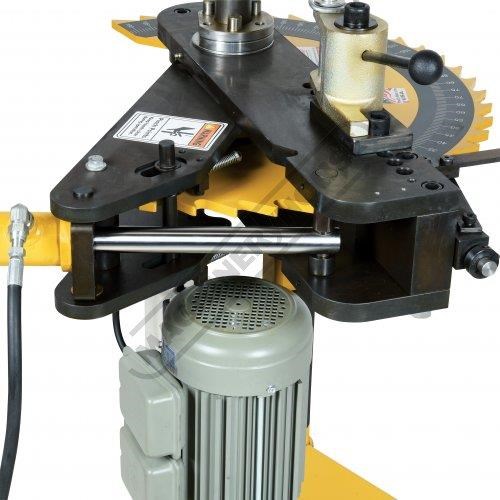

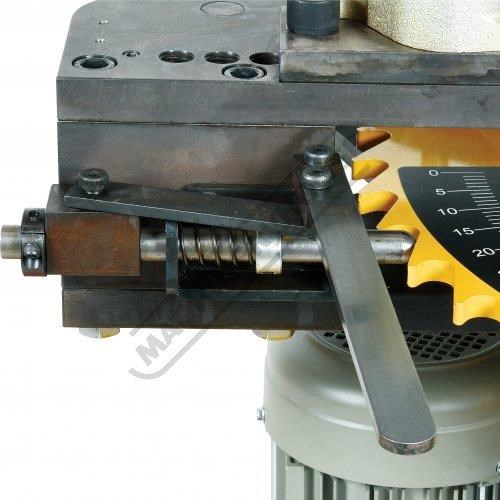

Quick-release counter die positioner makes loading and unloading material more time-efficient.
Accepts user-friendly drop-on tool sets from Baileigh to increase the options for your applications.
Features:

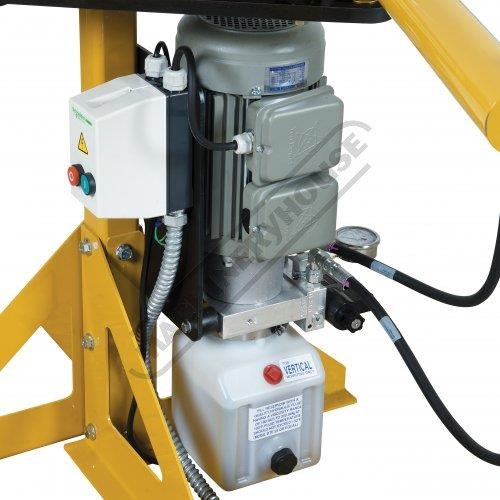

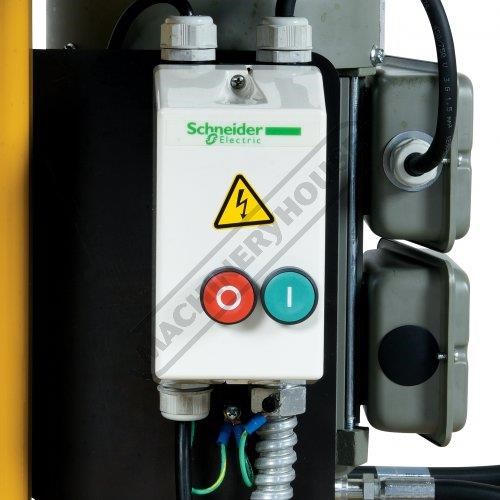

Requires only 240-volt single-phase power for easy plug-in almost anywhere
Handles a maximum capacity of Ø63.5mm OD tubing Ø50.8mm OD Chromoly 50.8mm square tubing and Ø2`` NB (5/32`` schedule 40) pipe
Maximum centre line of 8`` (203.2mm) depending on material's OD
Bends up to 200° allowing for true 180° bends without having to re-pin the die set
Takes only 4 complete pushes to reach 180°

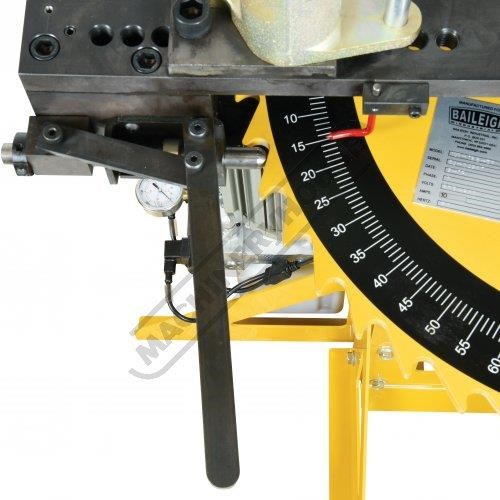

Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend
Includes:

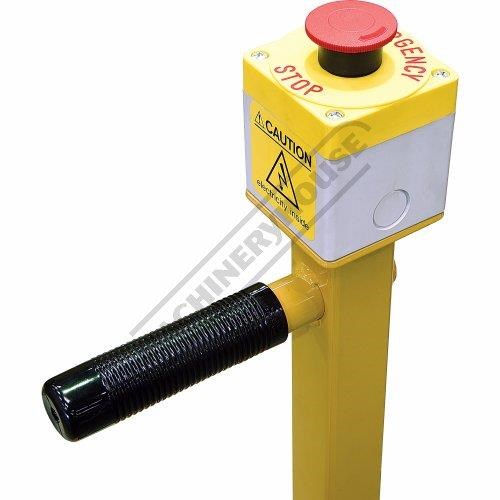

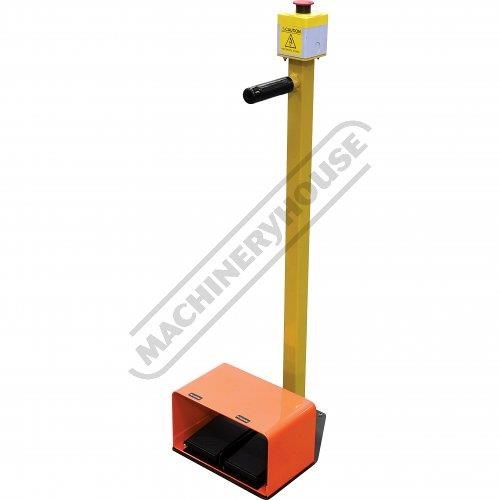

- Foot pedal control with forward & reverse
Specifications:
ORDER CODE: B8075
MODEL: RDB-125
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod
Machine (Type): Electric Hydraulic - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2`` - Ø2``
Round Tube Range (OD) - Mild Steel (inch / mm): Ø6.35 - Ø63.5
Square Tube Range (inch / mm): 19.05 - 50.8
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2`` (Schedule 40)
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): Ø2`` (Schedule 40)
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø1-1/2`` (Schedule 40)
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø63.5 x 3.17
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø63.5 x 3.96
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø60.32 x 3.17
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø50.8 x 3.17
Solid Rod - Mild Steel (inch / mm): Ø31.75
Square Tube x Wall Capacity - Mild Steel (inch / mm): 50.8 x 3.17
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 10 1/2`` / 266.7mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2`` / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 200º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 240
Nett Weight (kg): 160
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B8075'
