Contact Seller
Features
| Title | AM MACHINERY QC12Y |
| Type | Engineering - Fabrication |
| Sub Type | Guillotines |
| Class | Hydraulic Guillotine |
| Make | AM MACHINERY |
| Model | QC12Y |
| Sale Price | $10,000 +GST |
| Listing Type | Used |
| Stock Number | P&E 4672 |
| RefCode | TA1297068 |
Description

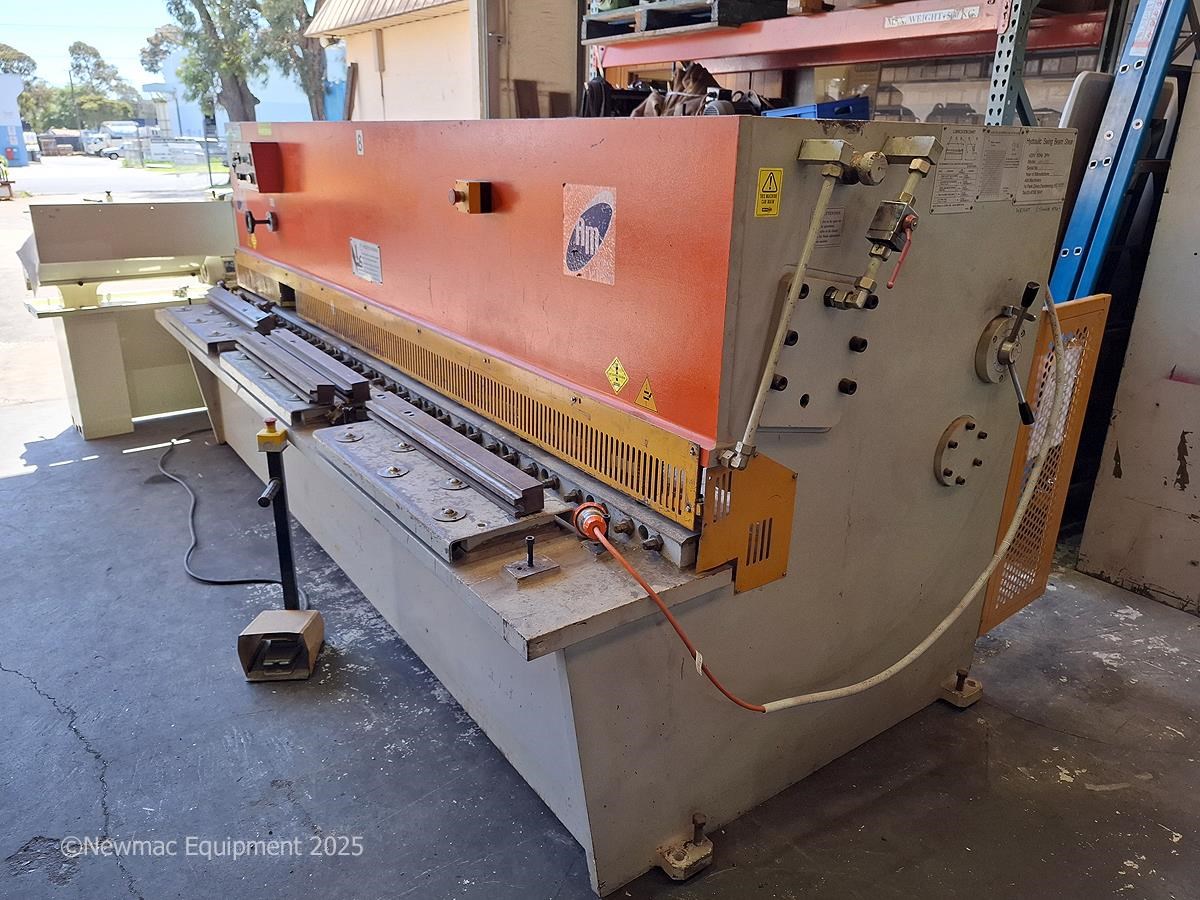

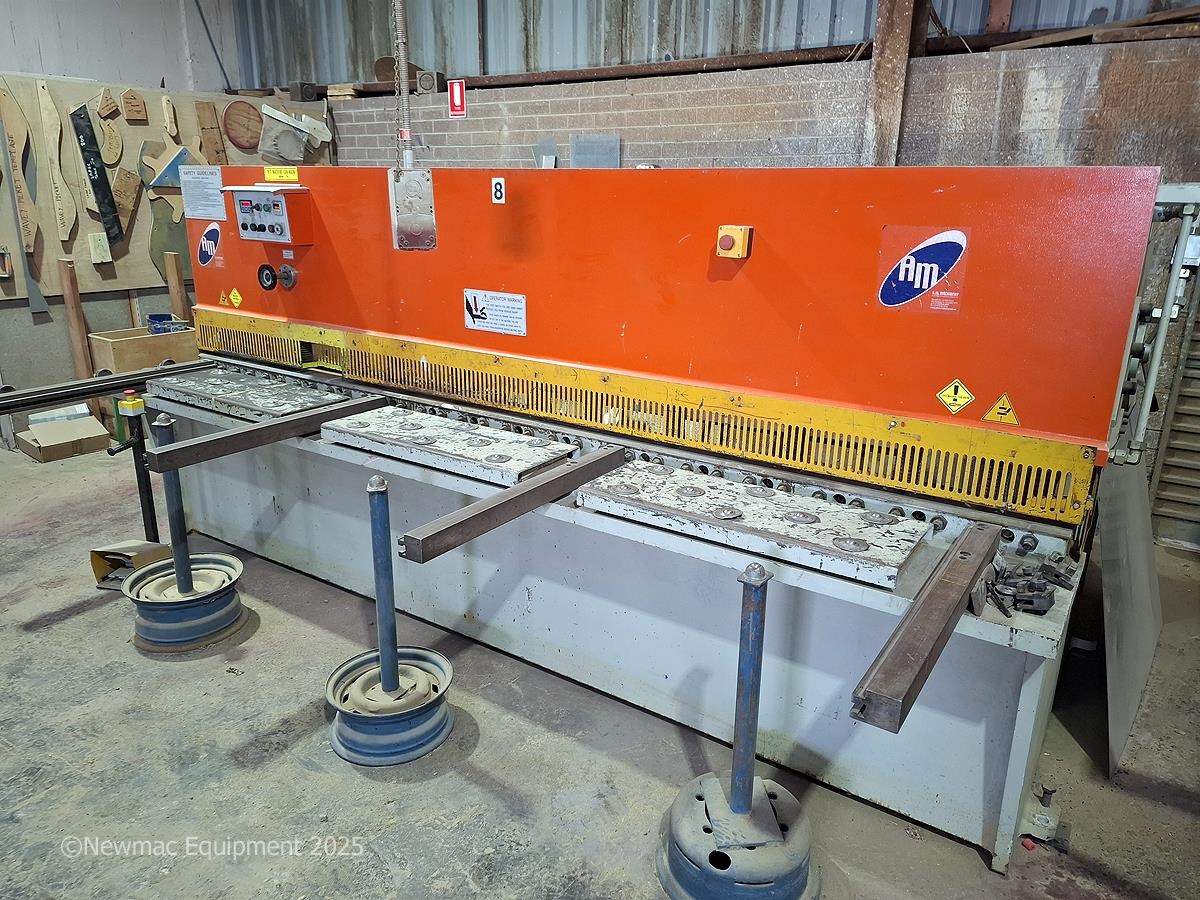

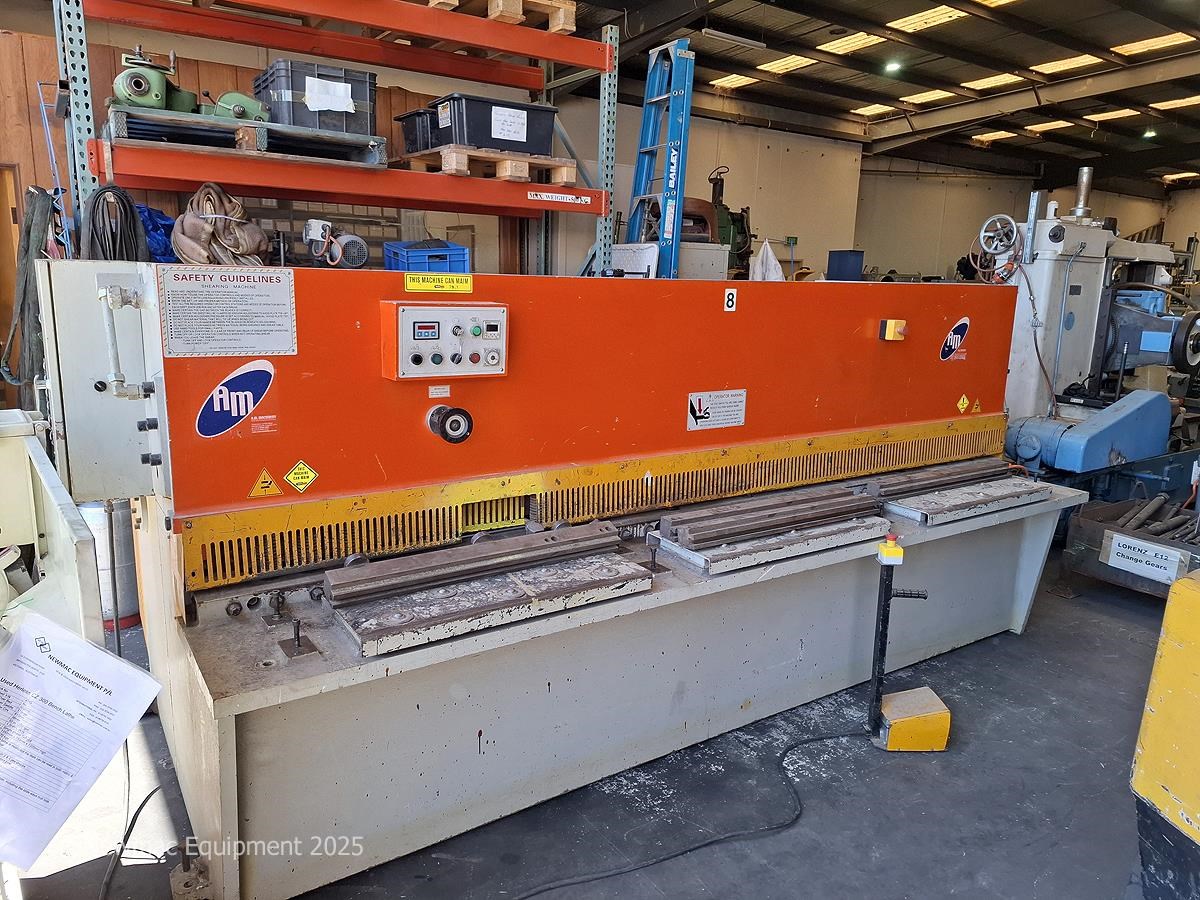

AM Machinery 3.2m x 6mm Hydraulic Swing Beam Guillotine for sale
Fitted with NC backgauge control and rear safety guarding.
This machine is suited to general sheet-metal cutting up to 6 mm mild steel over 3200 mm length.
Specifications
Cutting Capacity: 6 mm mild steel
Cutting Length: 3200 mm
Construction: Swing beam shearing action
Hydraulic Operation
Motorised backgauge, NC controlled
Foot-pedal operation
Rapid stroke adjustment
Adjustable blade clearance

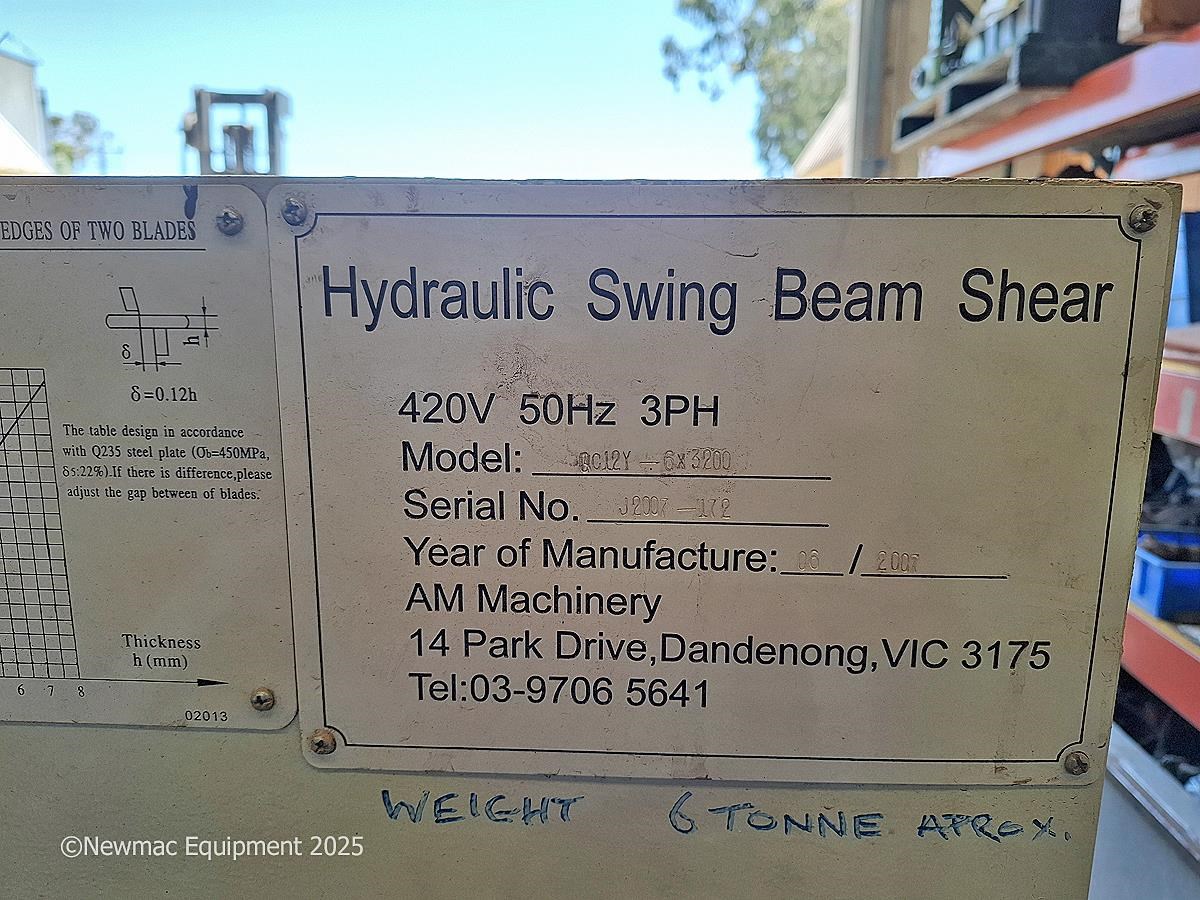

Approx. machine weight: 6 tonnes (as marked on machine tag)
Power requirements 3 phase 415 volt
Overall dimensions for transport (Front sheet supports removed)
Year of Manufacture 2007
Control System
NC backgauge controller (E21-style)
Digital backgauge readout
Keyed power/mode switch
Start and stop push buttons
Digital stroke counter
Adjustable stroke-time dial

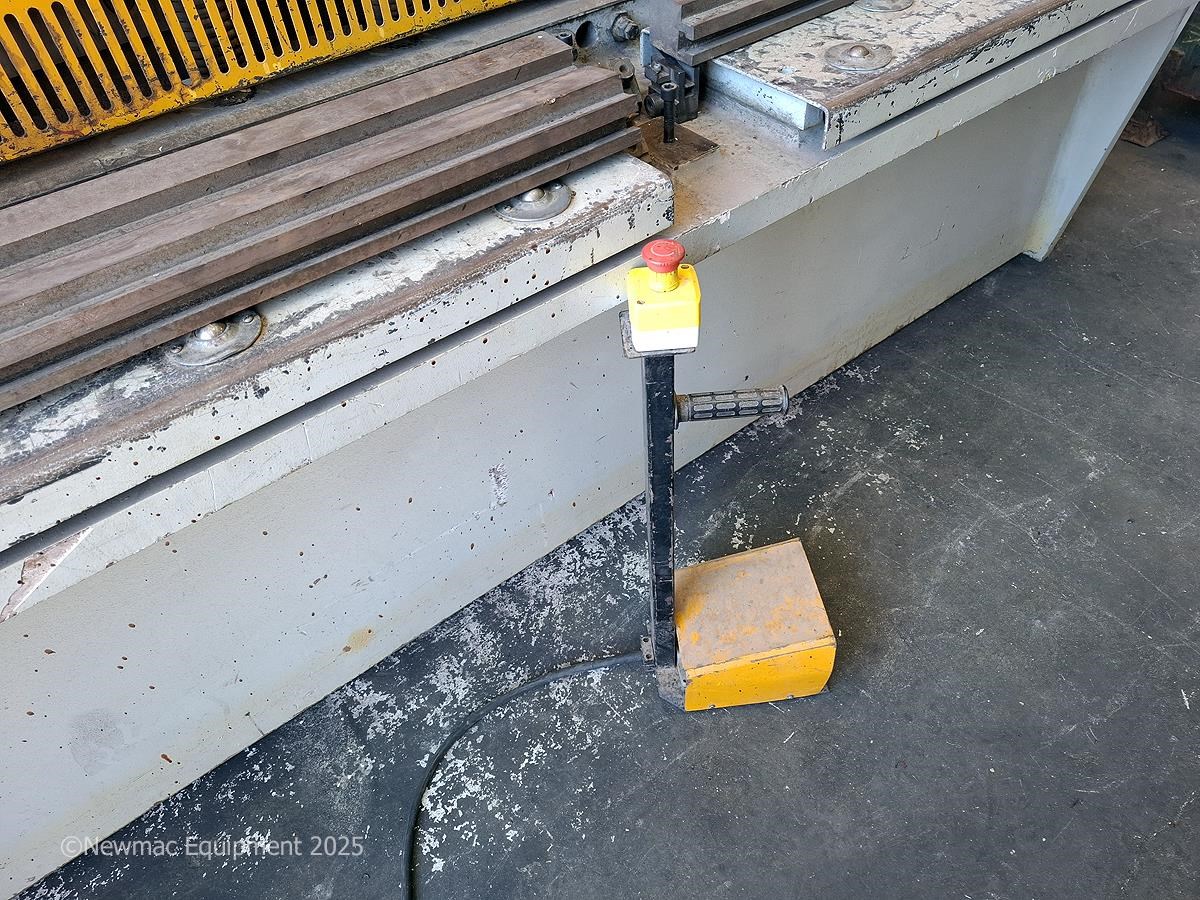

Roving foot pedal
Safety Features

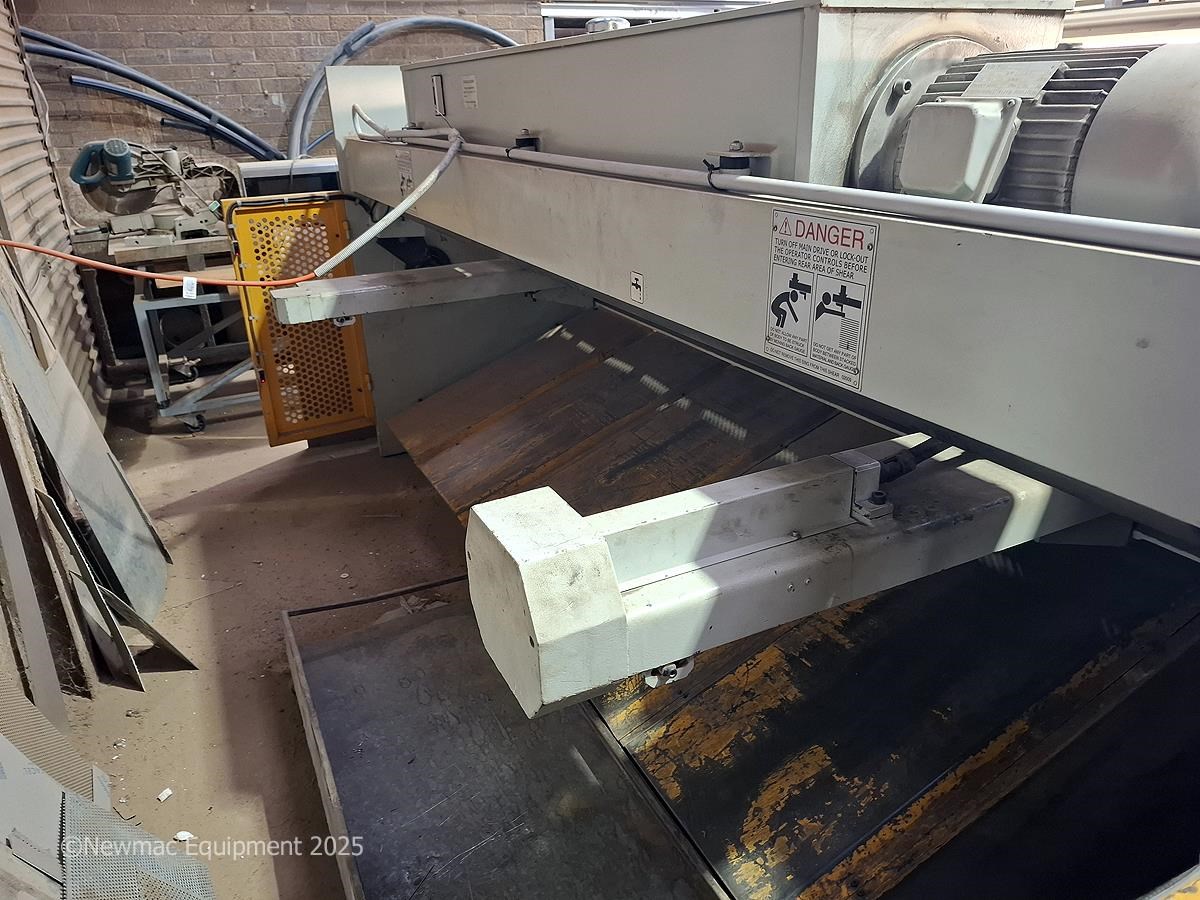

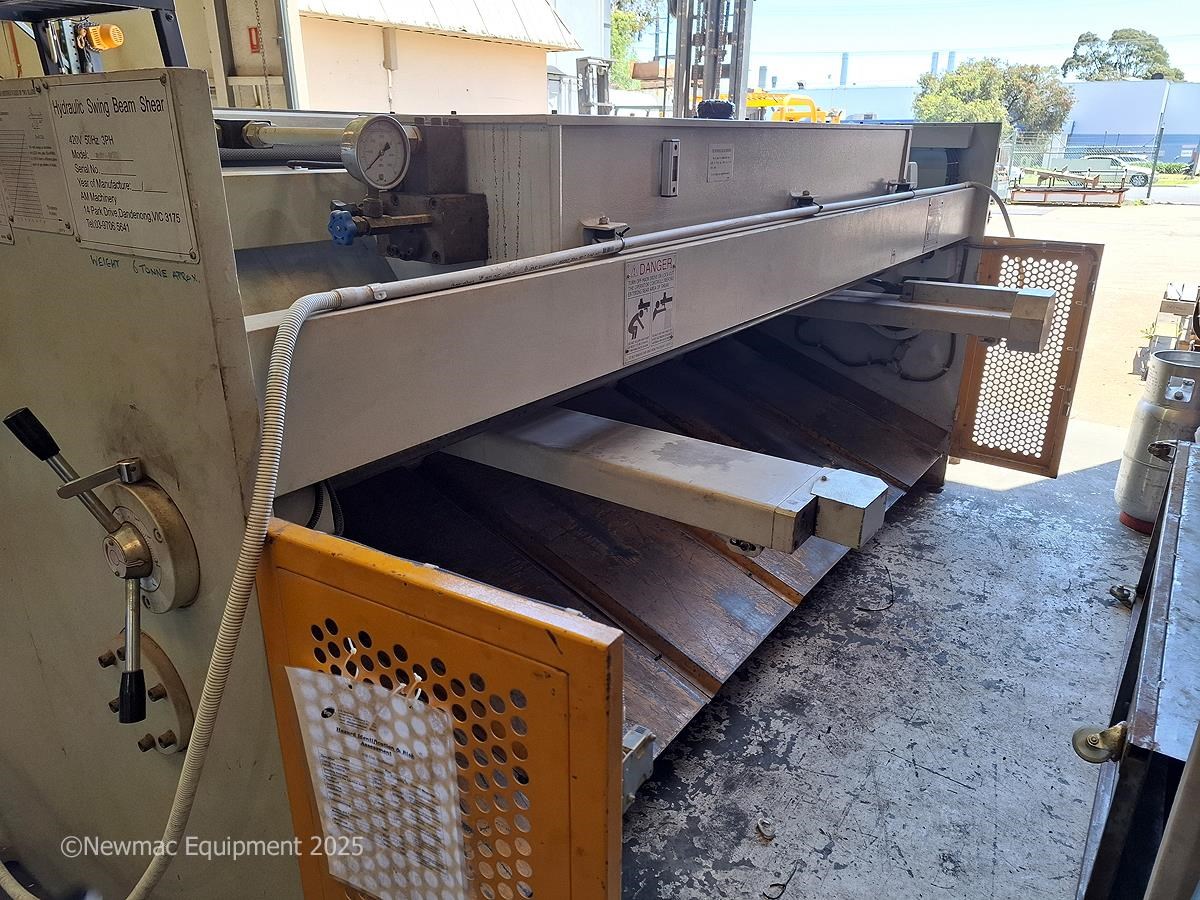

Rear safety guarding as shown in the photos
Front finger guard
Emergency stop button on the main panel & the foot pedal
Hydraulic pressure gauge for monitoring system pressure
Condition
The machine has been checked and operated in our workshop.
All major functions run.
Included
Motorised NC backgauge
Foot-pedal
Rear guarding
We have had this guillotine running & all works well
This guillotine is in our warehouse so please feel free to call us or pop in to inspect the machine at your convenience.
We are always interested in purchasing metalworking machinery, if you have machines surplus to requirements or you are closing down, please feel free to contact us here at Newmac Equipment.
We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.
